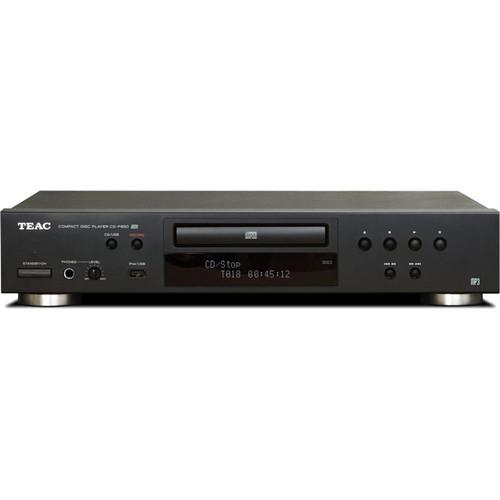

User Manual for Teac CD Player with USB and iPod Digital Interface Click to enlarge the picture
Contents of the user manual for the Teac CD Player with USB and
- Product category: CD Players & Changers Teac
- Brand: Teac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teac CD Players & Changers
|
User manual for the Teac CD Player with USB and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teac product will considerably shorten its lifespan!
|
Product description The Teac CD Player with USB and iPod Digital Interface is a full-size player that supports playback of CD, CD-R/RW, and MP3 discs. The CD-P650 offers an ideal way to listen to and record your favorite music tracks in digital format. It also features a front-panel USB port and optional iPod cradle so you can connect your iPod and conveniently charges your iPod or iPhone even during playback. The unit employs a 1-bit D/A converter with 8 times oversampling to make your audio files sound clearer, and it also offers both analog and digital optical output for versatile compatibility with your setup. Convenient features are a repeat, shuffle and 32-track program play. The front panel headphone jack lets you listen privately and adjust the volume levels. With a fully functional remote control, you can control everything either manually or using the user-friendly system remote. Featuring a classically styled design and black finish, the CD-P650 can blend effortlessly into any space. For an affordable CD player that offers audio fidelity, several file format options and a way to connect, charge and play your mP3 player, the CD-P650 makes a smart choice. - Supports CD, CD-R/RW and MP3 Disc, USB and iPod
- USB port for iPod digital interface and USB memory recording/playback
- Lossless digital audio connection from iPod via USB cable
- iPod/iPhone charging while playback
- MP3 recording from CD to USB memory device
- MP3 playback from USB memory device
- Compatible with most MP3 players and USB flash memory
- Burr Brown 24-bit/192kHz sampling, advanced segment audio stereo D/A converter
- Extended Mode lets you control your iPod using the CD-P650 with song information display
- Repeat (One, All, A-B), Shuffle, 32-track program play
- Multi-function fluorescent display
- 1/4" headphone jack with level control
- Fully functional remote control included
- Optional iPod cradle (Teac DS-7)
UPC: 043774026128 In the Box Teac CD Player with USB and iPod Digital Interface Remote Control Unit (RC-1270) 2 x AA Batteries RCA Cable Remote Control Connection Cord Owner's Manual Warranty Card 1-Year Parts and Labor Limited Warranty User Manual PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Teac CD Player with USB and iPod Digital Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeac CD-P650 Specs | Type | Desktop | | Pickup | 3-beam, semiconductor laser | | Compatible Discs | CD, CD-R, CD-RW, MP3 | | Supported Bit/Sample Rates | 24-bit/192kHz | | Digital Filter | 8-times oversampling | | Frequency Response | 20-20kHz (+/12 dB) | | Signal-to-Noise Ratio | More than 100 dB | | THD + N | Less than 0.005% (1kHz) | | Analog Output | 2.0 Vrms (RCA) | | USB | (Playback)
Frequency Response: 20 Hz to 20,000 Hz (±2 dB)
Signal-to-Noise Ratio: more than 85 dB | | Compatibility | iPod (5th generation)
iPod Classic
iPod Nano (1st, 2nd, 3rd, 4th, 5th generation)
iPod Touch (1st, 2nd, 3rd generation)
iPhone 3G, 3GS | | | | Inputs | None | | Outputs | Digital Audio Out (TOS-link Optical) x 1
Analog Audio Out (RCA, Gold-plated) x 1
Headphone 1/4" (Front) x 1 | | Ports | USB (Front) x 1
Remote Control Connections x 2 | | | | Finish | Black | | Remote Control | Included | | Power Requirements | 120V AC 60 Hz | | Power Consumption | 25W | | Temperature | Operating: 41 to 95° F (5 to 35° C)
Storage: -4 to 131° F (-20 to 55° C) | | Humidity | .5 to 85° (no condensation) | | Dimensions (HxWxD) | 3.4 x 17.1 x 11.25" (85 x 435 x 285 mm) | | Weight | 8.8 lb (4 kg) | | | | Package Weight | 11.6 lb | | Box Dimensions (LxWxH) | 20.75 x 14.0 x 6.8" |
