Product description The silver HA-501 Full Analog Dual-Monoaural Headphone Amplifier from Teac is a Class-A amplifier that delivers superior sound quality. Featuring a sleek and modern look with a rugged but compact design, the amplifier supplies regular headphone listeners with quality sound.Pair it with your favorite headphones the same way you would a normal amplifier with favored speakers and take advantage of DC Servo Technology, Switchable Damping Factors, High Output Power, and a large Toroidal-Core Power Transformer, and relax to your favorite music or radio broadcast. - Discrete Class-A Amplifier Active with DC Servo Technology for Decreased Distortion
- This amplifier utilizes Active DC Servo Technology in order to eliminate Offset Electrical Potential.
- Dual Monaural Design that Eliminates Interference between Left and Right Channels
- In regards to the circuit design, each channel is completely designed on an individual basis to avoid signal interface to/from another. This contribution eliminates cross-talk, crucial headphone listening.
- MUSES8920 Op-Amps Chip-Sets for High-End Quality
- MUSES8920 Op-Amp Chip-Sets are designed for high-end audio. Employed individually on the Left and Right channels, they help achieve superior sound. This op-amp performs superb IV-conversion.
- A Large Toroidal-Core Power Transformer
- An over-sized Toroidal-core power transformer is also employed to supply stable current to the every part of the circuit.
- Damping Factor Selector to Optimize Headphone Characteristics
- Each pair of headphones has its Damping Factor, a resisting force against non-intentional movement of the diaphragm, moving air forward and backward as sound. Since headphones' diaphragms are activated by a very small current, the damping factor increases, the sound is lean and crisp, and has a close relationship with headphones' impedance. Therefore, selecting the right Damping Factor is crucial in order for your headphones to perform at their peak potential. The HA-501 Amplifier provides 5 selectable Damping Factors, so users have the best suited signal for multiple headphones.
- Total 2,800mA of Output Power Drives Your High Impedance Headphones
- The HA-501 Amplifier achieves 1,400mW output power per channel at 32Ω impedance. The device delivers not only enough power to drive standard headphones with an impedance range from 80 to 250Ω, but also high-class 600Ω hi-fi headphones.
- Robust Aluminum Body with a Classy Appearance
- The HA-501 Amplifier has a small footprint and classy appearance, and is constructed with aluminum panels to create an authentic but modern looking hi-fi component. A robust metal construction helps eliminate vibrations that may affect the sound quality. The bottom and sidewalls are formed with a steel chassis, aluminum for the front panel and the rear panel out of steel. In order to ensure its rugged design, each panel is connected with a beam that runs through the center of the unit.
- Well-Designed User Interface

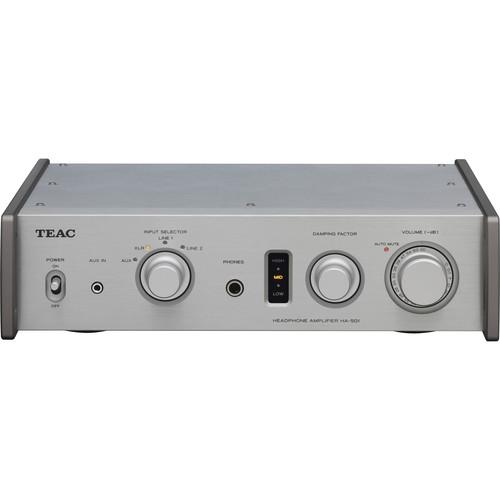

- Another feature of the HA-501 Amplifier is its user-friendly design. The firm-torqued volume control allows users to adjust the volume level with ease and precision while the toggle-type power switch assures On/Off operation at a glance. Auto-muting function protects your ears from unexpected loud sounds when switching between headphones with different levels of impedance.
- Professional-Grade Input/Output Connectors

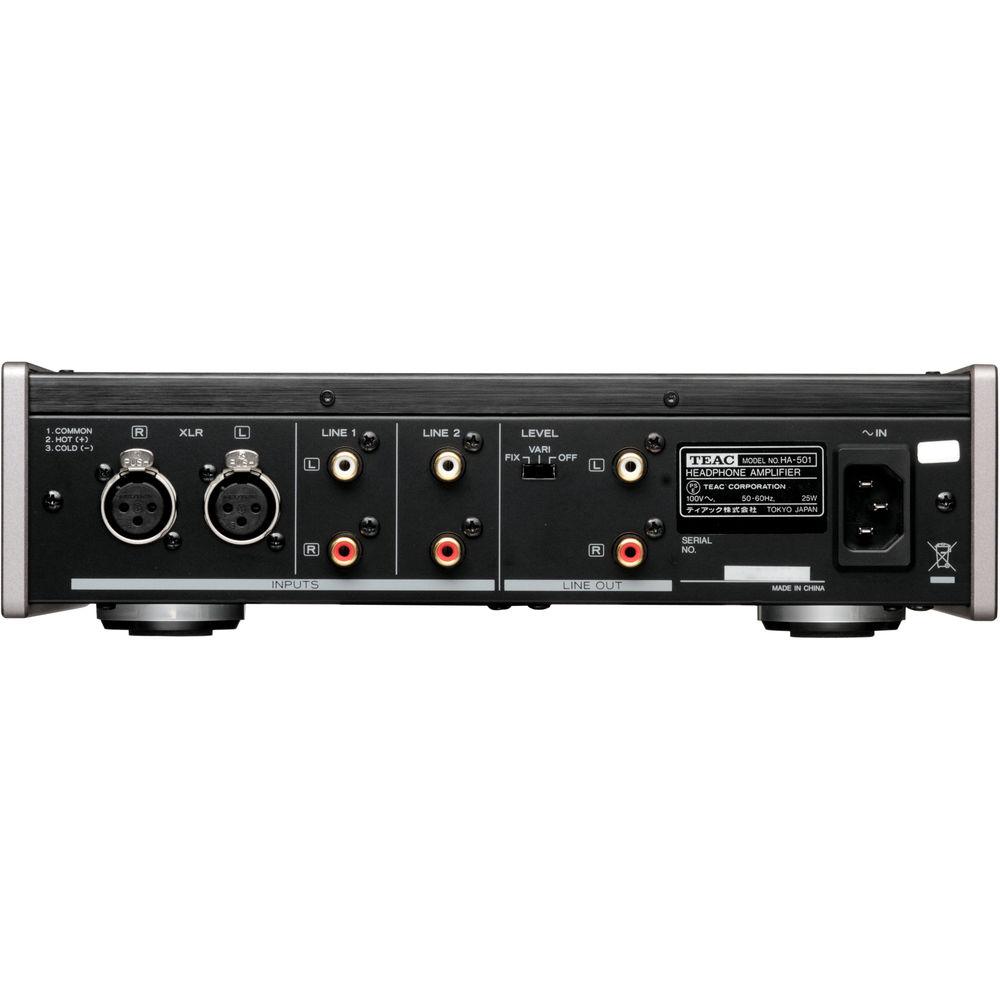

- On the rear panel, a pair of Neutrik brand XLR input connectors allow users to connect high-end components or professional audio equipment, while wider-pitch RCA pin jacks allow user to connect large-shaft RCA pin cables from other markets. A detachable type 3-polar power inlet socket is also available. On the front, a 3.5mm stereo mini-jack allows users to connect a portable music player, such as an iPod, conveniently.
- Switchable Output Mode for Flexibility
- Line output level from the rear panel can be switched amongst Fixed Level, Variable Level (coupled with volume), and Off.
- Additional Features

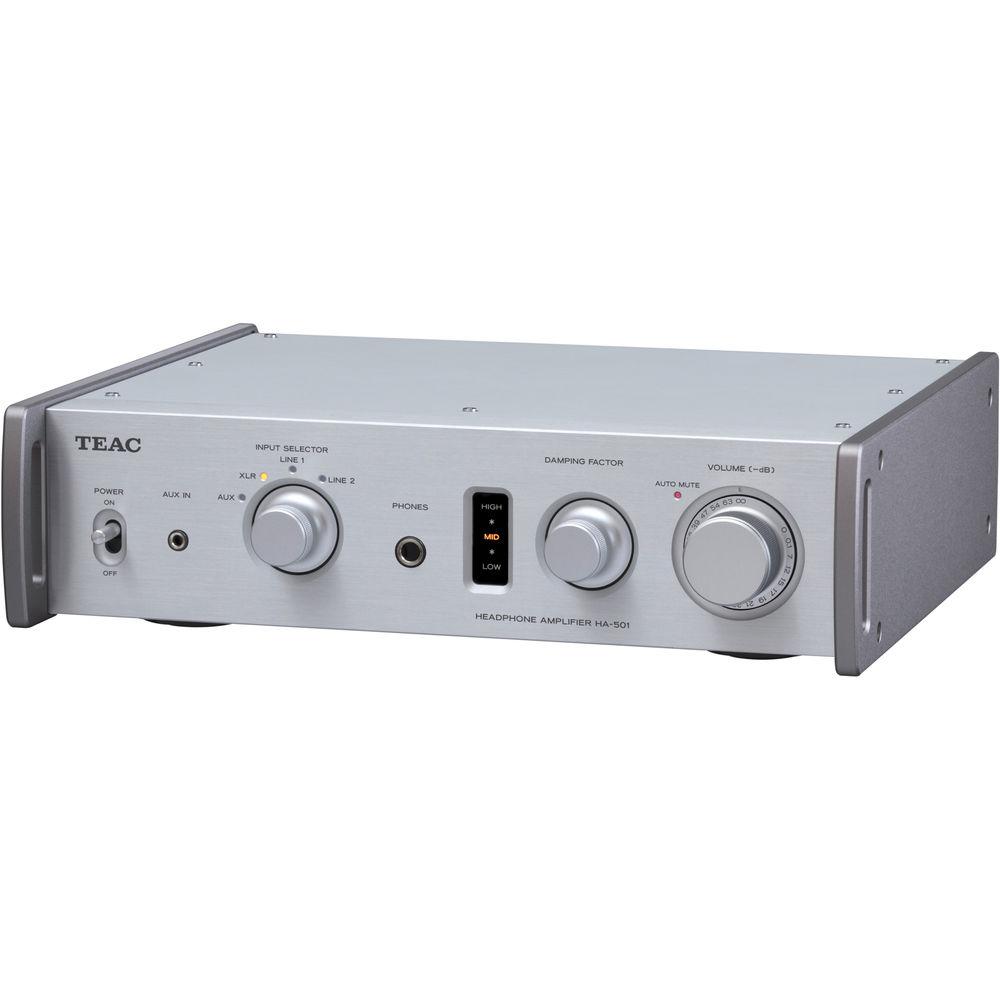

- The amplifier features a full-metal jacket with aluminum panels for front top and sides. Small footprint fits your desktop. It also features precisely machined aluminum knobs (Volume, Input Selector, Damping Factor Selector).
In the Box Teac HA-501 Full Analog Dual-Monoaural Headphone Amplifier (Silver) AC Cable AC Plug Adapter (3P-2P) Limited 1-Year Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Teac HA-501 Full Analog Dual-Monoaural Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeac HA-501-S Specs | | | Balanced Input | 1 pair, Rear, Neutrik XLR connectors
Connector: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Impedance: 20 kΩ
Sensitivity: 2 Vrms | | Line Input | Rear, Line1, Line2
Connectors: RCA pin jack (Gold plated)
Impedance: 10 kΩ
Sensitivity: 1 Vrms | | Auxiliary Input | Front, AUX
Connectors: 1/8" (3.5 mm) stereo mini jack
Impedance: 13 kΩ
Sensitivity: 0.5 Vrms | | | | Damping Factor | 5, selectable
High
At 32 Ω (Headphone Impedance): 76
At 64 Ω (Headphone Impedance): 98
Mid
At 120 Ω (Headphone Impedance): 97
At 300 Ω (Headphone Impedance): 115
Low
At 600 Ω (Headphone Impedance): 118 | | | | Headphone Output | Front
Connector: 1/4" (6.35 mm) stereo jack
Supported Headphone Impedance: 16 to 600 Ω | | Output Level | Maximum: 1,400 mW + 1,400 mW (at 32 Ω)
135 mW + 135 mW (at 600 Ω)
Rated: 600 mW + 600 mW (at 32 Ω)
34 mW + 34 mW (at 600 Ω) | | THD | 0.002% (Input 1 V, Output 1 V, at 32 Ω)
0.01% (Input 1 V, Output 600 mW, at 32 Ω) | | S/N Ratio | 110 dB (RCA input, 2 Vrms 1 kHz, A-weighted) | | Frequency Response | 2 Hz to 100 kHz (+0 dB / -3 dB)
10 Hz to 100 kHz (± 3 dB) | | Line Output | Rear
Connectors: RCA pin jack (Gold plated)
Impedance: 100 Ω
Output Level: 316 mV
Output Level Selector: Fixed, Variable, Off | | | | Operating Power | 120 VAC, 60 Hz (US/Canada)
230 VAC, 50 Hz (UK/Europe) | | Power Consumption | 22 W
Standby: 0 W | | Operating Temperature | +41 to +95˚F (+5 to +35˚C) | | Operating Humidity | 5 to 85% (no condensation) | | Storage Temperature | -4 to +131˚F (-20 to +55˚C) | | Overall Dimensions (WxHxD) | 11.4 x 3.2 x 9.6" (290.0 x 81.2 x 244.0 mm) | | Net Weight | 9.0 lb (4.1 kg) |
