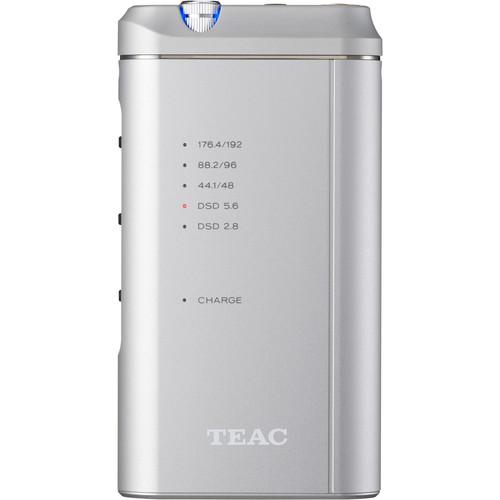

Product description The silver Teac HA-P5-S is a portable high-resolution USB DAC/headphone amplifier designed to provide premium audio reproduction and convenient mobility for audiophiles and music connoisseurs in planes, trains, automobiles, offices, and more. It supports DSD sample rates up to 5.6 MHz, PCM resolutions up to 24-bit/192 kHz, and iOS, Android, Mac, and Windows systems.A Burr-Brown PCM1795 D/A converter and dual high-precision master clocks enable a wide, accurate frequency response of 10 Hz to 100 kHz. The low-distortion Burr-Brown op-amps feed the 3.5mm TRRS headphone jack, which is compliant with ground-separate, 4-pole headphones and standard 3-pole models. The HAP-P5-S can accept signal via its 3.5mm, USB Type-A, or USB Micro-B inputs, and offers side-mounted switches for high or low gain, input selection, and USB charging. It is powered via an internal rechargeable Li-ion battery. - Aluminum body provides low mass, durability, and shielding against noise
- LED indicators for sample rate and battery and charging status
- From the headphone amplifier section to the 4-pole headphone jack, each ground of the left and right channel is completely separated from the other
- Class-AB design includes a push-pull circuit and Burr-Brown OPA1602 and OPA1652 SoundPlus op-amps for low distortion
- Circuit layout separates digital and analog sections to eliminate distortions produced by interference noise
- Two high-precision crystal master clocks for 44.1 kHz (22.5792 MHz) and 48 kHz (24.576 MHz) systems, allow precise synchronization with the sampling frequency of the incoming digital audio signal
- Asynchronous transfer mode reduces jitter by overriding less-accurate clock signal sent from a computer or smartphone
- Fixed-level 3.5mm TRS output for connection to an external amplifier
- Variable-level 3.5mm TRRS output supports ground-separate or standard headphones
UPC: 043774032310 In the Box Teac HA-P5-S Portable High-Resolution USB DAC with Headphone Amplifier (Silver) USB Micro-B to USB Type-A Cable DC Plug to USB Type-A Cable RCA to 3.5mm Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teac HA-P5-S Portable High-Resolution USB DAC with Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeac HA-P5 Specs | System Requirements | Mac OS X Lion (10.7), Mountain Lion (10.8), Mavericks (10.9), Yosemite (10.10), El Capitan (10.11), or macOS Sierra (10.12)
Windows 7, 8, 8.1, or 10
iOS 6, 7, 8, 9, or 10
Android 6.0 Marshmallow or 7.0 Nougat | | Number of Channels | 2 | | Inputs | 1 x 1/8" (3.5 mm) stereo mini-jack (compatible with coaxial/optical digital inputs)
1 x USB Micro-B (compatible with USB 2.0)
1 x USB Type-A (compatible with USB 2.0) | | Outputs | 1 x 1/8" (3.5 mm) TRS stereo mini-jack (fixed level)
1 x 1/8" (3.5 mm) TRRS stereo mini-jack (compatible with ground-separate drive) | | Maximum Output Power | 160 mW + 160 mW (32-Ohm load, 1 kHz, 10% THD, JEITA)
60 mW + 60 mW (300-Ohm load, 1 kHz, 10% THD, JEITA)
30 mW + 30 mW (600-Ohm load, 1 kHz, 10% THD, JEITA) | | Headphone Impedance Range | 16 to 600 Ohms | | Sensitivity | 2 V (RMS) | | Signal to Noise Ratio | 110 dB | | Function Controls | Volume/power knob
Gain switch
Input switch
USB Charge switch | | Frequency Response | 10 Hz to 100 kHz (line input) | | Supported Resolutions & Formats | Up to 5.6 MHz (DSD)
Up to 24-bit/192 kHz (PCM) | | Enclosure Material | Aluminum | | Power Requirement | Built-in Li-ion rechargeable battery | | Battery Life | Approximately 5 hours (iOS device connection) | | Dimensions (W x H x D) | 2.6 x 4.8 x 0.9" / 65.4 x 121.4 x 21.6 mm | | Weight | 6.4 oz / 182 g | | Specialties | Burr-Brown PCM1795 D/A converter
Burr-Brown OPA1602 and OPA1652 SoundPlus op-amps | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 7.3 x 5.2 x 2.8" |
