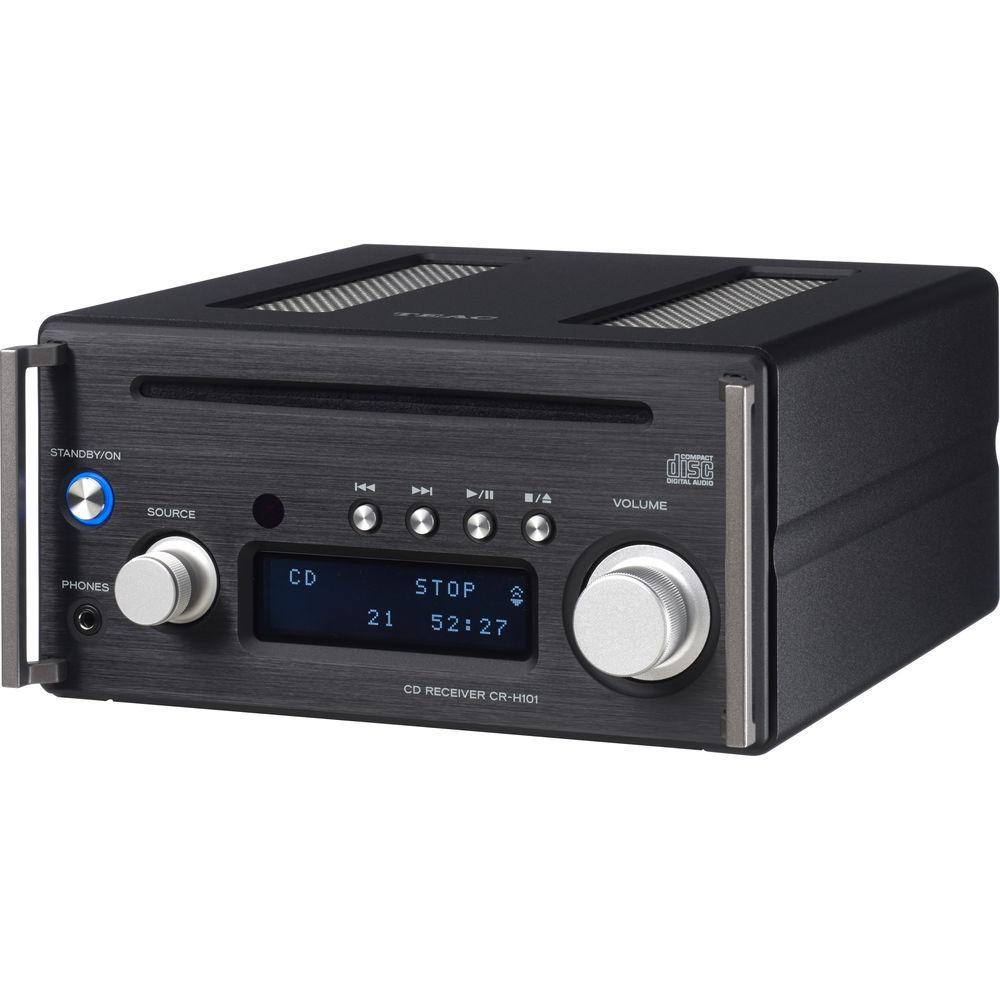

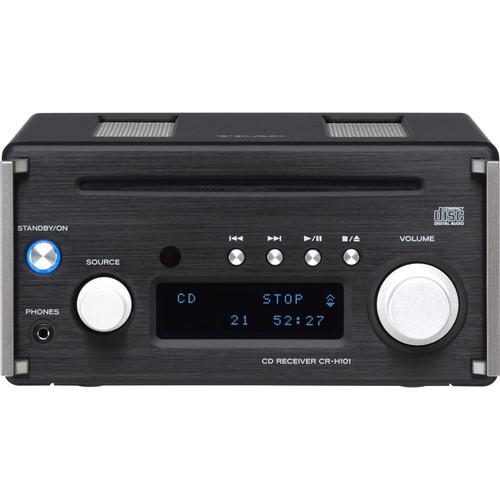

Product description The black High-Resolution CD Receiver with FM Tuner from TEAC supports high-resolution audio streaming from computer (Windows/Mac), tablet, or smartphone up to 192 kHz/24-bit, thanks to a USB port on the back panel. A built-in PLL Synthesized FM Tuner supports 20-station presets for quick access to your favorite station. The HR loudness circuit allows you to enjoy powerful low frequencies and clear high frequencies even during playback at low and medium volume levels. - Slot-In CD Player Supports MP3 and WMA
-
- A slim slot-in drive is employed to support conventional audio CD and MP3/WMA files on CD-R/RW discs, while an auto play function lets a CD play back automatically
- Bluetooth aptX Codec
-
- In addition to the SBC codec, aptX and AAC codecs are supported for high-quality audio
- You can enjoy wireless streaming of high-quality audio playback from compatible smartphones and tablets
- Built-In FM Tuner and Audio Inputs
-
- A built-in PLL synthesized FM Tuner supports 20-station presets for quick access to your favorite station
- Optical and analog audio inputs allow users to connect other audio/visual equipment, including a TV
- Compact Class-D Amplifier
-
- The Class-D TPA3118 Amplifier from Texas Instruments enables both the compact size and the power to playback high-resolution audio sources without data loss
- Though compact, it still delivers a 26W+26W power output and clear audio quality
- High-Precision D/A Converter
-
- Features a high-performance PCM1795 D/A Burr Brown converter chip made by Texas Instruments
- A high S/N ratio and a remarkable distortion rate allows the receiver to faithfully process high-resolution audio sources, which have data quantities that exceed those of CDs, and bring out the wonderful nuances of the music
- Up-Conversion of USB Streaming, CD, and Bluetooth Sources to Hi-Res Equivalents
-
- The built-in up-conversion function can oversample (2x) signals with sampling frequencies less than 96 kHz, which allows you to enjoy USB streaming, CD, and Bluetooth with higher-quality audio
- HR Loudness Circuit
-
- Using DSP processing, the HR loudness circuit provides optimal speaker output through the speaker terminals
- You can enjoy powerful low frequencies and clear high frequencies even during playback at low and medium volume levels
- This HR loudness circuit is not limited just to digital sources, which it can handle with resolutions up to 192 kHz/24-bit, but it can be applied to any input source so that its effect can be enjoyed
- Radio and other external analog input signals are converted to 96 kHz/24-bit digital signals once by the high-precision A/D converter and then processed by the HR circuit
- USB Interface Supports Asynchronous Transfer Mode
-
- The USB interface supports 192 kHz/24-bit asynchronous transmission, which offers excellent suppression of jitter (time deviation that occurs when transmitting digital signals)
- This allows it to transmit more high-resolution audio source data accurately to the DAC
- Dual Clock Realizes Accurate D/A Conversion
-
- Separate dedicated crystal oscillators are used for 44.1 kHz and 48 kHz multiples of the clock, which is crucial to jitter reduction
- When playing back high-resolution audio sources, the original sound is reproduced faithfully by suppressing the impact of jitter using this high-precision built in clock
- Easy-to-Use HR Audio Player
-
- TEAC HR Audio Player is a freely downloadable playback application available for Windows and Mac OS that allows you to enjoy the playback of high-resolution files with ease
- With support for WAV, FLAC, MP3, AIFF, and ALAC formats, it also has an expansion to RAM function that enables high-quality playback without burdening the CPU
- This allows you to enjoy high-resolution sources with even higher audio quality
- Solid Aluminum Body and Design
-
- With a width of about 7.2” and a height of about 3.7”, the compact body has a full-metal enclosure using aluminum that is about 0.1” on the top, front, left, and right sides
- The top panel has a grille reminiscent of those found on high-end power amplifiers, and the solid body has vibration resistance, minimizing the impact of vibrations on audio quality
- Aluminum body allows horizontal or vertical settings
- Machined Aluminum Knobs
-
- Cut aluminum knobs that feature ridges like those found on professional audio equipment are used for the large volume and source selection knobs on the front
- The cool-feel characteristic of metal provides a sense of satisfaction every time they are touched
- Subwoofer Pre-Out for 2.1 Channel System
-

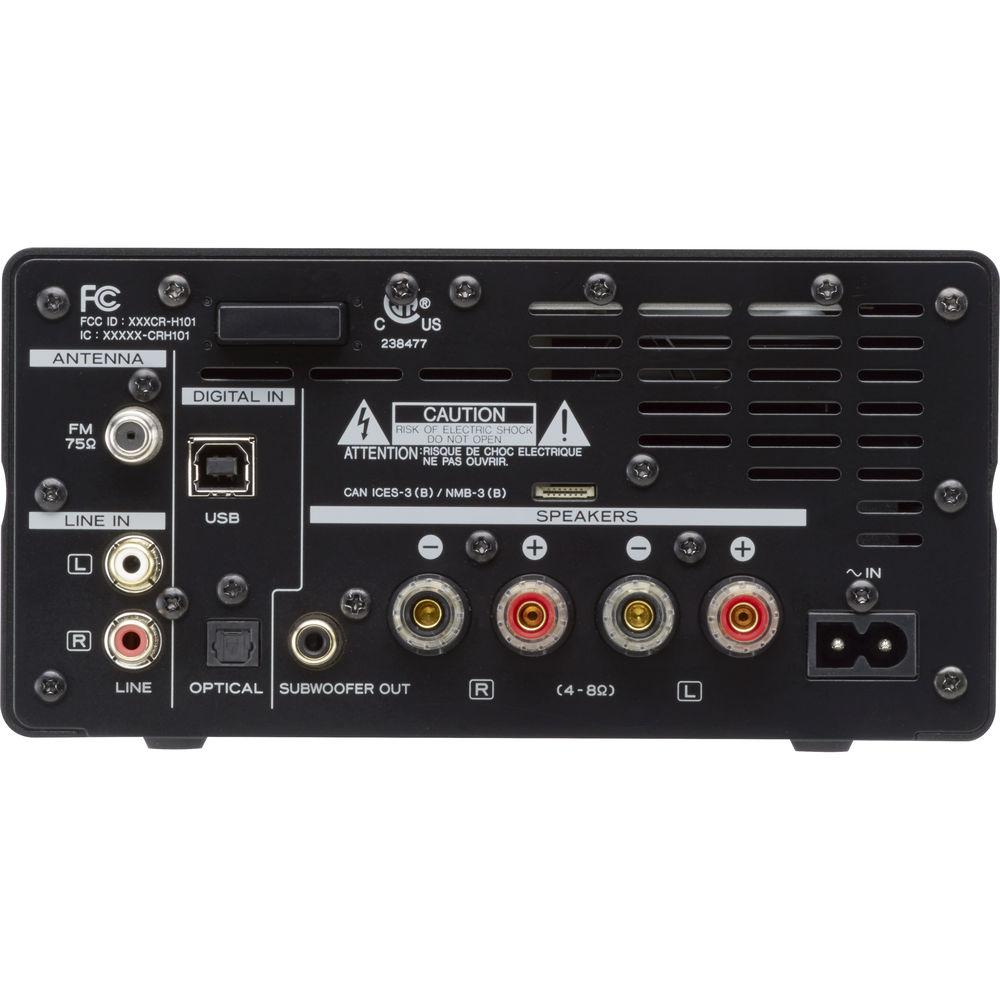

- A subwoofer pre-out on the back panel permits additional bass sound by connecting a powered subwoofer unit, as an optical digital input allows users to expand 2.1 channel home theater system by receiving digital audio signal (stereo PCM 96 kHz or lower) from a TV/STB
- Versatile Clock Functions
-

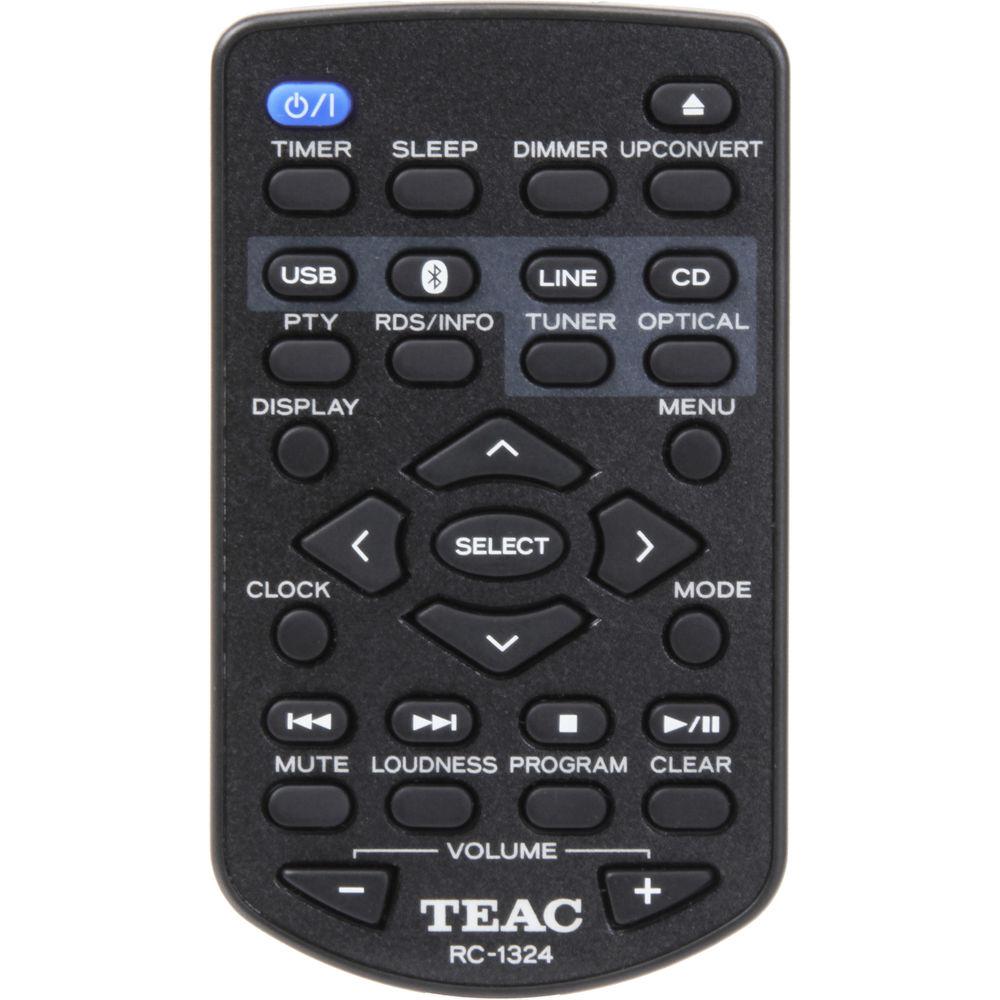

- The remote control clock button can be pressed to show the current time
- In addition, the timer function can be used to turn the CD player or FM tuner ON/OFF at set times
- General
-
- Compact CD Receiver for desktop
- Gold-plated screw-type speaker terminals
- Cooling-fan-less design
- RoHS complied
UPC: 043774031894 In the Box Teac High-Resolution CD Receiver with FM Tuner (Black) Power Cord Remote Control (RC-1324) 2 x AAA Battery FM Antenna Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teac High-Resolution CD Receiver with FM Tuner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeac CR-H101 Specs | | | D/A Converter | Burr-Brown PCM1795 | | Up-Conversion | 2x (up to 192 kHz for Digital Source) | | Clock | Dual (for 44.1 kHz system, and 48 kHz system) | | | | Type | Slot-in CD player (auto-playback supported) | | Supported Media | CD-DA, CD-R, CD-RW
Format: ISO9660 LEVEL 1/2/JOLIET | | Supported File Formats | PCM: 44.1 kHz, 16-bit
MP3: 16k / 22.05k / 24k / 32k / 44.1k / 48 kHz, 32k to 320 KB/s and VBR
WMA: 8k / 11.025k / 16k / 22.05k / 32k / 44.1k / 48 kHz, 32k to 320 KB/s and VBR (DRM not supported) | | Max Number of Files | 250 (including folders) | | Max Number of Folders | 99 | | | | Type | PLL Synthesized | | Band | FM: 87.5 to 108.0 MHz | | Number of Presets | 20 stations | | | | Version | 3.0, Class 2 | | Supported Profiles | A2DP | | Supported Codecs | aptX, SBC, AAC | | Supported OS | Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10
OS X Lion (10.7), OS X Mountain Lion (10.8), OS X Mavericks (10.9), OS X Yosemite (10.10), OS X El Capitan (10.11.1) | | | | Terminals | Screw-type | | Maximum Output Power | 26 W + 26 W (4 ohms, 1 kHz, THD 10% JEITA) | | Rated Output Power | 20 W + 20 W (4 ohms, 1 kHz, THD 1% JEITA) | | | | USB | Connector: USB B-type (USB2.0 compatible)
Transfer Mode: Asynchronous Transfer Mode
Supported Devices: PC (Window, Macintosh), iOS device, Android
Supported File Format: PCM
PCM: 44.1k / 48k / 88.2k / 96k / 176.4k / 192 kHz, 16/24-bit | | Digital Optical Out | Connector: 1 x TOSLINK
Supported File Format: PCM
PCM: 44.1k / 48k / 88.2k / 96 kHz, 16/24-bit
Input Level: -24 to -14.5 dBm peak | | Analog Audio Input | 1 x RCA Pin Jack pair | | Connector | 1 x 1/8" (3.5 mm) Stereo Mini Jack | | Maximum Output | 80 mW + 80 mW (32 ohms loaded, 1 kHz) | | Total Harmonic Distortion | 0.08% | | Subwoofer Output | Pre-out: 1 x RCA Pin Jack | | | | Frequency Response | 20 to 45,000 Hz (-5 dB) | | S/N Ratio | 90 dB (LINE, IHF-A/LPF 20 kHz, 1 kHz 2 V Input) | | THD | 0.02 % (1 kHz, 4 ohms, 1 W) | | | | Operating Power | 120 VAC, 60 Hz | | Power Consumption | 21 W | | Dimensions (W x H x D) | 7.2 x 3.7 x 8.7" (18 x 9.3 x 22 cm) | | Weight | 4.9 lb (2.2 kg) | | | | Package Weight | 6.9 lb | | Box Dimensions (LxWxH) | 12.8 x 9.5 x 6.9" |
