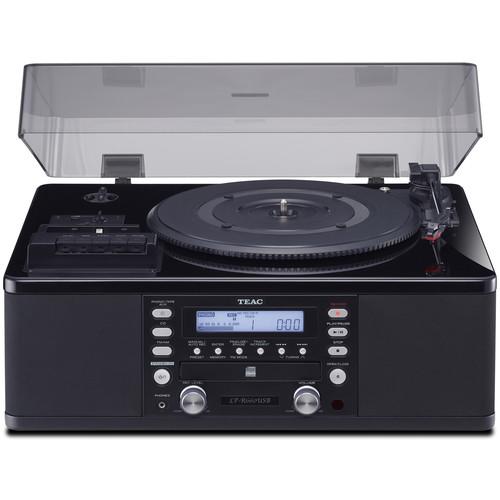

User Manual for Teac LP-R660USB-PB Turntable with CD Recorder, Cassette Deck, & AM FM Tuner Click to enlarge the picture
Contents of the user manual for the Teac LP-R660USB-PB Turntable with CD Recorder,
- Product category: Turntables Teac
- Brand: Teac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teac Turntables
 |
User manual for the Teac LP-R660USB-PB Turntable with CD Recorder, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teac product will considerably shorten its lifespan!
|

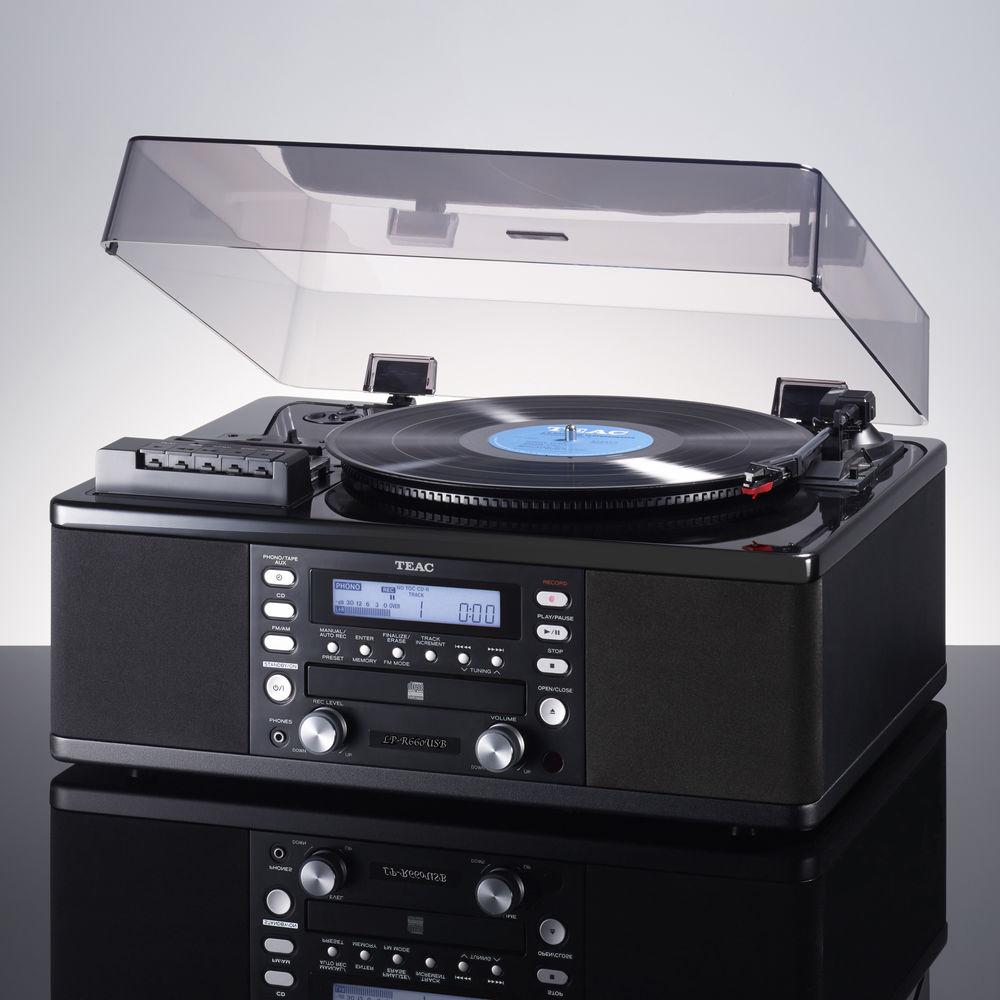

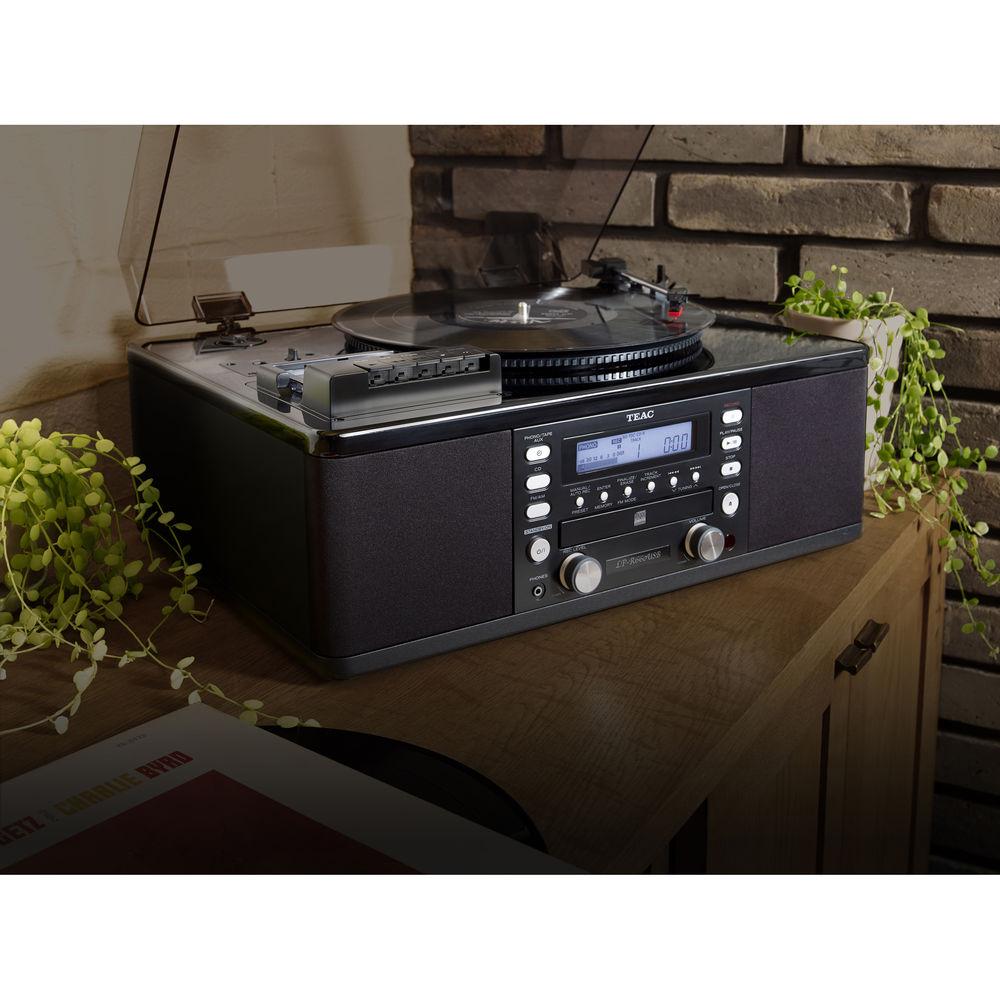

Product description Enjoy your music in nearly all its forms with the Teac LP-R660USB-PB Turntable. It will play your records at 33 1/3, 45, and 78 rpm speeds, as well as audio cassettes, CDs, and AM/FM radio. The turntable has a stereo RCA output if you want to play it through a separate home audio system, plus a USB output for preserving your music digitally on your computer. It will also allow you to record from a cassette, a record, the tuner, or another device via the RCA input to a CD-R or CD-RW. It includes a USB cable and a remote control for added convenience. - Record from Records, Cassettes, Radio, and the RCA Input to CD
- The LP-R660-PB incorporates a CD recorder for burning from any other built-in source or from your external device plugged into the RCA input.
- Automatic or Manual CD Track Number Setting
- The Auto Track Increment function divides side-A or side-B into individual tracks by checking a track gap on vinyl records and cassette tapes, and user-selectable threshold levels define correct track gaps even on noisy records. The Manual Track Increment function allows you to divide tracks manually.
- Record to Your Computer via USB
- In addition to recording to CD, the LP-R660-PB will let you record the same variety of sources to your computer via the included USB cable. Level control volume allows you to adjust and enhance the recording level, which varies among sources like old vinyl records and tapes. Once you record your analog libraries to your computer, Teac Hi-Res Editor software, available for free for Windows and Mac computers at the Teac website, allows you to divide one single digital audio file (side-A or side-B) into individual tracks by checking wave forms, and convert the file format for playback devices like your smartphone or portable audio player.
- Dual 3.5W Amplifier and Music-Oriented Stereo Speakers
- With the speaker drivers settled in individual boxes with bass-flex ports to boost low frequencies, the LP-R660-PB is well suited for listening to nearly all your audio media.
- RCA Input and Output
- The onboard RCA input and output terminals let you connect additional audio devices.
- 3-Speed Analog Turntable with Auto-Return Feature
- The auto-return feature automatically returns the tonearm when the record has finished playing, even for 78 rpm SP records.
- Integrated LCD Display
- The backlit LCD displays the pertinent information for CD recording, including a level meter.
- Dedicated Buttons for Frequently Used Functions
- Operation keys on both the main unit and the remote control are designed to be easy to understand, and navigate your step-by-step operation for CD recording, from setting to finalizing.
- Included Remote Control
- A remote control is included, allowing you to control functions from a distance.
- Spare Styli Available Separately.
- Replacement styli are available separately and are designed to be easy to install.
- Additional Features
-
- CD record level control for analog source recording
- Repeat (1/all), shuffle, and 32-track program CD playback
- MP3/WMA/PCM recording to computer
- Play, pause, FWD, and REW cassette operation
- PLL-synthesized AM/FM stereo tuner
- Volume control
UPC: 043774033195 In the Box Teac LP-R660USB-PB Turntable with CD Recorder, Cassette Deck, & AM/FM Tuner Remote Control USB Cable Limited 90-Day Warranty on Heads and Disk Drive Limited 1-Year Warranty on Other Parts Table of Contents
|
Upload User Manual
Have you got an user manual for the Teac LP-R660USB-PB Turntable with CD Recorder, Cassette Deck, & AM FM Tuner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeac LP-R660USB Specs | | | Output Power | 2 x 3.5 W | | Drivers | 2x 2.75" (6.99 cm) full-range cones | | | | Media Type Supported | Recording: CD-R/CD-RW | | Tray Type | Drawer-type | | | | Tape Position | High/normal | | | | Input | 1 x stereo RCA | | Outputs | 1 x USB Type-B
1 x stereo RCA
1 x 1/8" (3.5 mm) headphone | | | | OS Support | Windows: 7, 8, 8.1, 10
Mac OS X: Snow Leopard (10.6), Lion (10.7), Mountain Lion (10.8), Mavericks (10.9), Yosemite (10.10), El Capitan (10.11)
macOS Sierra (10.12) | | Power Requirements | 120 VAC, 60 Hz | | Dimensions (W x H x D) | 18.5 x 9.06 x 15.38" (47 x 23 x 39 cm) | | Weight | 24.3 lb (11 kg) | | | | Package Weight | 28.45 lb | | Box Dimensions (LxWxH) | 22.0 x 18.0 x 12.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
