User Manual for Teac LPR-550USB Turntable with CD Recorder Cassette AM FM Tuner Click to enlarge the picture
Contents of the user manual for the Teac LPR-550USB Turntable with CD Recorder
- Product category: Turntables Teac
- Brand: Teac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teac Turntables
 |
User manual for the Teac LPR-550USB Turntable with CD Recorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teac product will considerably shorten its lifespan!
|

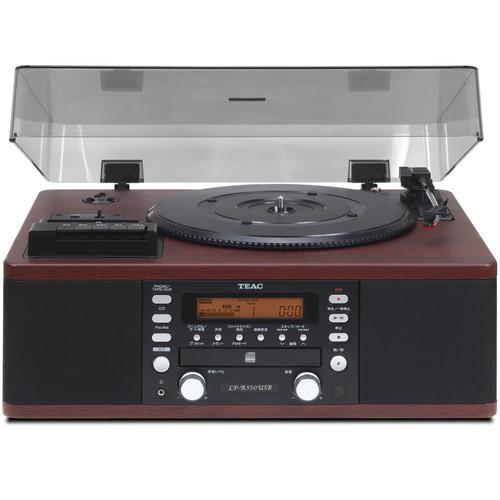

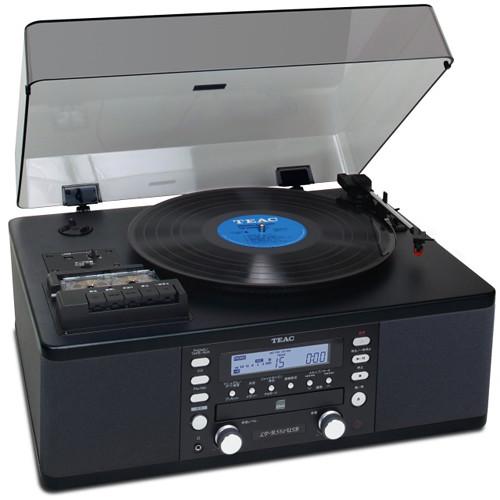

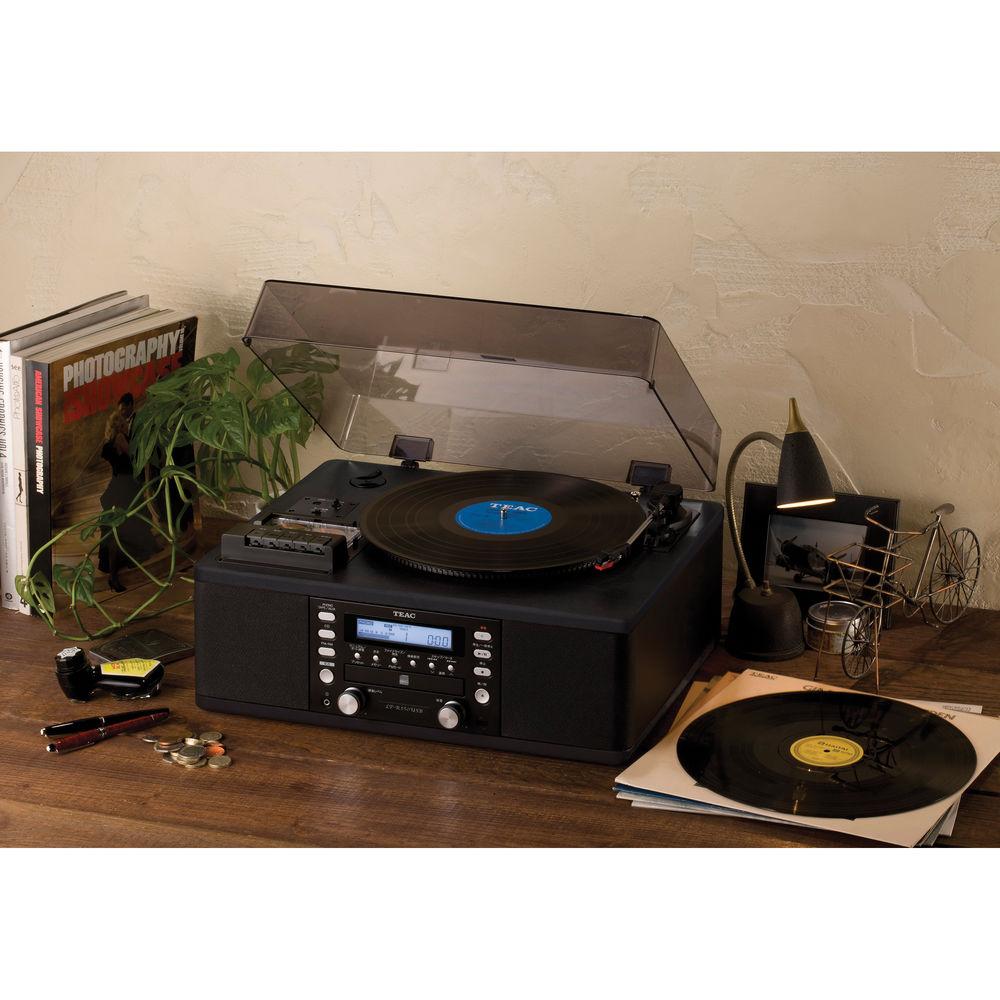

Product description The walnut LPR-550USB Turntable with CD Recorder/Cassette/AM/FM Tuner from TEAC is a complete audio and dubbing system with a turntable, CD player/recorder, cassette player/recorder, computer interface, and AM/FM tuner. Easily transfer your music collection into a digital and portable format by simply dropping your record on the 3-speed turntable, placing a blank audio CD-R or CD-RW in the CD drive, and pressing the record button. A pair of built-in speakers makes it a suitable desktop music system for home or office.The LPR-550USB music system includes a USB output for easily connecting to a computer. You can now record albums, CDs, radio, or cassette to your Mac or Windows software and add files to your music library to bring along anywhere. Moreover, a wireless remote control is included and a headphone output offers you a private listening experience. -
- Facilitates easy recording of records, cassettes, radio, and auxiliary audio input to CD-R/RW, while also allowing you to fine-tune recording levels
- Record analog records, cassettes, CDs, and AM/FM radio to a PC
- The 3.5W + 3.5W amplifier and bass-reflex type stereo speakers are designed for boosting low frequencies, which make it suitable for recording and listening to music
- RCA pin jack input/output terminals for connecting other audio equipment
- The 3-speed analog turntable can play LP, EP and 78 rpm SP records
- The auto-return feature automatically returns the tone arm once the record has finished playing
- Automatic or manual setting of track numbers when recording to a CD

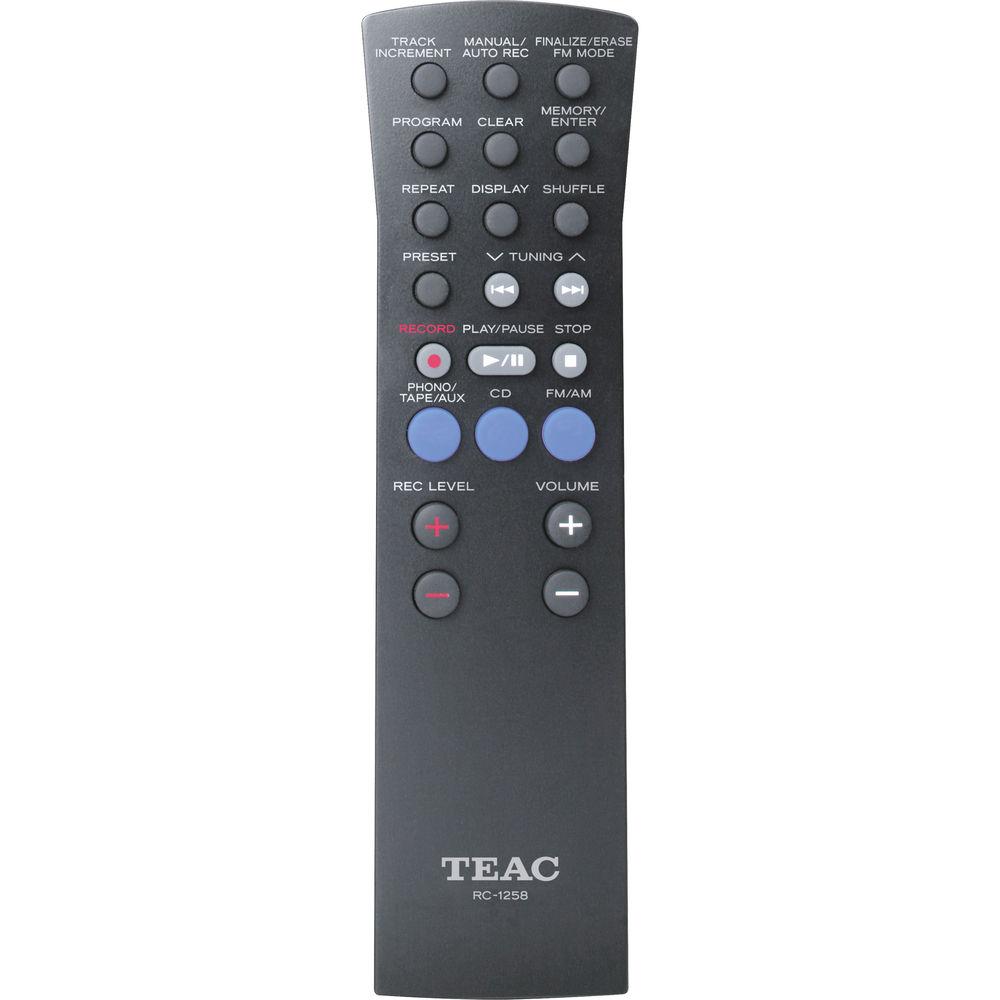

- Remote control provided as a standard to control functions at a distance from the unit
- Bright, easy-to-read LCD display
- Volume Control and Headphone Out
- LCD display with backlight
- Dedicated buttons for frequently used functions ensure ease of use
- Stylus for 33-1/3 and 45 RPM records included
- Stylus for 78 RPM (SPL) sold separately
- CD Recorder Section
- CD-R/RW Recording from phono, tape, tuner, AUX
- Drawer-Type CD recorder
- Auto/Manual track increment
- Record Level Control for analog source recording
- Repeat (1/ALL), Shuffle, 32-track Program Play

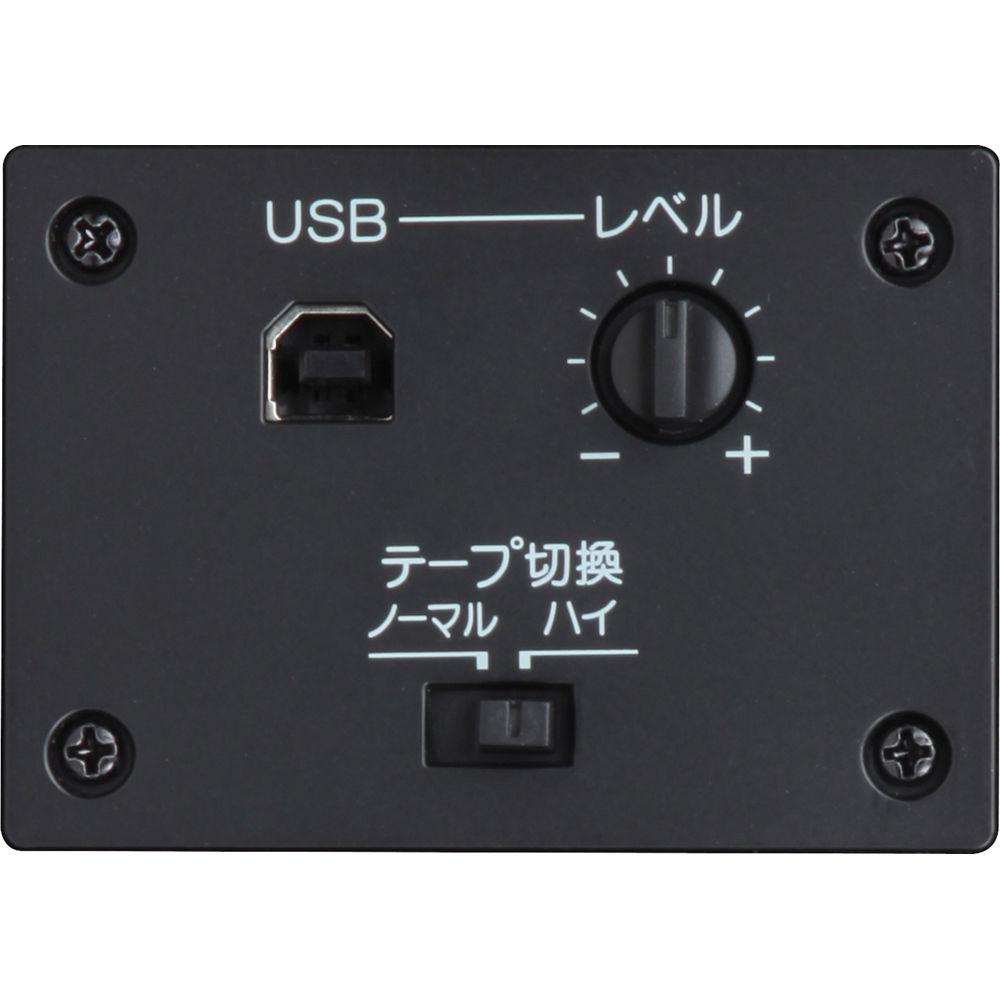

- USB Section
- USB Audio Out from phono, CD, tape, tuner, AUX to PC
- MP3/WMA/PCM recording on PC/Mac
- Turntable Section
- 3-Speed turntable (33-1/3, 45, 78 rpm)
- Auto Return
- Tape Section
- Cassette tape player
- High/Normal tape positions
- Play, Pause, Forward, and Rewind operations
UPC: 043774027651 In the Box Teac LPR-550USB Turntable with CD Recorder/Cassette/AM/FM Tuner (Walnut) Remote Control Unit (RC-1258) STL-103 Stylus Turntable Cover 45 rpm Adapter FM Antenna AM Antenna Stereo RCA Pin Cable USB Cable 2 x AA Battery 2 x Hinge Limited 1-Year Warranty on Labor & Parts Limited 90-Day Warranty on Heads and Disk Drives Table of Contents
|
Upload User Manual
Have you got an user manual for the Teac LPR-550USB Turntable with CD Recorder Cassette AM FM Tuner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeac LP-R550USB Specs | | | Output Power | 3.5 W + 3.5 W | | Frequency Response | 50 Hz to 20 kHz | | Impedance | AUX: (0.5 V) / 20 kOhms | | | | Media Type | CD-RW and CD-R for digital audio (record and playback)
CD (playback only) | | Sampling Frequency | Recording: 44.1 kHz | | Frequency Response | 20 Hz to 20 kHz (±3 dB) | | S/N Ratio | >85 dB (playback)
>75 dB (recording) | | | | Tracking Ability | 4-track, 2-channel stereo | | Tape Speed | 4.8 cm / sec | | Wow & Flutter | 0.3% | | Frequency | Characteristic: 125 Hz to 10 kHz | | S/N Ratio | 45 dB | | | | Frequency Range | FM: 87.5 to 108.0 MHz
AM: 530 to 1,720 kHz | | | | Motor | DC servo | | Drive System | Belt drive | | Speed | 33-1/3 rpm, 45 rpm, 78 rpm | | Wow & Flutter | less than 0.3% (WDT) | | S/N Ratio | More than 50 dB | | Cartridge Type | Ceramic stereo | | Stylus | STL-103 (pre-mounted) / SPL-102 (sold separately) | | Output Level | 158 to 348 mV (50 mm/s, 1 kHz) | | | | Unit Cell Size | 3" (76 mm) | | Impedance | 4 Ω | | | | Connector | Type B (4-pin) | | Format | USB 2.0 | | | | Power Requirements | 120 V, 60 Hz | | Power Consumption | 25 W | | Operating Temperature Range | 41 to 95°F (5 to 35°C ) | | Dimensions (W x H x D) | 18.50 x 9.05 x 15.35" (470.00 x 230.00 x 390.00 mm) | | Weight | 24.25 lb (11.00 kg) | | | | Package Weight | 28.4 lb | | Box Dimensions (LxWxH) | 22.0 x 18.0 x 12.0" |
