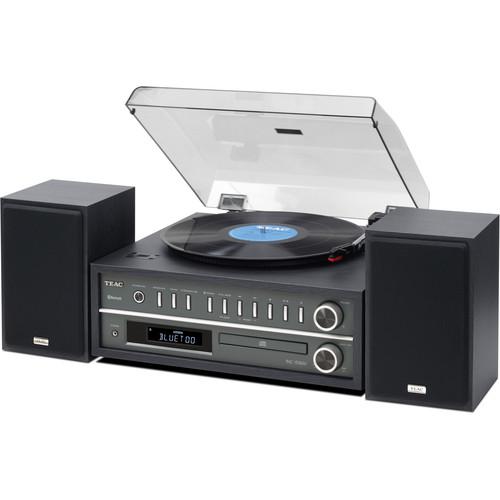

User Manual for Teac MC-D800 Stereo Turntable System Click to enlarge the picture
Contents of the user manual for the Teac MC-D800 Stereo Turntable System
- Product category: Turntables Teac
- Brand: Teac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teac Turntables
|
User manual for the Teac MC-D800 Stereo Turntable System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teac product will considerably shorten its lifespan!
|
Product description Enjoy your music in nearly all its forms with the black Teac MC-D800 Stereo Turntable System. It will play your 33 1/3 and 45 rpm records and, after replacing the preinstalled stylus with the optional SPL-102 stylus (sold separately), it will also play 78 rpm records. The system has a CD player, AM/FM radio, and USB port for MP3 and WMA playback from your flash drives. Bluetooth is also onboard for wireless audio streaming from your compatible devices.
The system includes a pair of bookshelf speakers and a stereo RCA output if you prefer to play it through a separate audio system. It includes a remote control for added convenience. - Bluetooth Wireless Audio Streaming with Instant Pairing
- With a compatible smartphone, you can connect wirelessly by placing the phone on top of the turntable. If your device is not compatible with Instant Pairing, you can connect via the conventional Bluetooth pairing process.
- 3-Speed Turntable
- The auto-return, 3-speed turntable can play 33 1/3 and 45 rpm records, including 7" vinyl records. The preinstalled sapphire stylus is designed for LP and EP records and can be replaced with the optional SPL-102 diamond stylus, which is designed specifically for SP 78 rpm records.
- CD Player with MP3 & WMA Playback
- The tray-loading CD player supports both MP3 and WMA files as well as conventional CDs. Up to 32-track program play, repeat play, and shuffle play are also supported.
- USB Port for MP3 & WMA Playback
- A USB port on the top of the turntable allows you to play MP3 and WMA files from your USB flash drive. Repeat and shuffle play options are also available. The USB port is covered with a rubber cap to prevent dust accumulation.
- PLL-Synthesized AM/FM Stereo Tuner
- The MC-D800 has a PLL-synthesized AM/FM tuner with a 20-preset station memory on each frequency.
- 2-Way Bookshelf Speakers with Rear Bass-Reflex Port
- The turntable includes a pair of speakers with a 1.5" tweeter and a 3.5" woofer. The bookshelf speakers each deliver up to 10W of power and, thanks to isolated vibrations, playback will not be affected.
- Integrated Timer
- The timer function allows you to set an on/off timer, which you can use like an alarm clock. Just choose the desired source from CD, USB, FM, or AM, and the desired volume level. A dimmable LCD and sleep timer of up to 90 minutes are also onboard.
- Optional Replacement Stylus for SP Records
- In order to prevent unnecessary friction or inaccurate tracking on SP records, you can replace the preinstalled stylus with the optional SPL-102, which is tailored to the groove width of SP records.
- Additional Features
-
- Mute function
- RoHS compliant
UPC: 043774030965 In the Box Teac MC-D800 Stereo Turntable System (Black) Dust Cover 2 x Hinges Remote Control 2 x AA Batteries 45 rpm Adapter FM Wire Antenna AM Loop Antenna Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teac MC-D800 Stereo Turntable System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeac MC-D800 Specs | | | Output Power | 2 x 10 W | | Drivers | 1x 1.5" (38.1 mm) tweeter per speaker
1x 3.5" (88.9 mm) woofer per speaker | | Impedance | 8 Ohms | | Speaker Design | Ported | | | | Media Type Supported | CD-DA, CD-R, CD-RW | | Supported Formats | PCM (CD-DA), MP3, WMA | | Sample Rate | Audio CD: 16-bit / 44.1 kHz | | Sampling Frequency | MP3: 16 to 48 kHz
WMA: 32 / 44.1 / 48 kHz | | Bit Rate | MP3, WMA: 8 to 320 kbps | | | | Supported Media | USB flash memory | | Supported Formats | MP3, WMA (DRM not supported) | | Sampling Frequency | MP3: 16 to 48 kHz
WMA: 32 / 44.1 / 48 kHz | | Bit Rate | MP3, WMA: 8 to 320 kbps | | | | Tuner Type | PLL synthesized | | Frequency Range | FM: 87.5 to 108 MHz
AM: 530 to 1710 kHz | | Number of Presets | 20 FM, 20 AM | | | | Speeds | 33 1/3, 45, 78 rpm | | Compatible Media | 33 1/3 & 45 rpm vinyl records
78 rpm vinyl records playable after replacing preinstalled stylus with one that is 78 rpm-compatible | | Stylus | Preinstalled, Replacement for LPs/EPs: STL-103 (sapphire)
Replacement for SPs: SPL-102 (diamond) | | Motor | DC servo | | Drive Type | Belt | | Wow & Flutter | ≤0.35% | | Signal-to-Noise Ratio | ≥50 dB | | Cartridge | Ceramic, stereo | | | | Bluetooth | Version: 2.1 +EDR
Class: Class2
Range: Approximately 133' (10 m)
Supported Profiles: A2DP, AVRCP
Supported Codec: SBC | | Wired | 1 x stereo RCA in
1 x USB Type-A in
1 x stereo RCA out
1 x 1/8" (3.5 mm) headphone out (front) | | Other Connections | 1 x FM antenna in
1 x AM antenna in
2 x spring clip pairs | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | 20 W | | Speaker Cable Length | 9' (2.7 m) built into speakers | | Dimensions (W x H x D) | Main Unit: 15.7 x 8.1 x 15.2" (400 x 206 x 386 mm)
Speakers: 5.7 x 8.8 x 6.1" (144 x 244 x 154 mm) each | | Weight | Main Unit: 14.6 lb (6.6 kg)
Speakers: 6.1 lb (2.8 kg) each | | | | Package Weight | 26.3 lb | | Box Dimensions (LxWxH) | 24.0 x 19.5 x 12.0" |
