User Manual for Teac PD-D2610mkII 5-Disc CD Changer Click to enlarge the picture
Contents of the user manual for the Teac PD-D2610mkII 5-Disc CD Changer
- Product category: CD Players & Changers Teac
- Brand: Teac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teac CD Players & Changers
 |
User manual for the Teac PD-D2610mkII 5-Disc CD Changer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teac product will considerably shorten its lifespan!
|

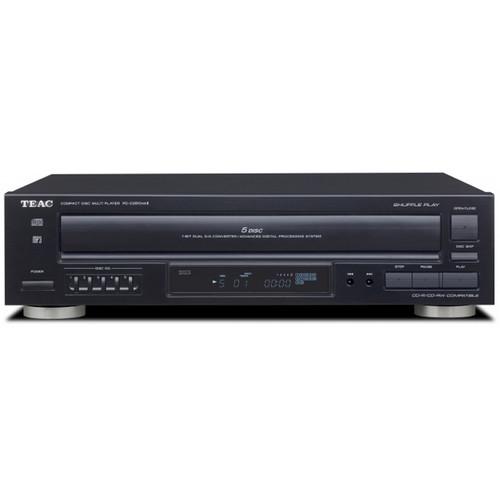

Product description Easily explore your music collection with the PD-D2610mkII 5-Disc CD Changer from Teac. Featuring a carousel design, this CD player can hold up to 5 CDs at once and offers quick access via its direct disc selection keys. The CD changer's front-panel fluorescent display allows you to see things such as song title and artist name while playing MP3 or WMA files. For optimized sound quality, the PD-D2610mkII incorporates a Burr Brown digital-to-analog converter. Additionally, you can connect this CD changer to your receiver via its stereo RCA, digital optical, or digital coaxial outputs. - Burr-Brown Digital-to-Analog Converter
- The PD-D2610mkII employs a Burr Brown digital-to-analog converter (DAC) for high-quality sound reproduction. Also available are digital outputs, both coaxial and optical, for digital audio playback to an external digital-to-analog converter, receiver, or DAC amplifier.
- Fluorescent Display with Music Calendar
- This CD changer is equipped with a high-contrast fluorescent display with a music calendar that shows song title, artist name, and album title when MP3 or WMA files are played (MP3/WMA file with ID3 tag information).
- Direct Disc Selection Keys
- The PD-D2610mkII employs Direct Disc Selection Keys for quick disc change.
- Additional Features
-
- Supports CD-DA, MP3, and WMA disc playback
- Continuous playback throughout disc 1 to disc 5
- 32-track program playback
- Repeat (1/All) and shuffle playback
- Intro check

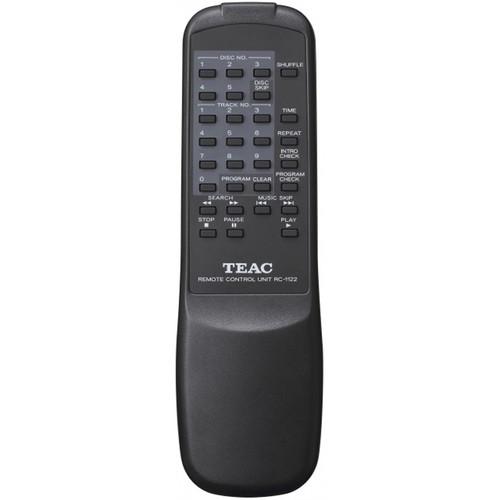

- Infrared remote control with 10-key
UPC: 043774031740 In the Box Teac PD-D2610mkII 5-Disc CD Changer RCA Cable Remote Control 2 x AA Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teac PD-D2610mkII 5-Disc CD Changer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeac PD-D2610 mkII Specs | | | Type | 5-disc carousel | | Pickup | 3-beam laser | | Digital-to-Analog Converter (DAC) | Dual 1-bit linear | | Digital Filter | 4-times oversampling | | Supported Media | CD-DA, CD-R, CD-RW | | Supported Formats | PCM (CD-DA), MP3, WMA
PCM (CD-DA): 16-bit, 44.1kHz
MP3: 8k to 320 kb/s bit-rate, 16 k to 48 kHz sampling frequency

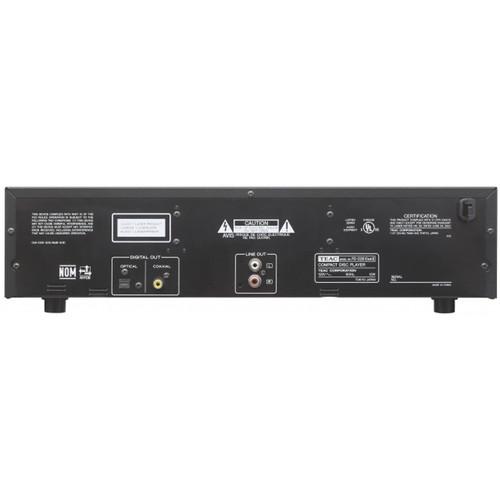

WMA: 8k to 320 kb/s bit-rate, 32 k/44.1 k/48 kHz sampling frequency, DRM not supported | | Frequency Response | 20 Hz to 20 kHz (+/- 2 dB) | | Total Harmonic Distortion (THD) | <0.02% (1 kHz) | | Signal-to-Noise Ratio | >90 dB | | Channel Separation | >80 dB (1 kHz) | | | | Output | 1 x Stereo RCA
1 x Digital Coaxial
1 x Digital Optical | | | | Environmental | Operating Temperature: 41 to 95°F / 5 to 35°C
Storage Temperature: -4 to 131°F / -20 to 55°C
Operating Humidity: 5 to 85% (no condensation) | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | 12 W | | Dimensions (WxHxD) | 17.1 x 4.5 x 15.4" / 435.0 x 115.0 x 390.0 mm (excluding protruding portion) | | Weight | 13.7 lb / 6.2 kg | | | | Package Weight | 14.4 lb | | Box Dimensions (LxWxH) | 20.0 x 18.0 x 7.0" |
Rating82% users recommend this product to others. And what about you?
This product has already been rated by 50 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Teac PD-D2610mkII 5-Disc CD Changer
| Subject: Front face panel will NOT open to have CD's placed inside? | | Date: 06.12.2020 22:40:33 | Name: Peter Iverson | I have the TEAC PD-D2610 MKII unit. By powering on the unit and pressing the open button, the front panel does NOT open to have CD's (up to 5) placed inside. You only get a digital display saying "open" and then it goes to "closed" with no other action taken?
This unit last about one (1) year and now nothing more than a paper-weight !!!
:(
| | Post reply |
