Product description Enjoy your 33 1/3-, 45-, and 78-rpm records through your wireless or wired audio system with the black Teac TN-180BT Stereo Turntable. It features a switchable Line/Phono RCA output for compatibility with nearly any wired sound system, plus Bluetooth connectivity for wireless connection to your compatible speakers or headphones. - Built-In Bluetooth Transmitter

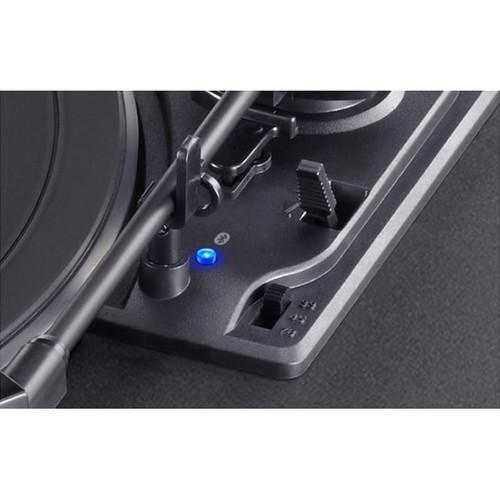

- The TN-180BT delivers sound wirelessly via the built-in Bluetooth transmitter, or through the conventional RCA output in either Line or Phono format. The pairing button is located at the base of the tonearm, and illuminates when the connection is successfully made.
- 3-Speed Turntable with Auto-Return
- The TN-180BT can play LP, EP, and SP records and features a tonearm that automatically returns to the original position when playback finishes. An MM-type cartridge is pre-installed, so you can start playing records right out of the box.
- MDF Cabinet Construction
- The single MDF board design helps minimize vibrations and resonance for clear playback.
- Built-In MM-Type Phono EQ Amplifier

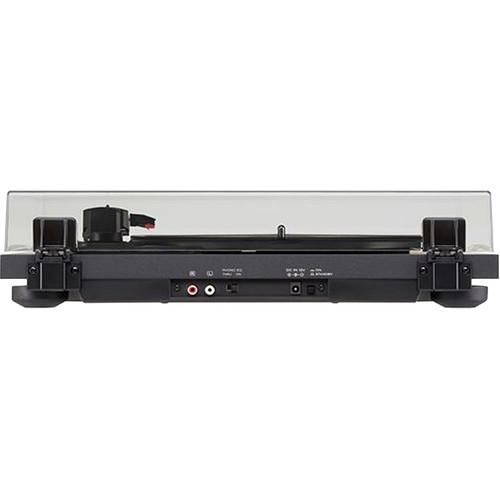

- The TN-180BT supports both Phono and Line outputs, allowing you to play with or without using a phono equalizer.
- Belt-Drive Turntable
- The platter is driven by a DC motor engineered for high torque, while the stainless-steel spindle and brass spindle holder help maintain accurate rotation speed.
In the Box Teac TN-180BT Stereo Turntable (Black) EP Adapter RCA Audio Cable Rubber Mat Dust Cover 2 x Dust Cover Hinges AC Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the Teac TN-180BT Stereo Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeac TN-180BT Specs | | | Drive Method | Belt-drive system | | Motor Type | DC | | Wow and Flutter | 0.25% | | Signal to Noise Ratio | >64 dB (A-weighted, 20 kHz, LPF) | | Rotation Speed | 33 1/3, 45, 78 rpm | | Speed Drift | ±2% | | Platter Diameter | 11.8" / 30 cm | | | | Bluetooth | Range: Up to 32.8' / 10 m
Supported Codec: SBC | | Output | 1 x chrome-plated stereo RCA pair | | Output Voltage | Phono: 2.4 mV (±3 dB)
Line: 149 mV (-16.5 dBV) | | | | Type | MM | | Output Voltage | 2.4 mV (±3 dB) | | | | Design | Straight, static-balanced | | Effective Arm Length | 7.87" / 200 mm | | | | Construction Material | Platter: Plastic
Cabinet: MDF | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Power Requirements | 100 to 240 VAC, 50/60 Hz
12 VDC, 500 mA | | Power Consumption (Active) | ≤1.5 W | | Power Consumption (Standby) | ≤0.2 W | | Dimensions (W x H x D) | 16.5 x 4.1 x 14" / 420 x 105 x 356 mm | | Weight | 10.8 lb / 4.9 kg | | | | Package Weight | 10.75 lb | | Box Dimensions (LxWxH) | 20.0 x 15.75 x 5.75" |
