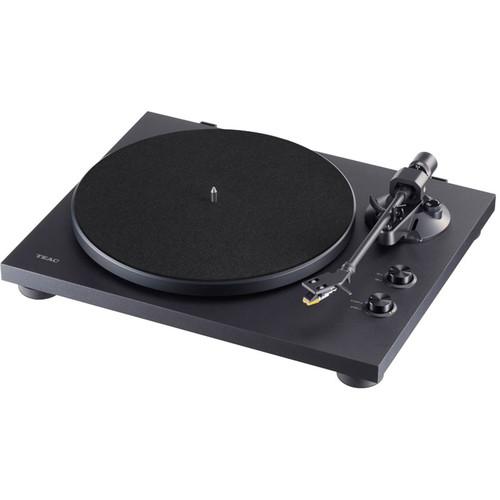

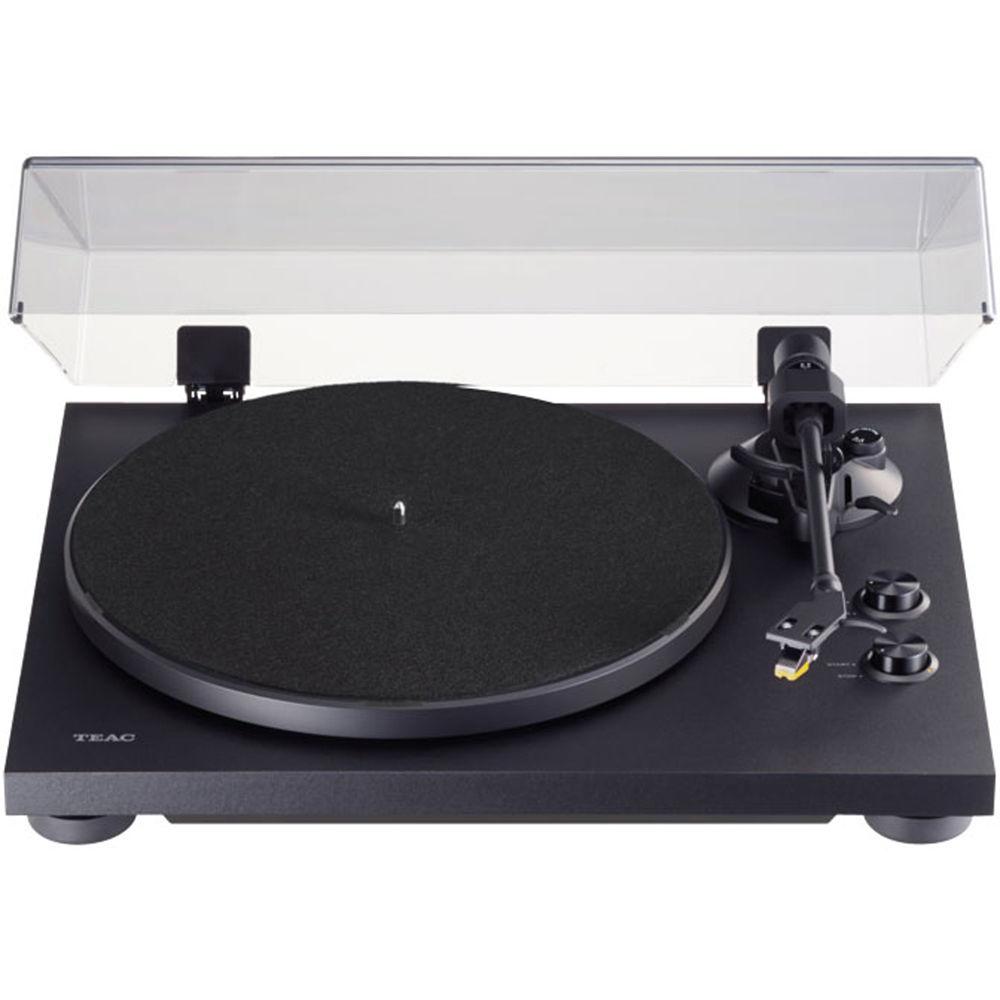

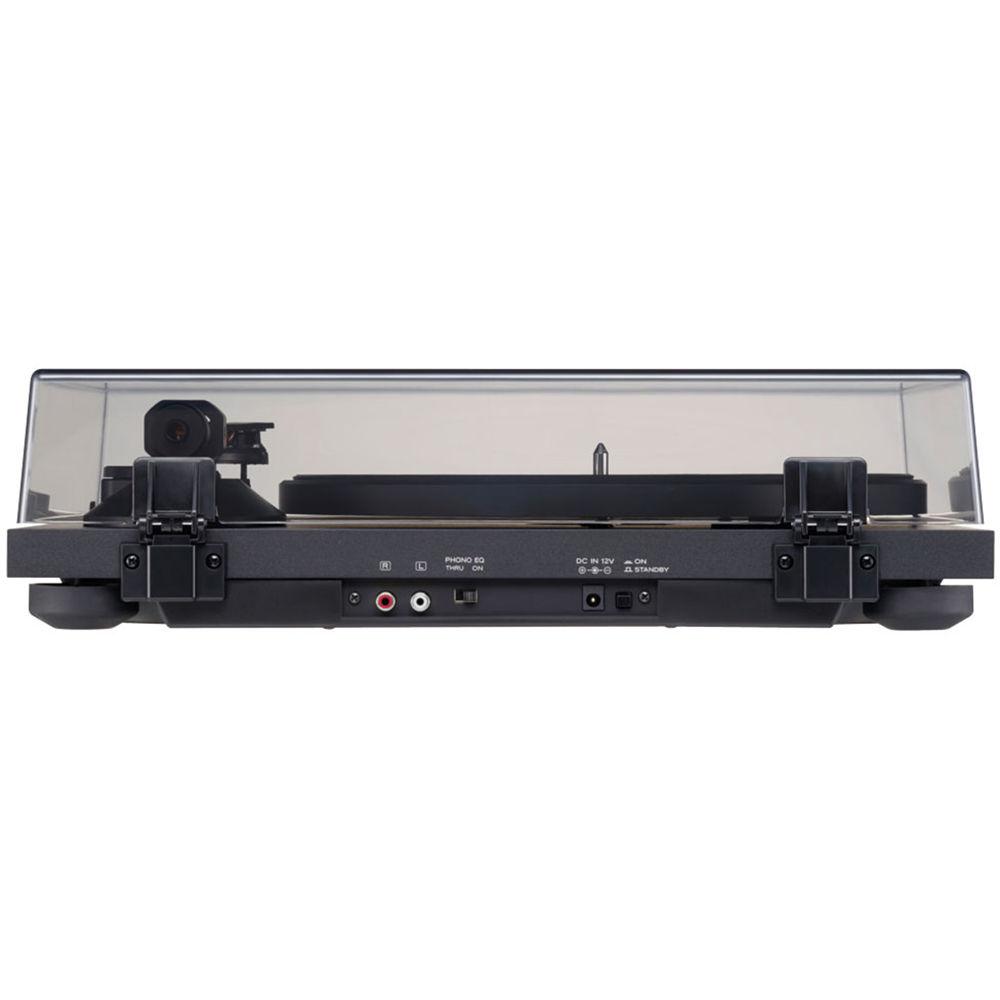

Product description Enjoy your 33 1/3 and 45 rpm records through your wireless or wired audio system with the black Teac TN-280BT Stereo Turntable. It features a switchable Line/Phono RCA output for compatibility with nearly any wired sound system, plus Bluetooth connectivity for wireless connection to your compatible speakers or headphones. - Built-In Bluetooth Transmitter
- The TN-280BT delivers sound wirelessly via the built-in Bluetooth transmitter, or through the RCA output in either Line or Phono format. The pairing button is located at the base of the tonearm, and the indicator illuminates when the connection is successfully made.
- 2-Speed Turntable with Stainless-Steel Spindle & Bronze Spindle Holder
- The TN-280BT is driven by a DC motor designed for high torque and stable rotation for both 33 1/3 and 45 rpm speeds. The felt mat helps reduce vibration, and spindle accuracy is maintained by its stainless-steel construction and bronze spindle holder.

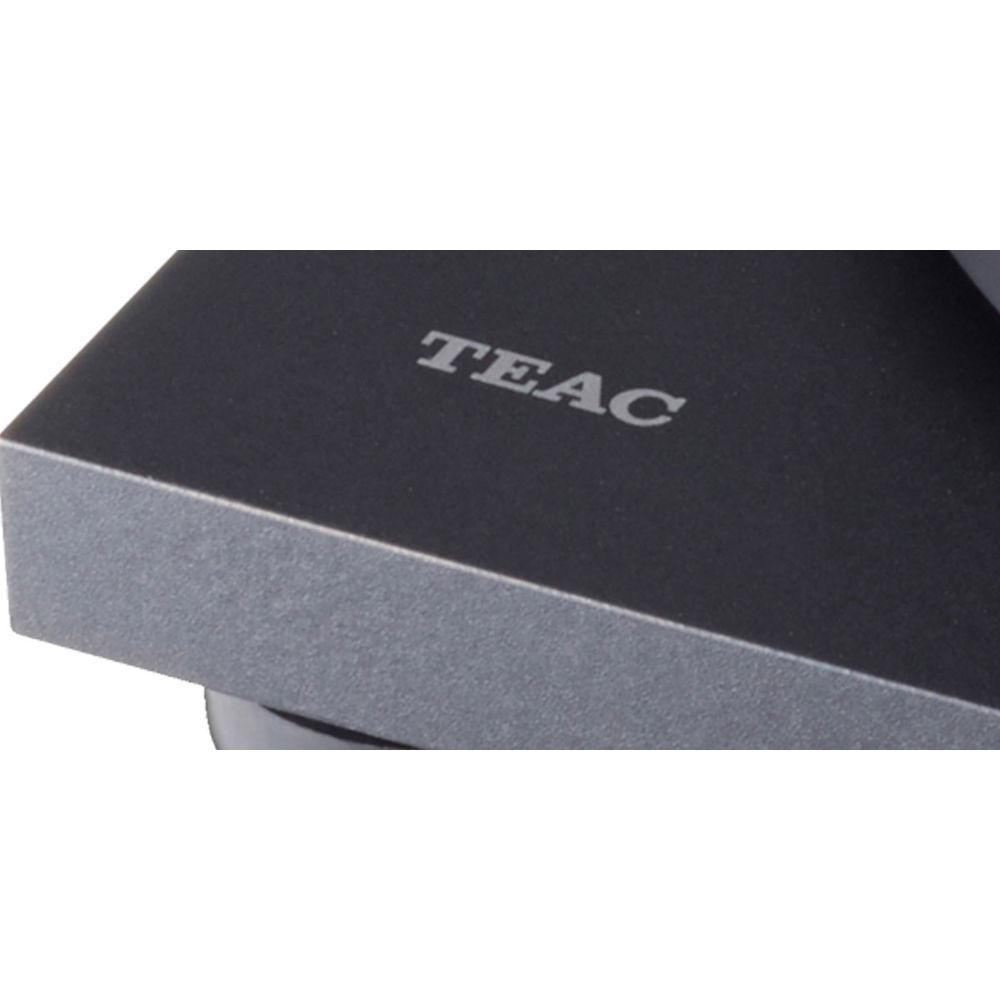

- MDF Cabinet Construction
- The MDF cabinet design helps minimize vibrations and resonance for clear playback.
- Built-In MM-Type Phono EQ Amplifier

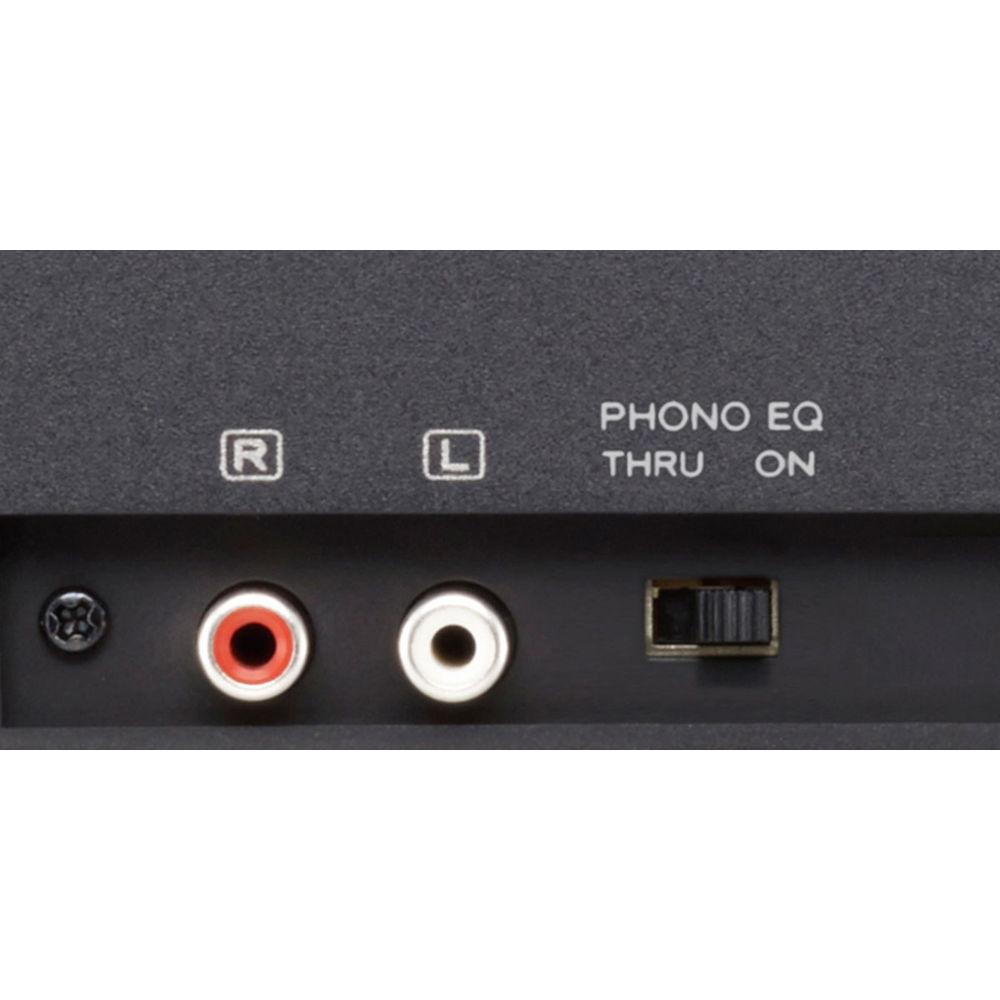

- The TN-280BT supports both Phono and Line outputs, allowing you to play with or without using a phono equalizer.
- Static-Balanced Straight Tonearm

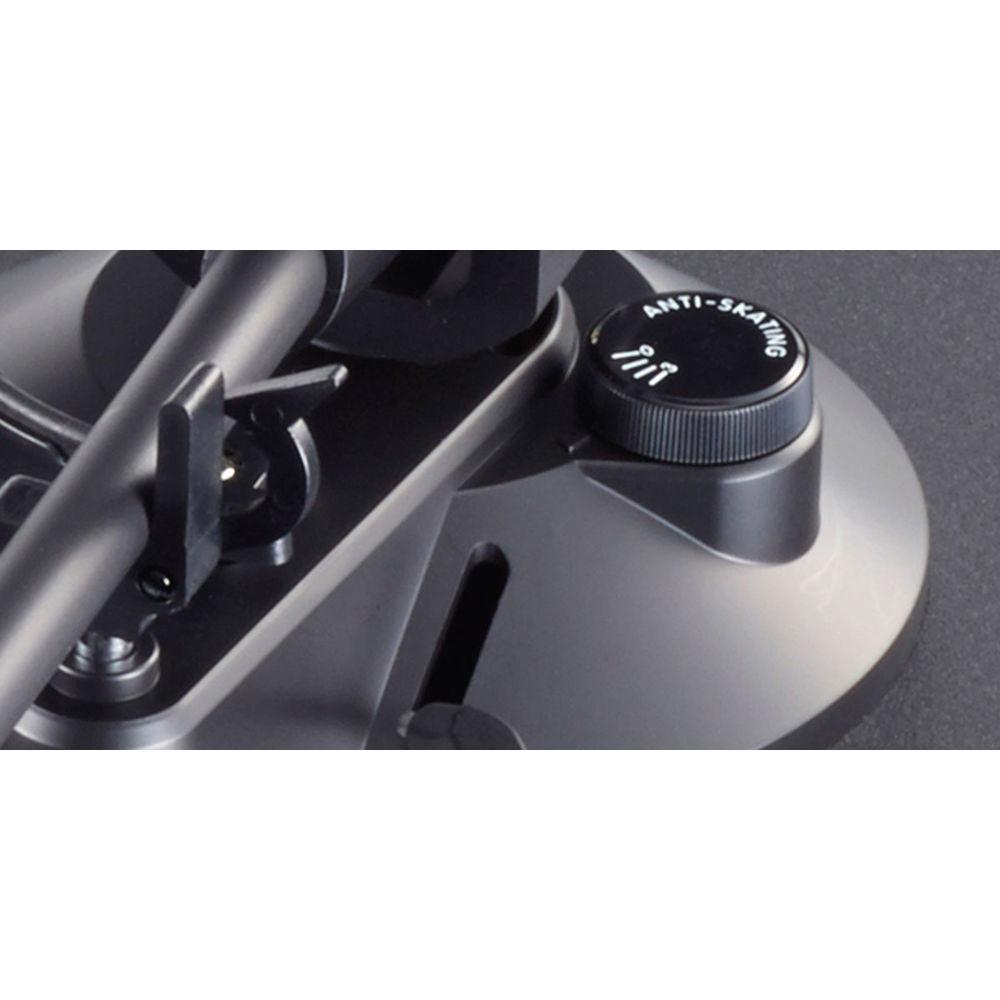

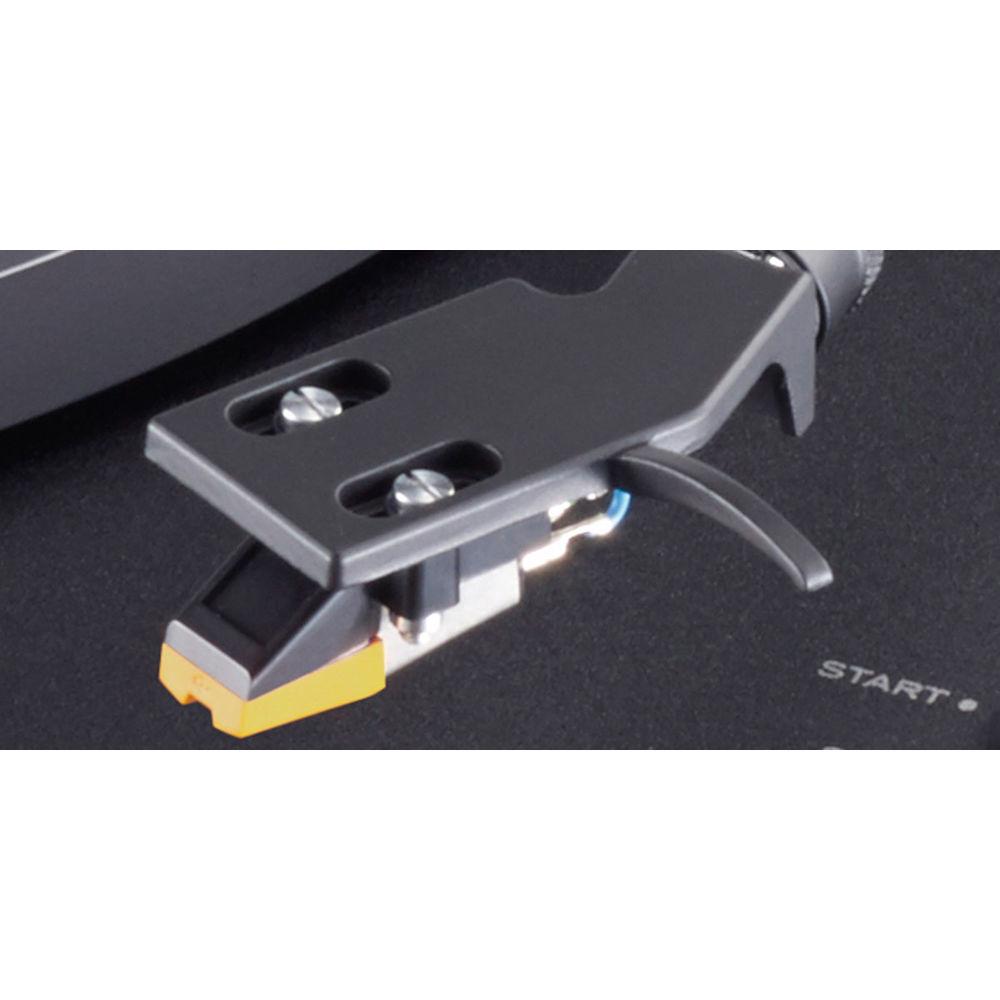

- The straight tonearm helps enhance tracking accuracy, and an anti-skating mechanism further helps to ensure accurate tracking of your records. An MM-type cartridge is pre-installed.
UPC: 043774033652 In the Box Teac TN-280BT Stereo Turntable with Bluetooth (Black) EP Adapter RCA Audio Cable Platter Felt Mat Counterweight Headshell Dust Cover 2 x Dust Cover Hinges AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teac TN-280BT Stereo Turntable with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeac TN-280BT Specs | | | Drive Method | Belt-Drive System | | Motor Type | DC | | Wow and Flutter | 0.2% | | Signal to Noise Ratio | A-Weighted: >67 dB
Unweighted, 20 kHz, LPF: 60 dB | | Rotation Speed | 33 1/3, 45 rpm | | Speed Drift | ±2% | | Platter Diameter | 11.8" / 30 cm | | | | Bluetooth | Range: Up to 32.8' / 10 m
Supported Codec: SBC | | Output | 1 x Chrome-Plated Stereo RCA Pair | | Output Voltage | Phono: 4.5 mV (±3 dB)
Line: 120 mV (-13 dBV) | | | | Type | MM | | Stylus | Shape: Elliptical
Pressure: 2 g ±0.5 g | | Mount | 1/2" | | Frequency Response | 20 Hz to 20 kHz | | Channel Separation @ 1 kHz | 20 dB | | Channel Balance | 2 dB | | Tracking Force | 1.5 to 2.5 g | | Vertical Tracking Angle | 20° | | Output Impedance | 47 kohms | | Output Voltage | 4.5 mV (±3 dB) | | Cartridge Weight | 5.7 ±0.5 g | | Headshell | Weight: 10 g (Including Nuts, Screws, and Wires) | | | | Design | Straight, Static-Balanced | | Effective Arm Length | 8.78" / 223 mm | | Pressure Level | Stylus: 0 to 5 g | | Cartridge Weight | 3.5 to 6.5 g | | Anti-Skating Adjustment | Supported | | | | Construction Material | Platter: Die-Cast Aluminum
Cabinet: MDF | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Power Requirements | 100 to 240 VAC, 50/60 Hz
12 VDC, 500 mA | | Power Consumption (Active) | ≤1.5 W | | Power Consumption (Standby) | ≤0.5 W | | Dimensions (W x H x D) | 16.5 x 4.6 x 14" / 420 x 117 x 356 mm | | Weight | 10.8 lb / 4.9 kg |
