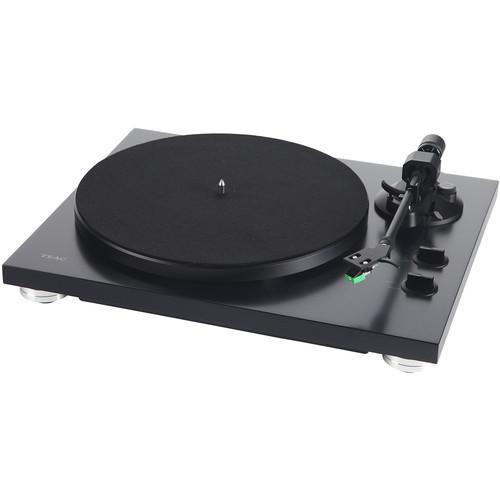

User Manual for Teac TN-300SE Stereo Turntable with USB Click to enlarge the picture
Contents of the user manual for the Teac TN-300SE Stereo Turntable with USB
- Product category: Turntables Teac
- Brand: Teac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teac Turntables
 |
User manual for the Teac TN-300SE Stereo Turntable with USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teac product will considerably shorten its lifespan!
|

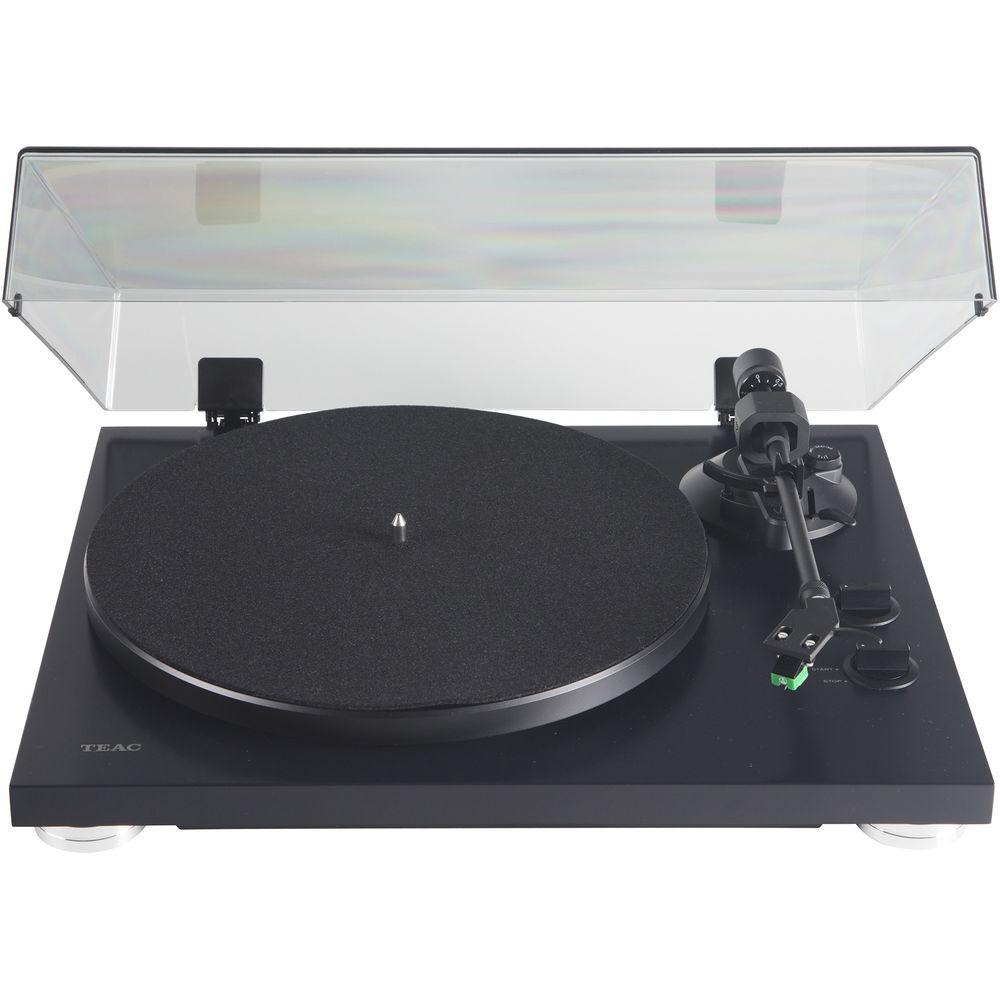

Product description Digitize your favorite vinyl records with the matte black Teac TN-300SE Stereo Turntable. Its USB output will allow you to connect it to your compatible Windows or Mac computer to convert the records to digital audio files for storage. The turntable will also connect to nearly any RCA audio input on a receiver or amplifier with its phono/line level switchable audio output. It includes a stereo RCA cable and 45 rpm adapter for convenient connectivity and playback. - Belt-Drive Turntable
- The aluminum die-cast platter is driven by a DC motor with neoprene rubber designed to achieve a precise and stable rotation. In addition, the polished stainless steel spindle and bronze spindle holder are engineered for reliable music listening.
- MDF Cabinet
- The MDF cabinet is designed to minimize unwanted resonance.
- MM-Type Cartridge with a Phono Equalizer Amplifier
- The TN-300SE supports both phono and line outputs, allowing you to play vinyl with or without a phono equalizer.
- USB Digital Output and Analog Phono/Line Output

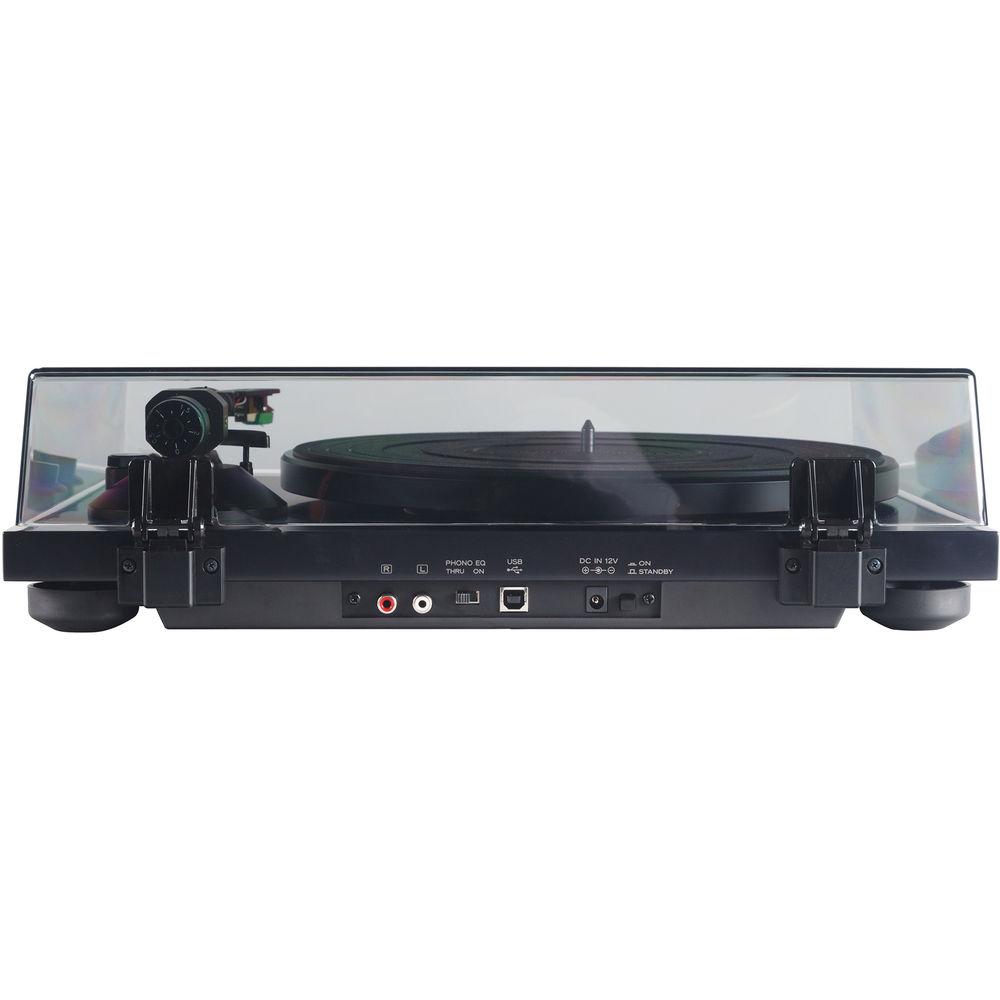

- The onboard analog-to-digital converter allows you to transfer music via USB to your computer to digitize your vinyl collection. For enhanced-quality analog signal transfer to your audio system, a pair of gold-plated RCA connectors are employed for connection to either the Line or Phono input of your amplifier.
- Corrosion-Resistant, Gold-Plated Terminals
- The gold-plated terminals are designed to prevent oxidation of the head shell connectors and provide an easily customizable platform for those who wish to employ an after-market cartridge.
- Static-Balanced, Straight-Type Tonearm
- The TN-300SE uses a straight tonearm for enhanced tracking accuracy, and an adjustable anti-skating mechanism helps ensure accurate tracking of your favorite records. A manual arm lifter is onboard for analog playback.
- 2-Speed Turntable with 33 1/3 & 45 rpm Playback
- The TN-300SE can play LPs and EPs and includes an adapter to spin your favorite 45s.
- Audio-Technica MM (VM)-Type Phonograph Cartridge
- The TN-300SE comes with an Audio-Technica MM (VM)-type cartridge designed for accurate reading.
UPC: 043774033263 In the Box Teac TN-300SE Stereo Turntable with USB (Matte Black) 45 rpm Adapter RCA Audio Cable Counter Weight Platter Rubber Mat Dust Cover 2 x Rubber Feet for Dust Cover 2 x Hinges for Dust Cover AC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teac TN-300SE Stereo Turntable with USB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeac TN-300SE-MB Specs | | | Drive System | Belt drive | | Motor | DC motor | | Speed | Speed: 33 1/3, 45 rpm
Rotation Speed Variation: ±2% | | Wow & Flutter | 0.2% | | Signal to Noise Ratio | 67 dB or higher (A-weighted, 20 kHz LPF)
60 dB or higher (unweighted, 20 kHz LPF) | | Turntable Platter | Construction Material: Die-cast aluminum
Diameter: 12" (30 cm) | | | | Type | Static-balanced, straight | | Effective Arm Length | 8.8" (22.3 cm) | | Stylus | Pressure Range: 0 to 5 g | | Cartridge Weight | Supported Cartridge Weight: 3.5 to 6.5 g | | Anti-skating Adjustment | Supported | | | | Stylus | Type: MM type (Audio-Technica AT95E factory installed)
Shape: Elliptical
Construction: Bonded round shank
Pressure: 2 g (±0.5 g) | | Mount | 0.5" (1.3 cm) | | Frequency Response | 20 Hz to 20 kHz | | Channel Separation | 20 dB @ 1 kHz | | Channel Balance | 2 dB | | Tracking Force | 1.5 to 2.5 g | | Vertical Tracking Angle | 20° | | Load Impedance | 47 kOhms | | Output Voltage | 4.5 mV (±3 dB) | | Cartridge Weight | 5.7 g (±0.5 g) | | Head-shell Weight | 10 g (including screws, nuts, and wires) | | Replacement Stylus | Audio-Technica ATN95E | | | | Amplifier Type | Phono Equalizer Amplifier: MM type (on/thru switchable) | | | | Connector | 1 x gold-plated stereo RCA | | Output Voltage | Phono: 4.5 mV (±3 dB)
Line: 120 mV (-13 dBV) | | | | Connector | USB Type-B | | Output Signal | PCM 48 kHz / 16-bit | | OS Support | Windows: 7 , 8, 8.1, 10
OS X: Lion (10.7), Mountain Lion (10.8), X Mavericks (10.9), Yosemite (10.10), El Capitan (10.11)
macOS Sierra (10.12) | | | | Power Requirements | Power Supply: 100 to 240 VAC, 50/60 Hz | | Power Consumption | Active: 1.5 W
Standby: <0.5 W | | Dimensions (W x H x D) | 16.5 x 4.6 x 14.0" (42 x 11.7 x 35.6 cm) | | Weight (Approximate) | 10.8 lb (4.9 kg) | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 20.5 x 17.0 x 8.0" |
