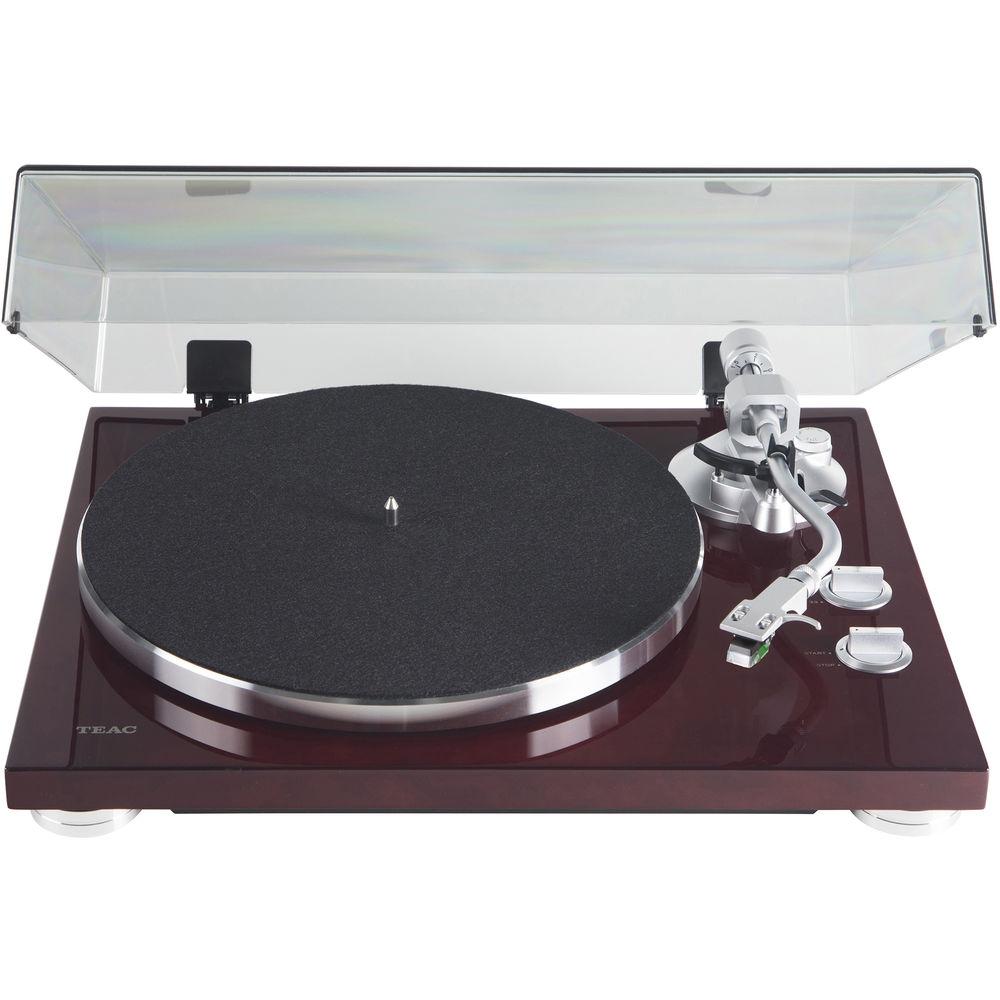

Product description Digitize your favorite vinyl records with the gloss cherry Teac TN-400S Belt-Drive Turntable with a pre-installed Audio-Technica AT100E cartridge. Its USB output will allow you to connect it to your Windows or Mac computer to convert the records to digital audio files for storage. The turntable will also connect to nearly any RCA audio input on a receiver or amplifier with its phono/line level switchable audio output. It includes a stereo RCA cable with GND wiring. - Belt-Drive Turntable
- The TN-400S features both a neoprene-coated aluminum die-cast platter driven by a DC motor and a spindle designed for low friction for enhanced speed consistency and tonal accuracy.
- A Combination of Form and Function
- The MDF cabinet is designed to minimize unwanted resonance while the matte finish delivers an accent to nearly any design scheme.
- MM-Type Cartridge Phono Equalizer Amplifier
- Enjoy your favorite vinyl with any amplifier. The TN-400S supports both phono and line-level outputs, allowing you to play vinyl with or without a phono equalizer.

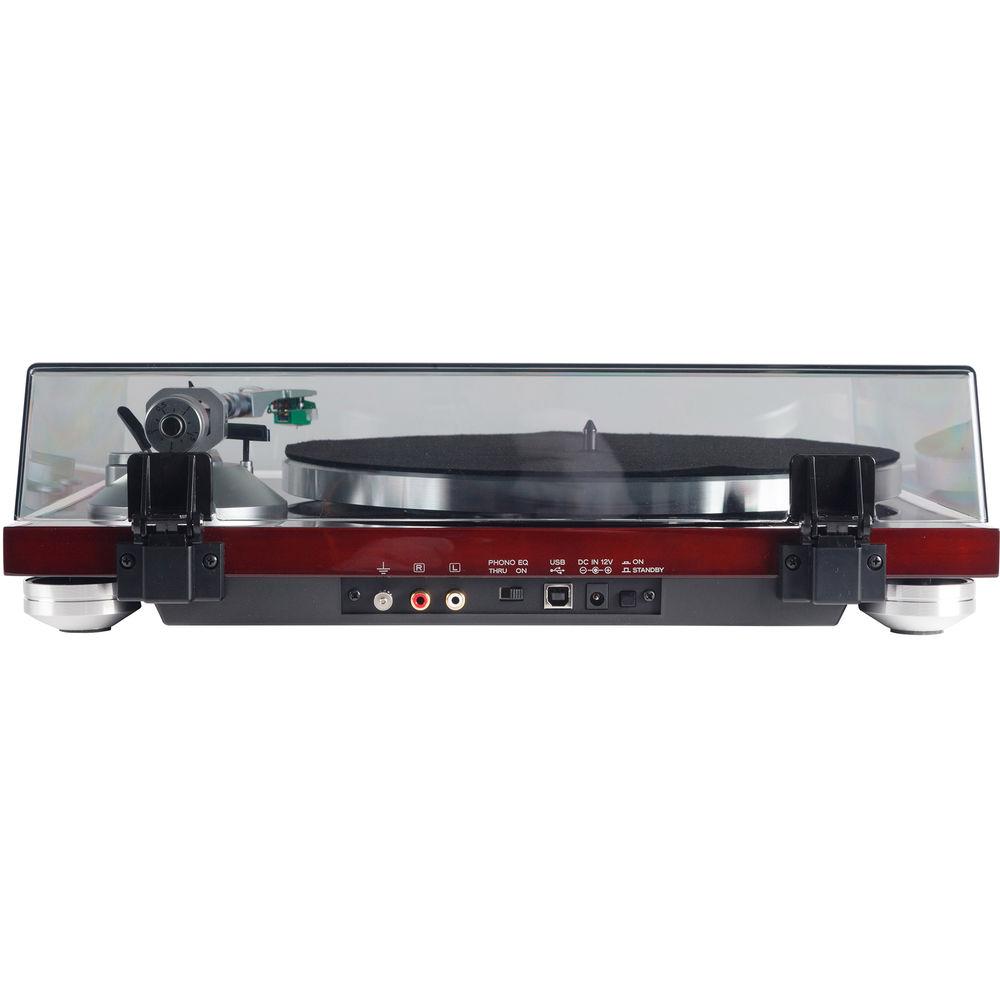

- Built-In USB Digital Output and Analog Phono/Line Output

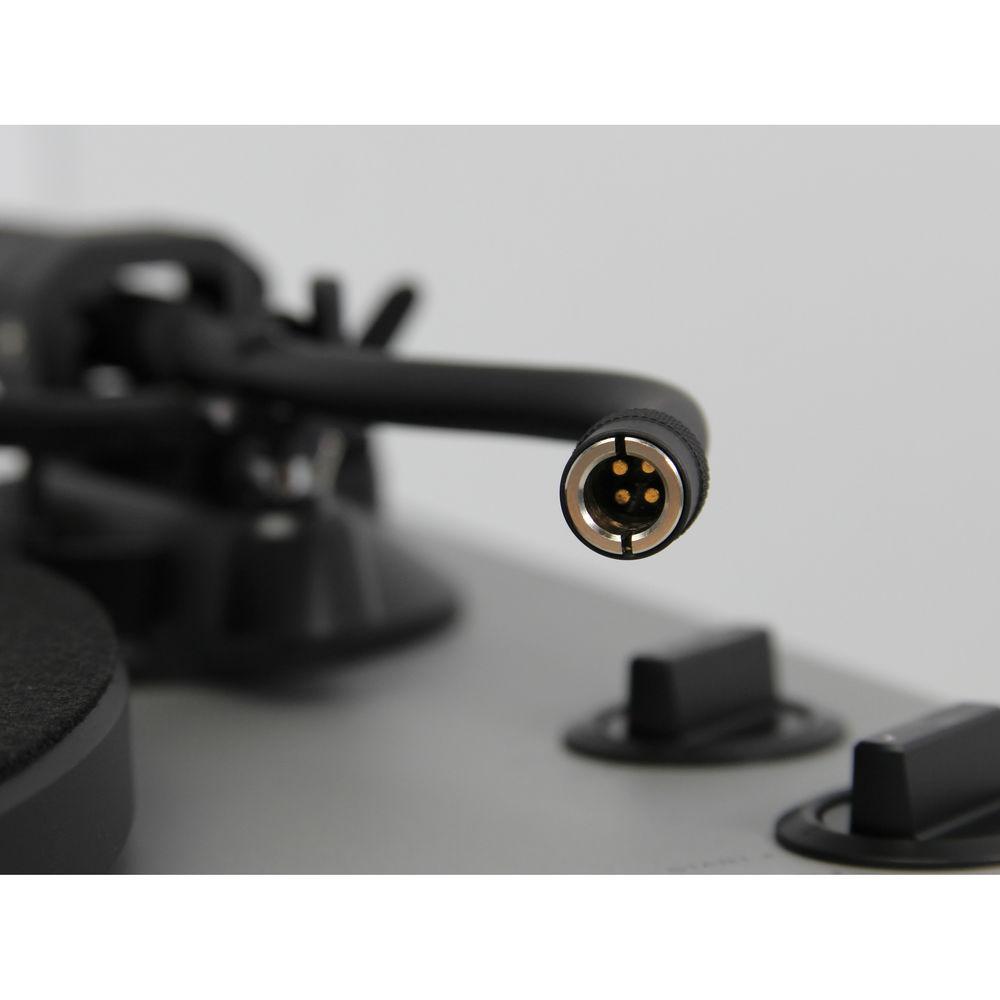

- Gold-plated terminals on the headshell connectors prevent oxidation of the connectors and help to ensure years of reliable performance and audio fidelity.

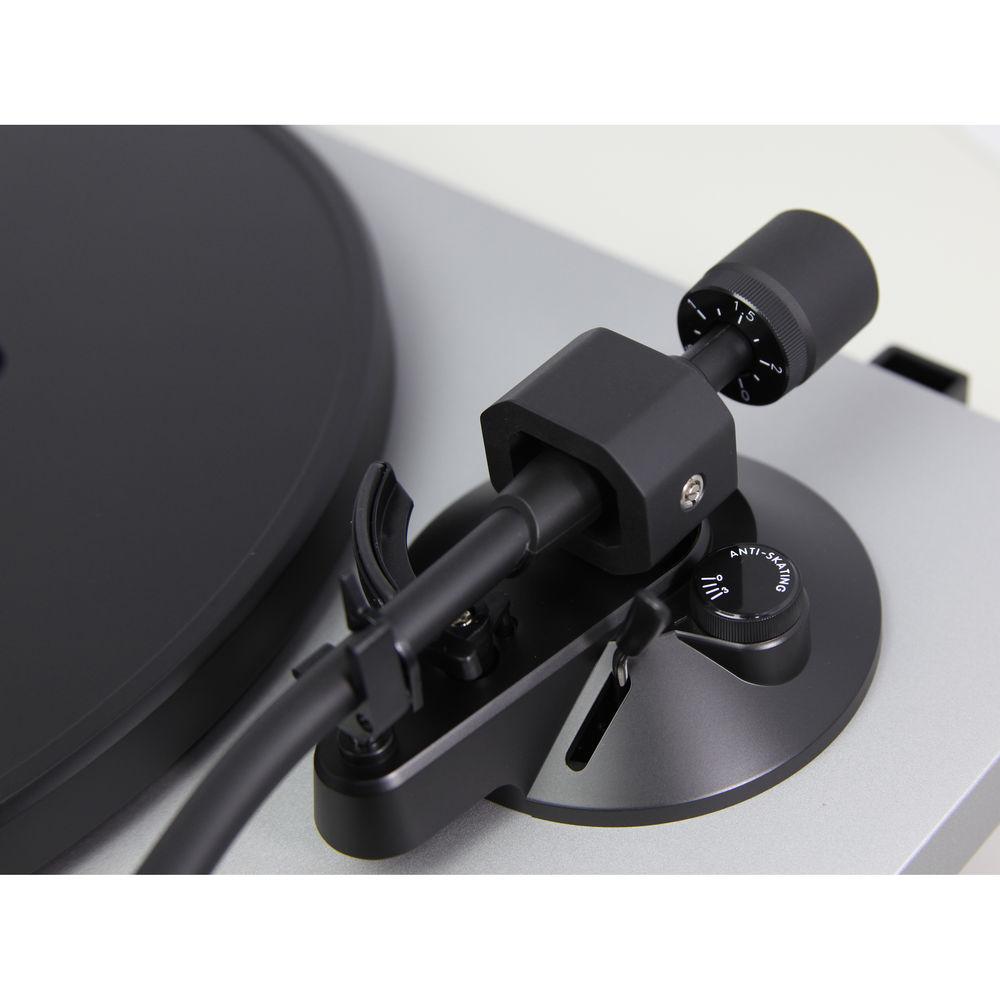

- Static-Balanced S-Shaped Tonearm
- The static-balanced S-shaped tonearm with its universal headshell helps ensure fast and easy setup and enhanced tracking.
- 3-Speed Turntable for LP/EP Record Playback
- The TN-400S will play LPs, EPs, and singles at 33 1/3, 45, and 78 rpm. When combined with its analog-to-digital conversion capabilities, this turntable is a suitable choice for enjoying and archiving your favorite music.

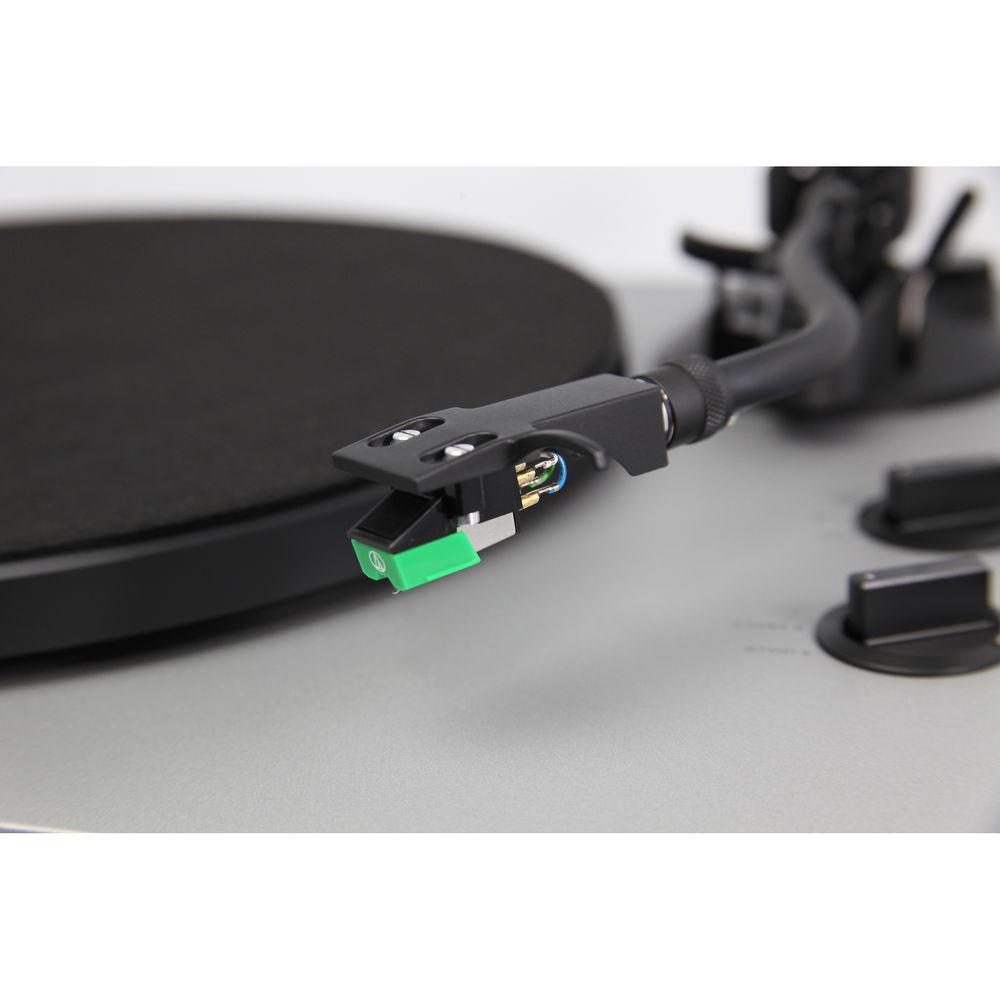

- Audio-Technica AT100E MM-Type Cartridge
- The TN-400S comes with a replaceable Audio-Technica AT100E MM-equivalent cartridge designed for accurate reading.
- Additional Features
-
- Aluminum die-cast platter and augmented motor assembly are designed to provide years of service and stability
- Integrated USB port for digital output allows computer recording for easy archiving
- Anti-skating mechanism stays in the groove so you can stay in the groove
- Static-balanced S-shaped tonearm with universal headshell for enhanced tracking
- Detachable dust cover enables you to customize the look of the turntable to fit your own personal style
UPC: 043774033249 In the Box Teac TN-400S Belt-Drive Turntable with Phono Amplifier and USB (Gloss Cherry, Audio-Technica AT100E Cartridge) Stereo RCA Cable with GND Wiring Felt Mat EP Adapter Counterweight Dust Cover Dust Cover Hinges AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teac TN-400S Belt-Drive Turntable with Phono Amplifier and USB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeac TN-400S Specs | | | Speeds | 33 1/3, 45, 78 rpm
Variation: ±2% | | Motor | DC Motor | | Drive Mechanism | Belt Drive | | Amplifier Type | MM Type (On/Thru Switchable) | | Wow and Flutter | 0.2% | | Signal-to-Noise Ratio | 67 dB or Higher (A-Weighted, 20 kHz LPF)
60 dB or Higher (Unweighted, 20 kHz LPF) | | Turntable Platter | Aluminum Die-Cast | | Platter Diameter | 12" / 30 cm | | | | Tonearm Type | Static Balanced, S-Shaped | | Effective Arm Length | 8.8" / 223 mm | | Needle Pressure Range | 1 to 1.8 g (Approximate Value 1.4 g) | | Cartridge Weight | Supported, Without Head Shell: 3.5 to 6.7 g
Supported, With Head Shell: 13.5 to 16.5 g | | Anti-skating Adjustment | Supported | | | | Cartridge Type | MM-Type (Audio-Technica AT100E Factory Installed) | | Mount | 0.5" | | Stylus | Shape: Joint-Oval, 7.62 x 17.78 μm
Construction: Bonded Round Shank | | Frequency Response | 20 Hz to 20 kHz | | Channel Separation | 27 dB at 1 kHz | | Channel Balance | 1.5 dB | | Needle Pressure Range | Not Specified by Manufacturer | | Vertical Tracking Angle | 23° | | Phono Load Impedance Supported | 47 kohm | | Output Voltage | 4.5 mV (1 kHz, 5 cm/sec) | | Cartridge Weight | 6.5 g | | Replacement Stylus | Audio-Technica AT100E | | | | Connectors | 1 x Stereo RCA Gold-Plated Audio Output
1 x USB Type-B Output | | Output Voltage | Phono/Line Switchable
Phono Output: 4.5 mV (±3 dB)
Line Output: 230 mV (-13 dBV) | | Output Signal | USB: PCM 48 kHz / 16-Bit | | OS Support | Windows: Windows 7, Windows 8, Windows 8.1, Windows 10
Mac: OS X Lion (10.7), OS X Mountain Lion (10.8), OS X Mavericks (10.9), OS X Yosemite (10.10), OS X El Capitan (10.11), macOS Sierra (10.12) | | | | Construction Material | Cabinet: MDF | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Power Consumption | Active: 1.5 W
Standby: <0.5 W | | Dimensions (W x H x D) | 16.5 x 4.6 x 14.0" / 420 x 117 x 356 mm | | Weight (Approximate) | 10.8 lb / 4.9 kg | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 21.5 x 17.0 x 8.0" |
