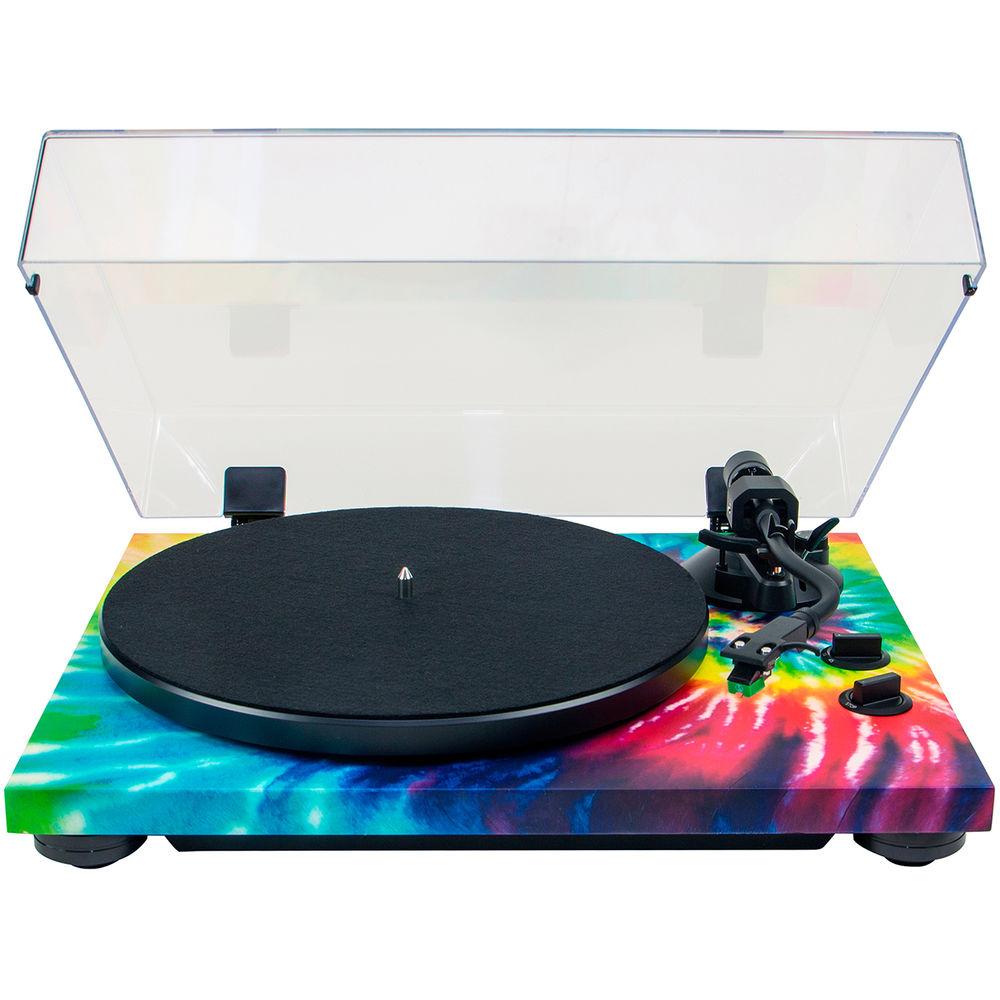

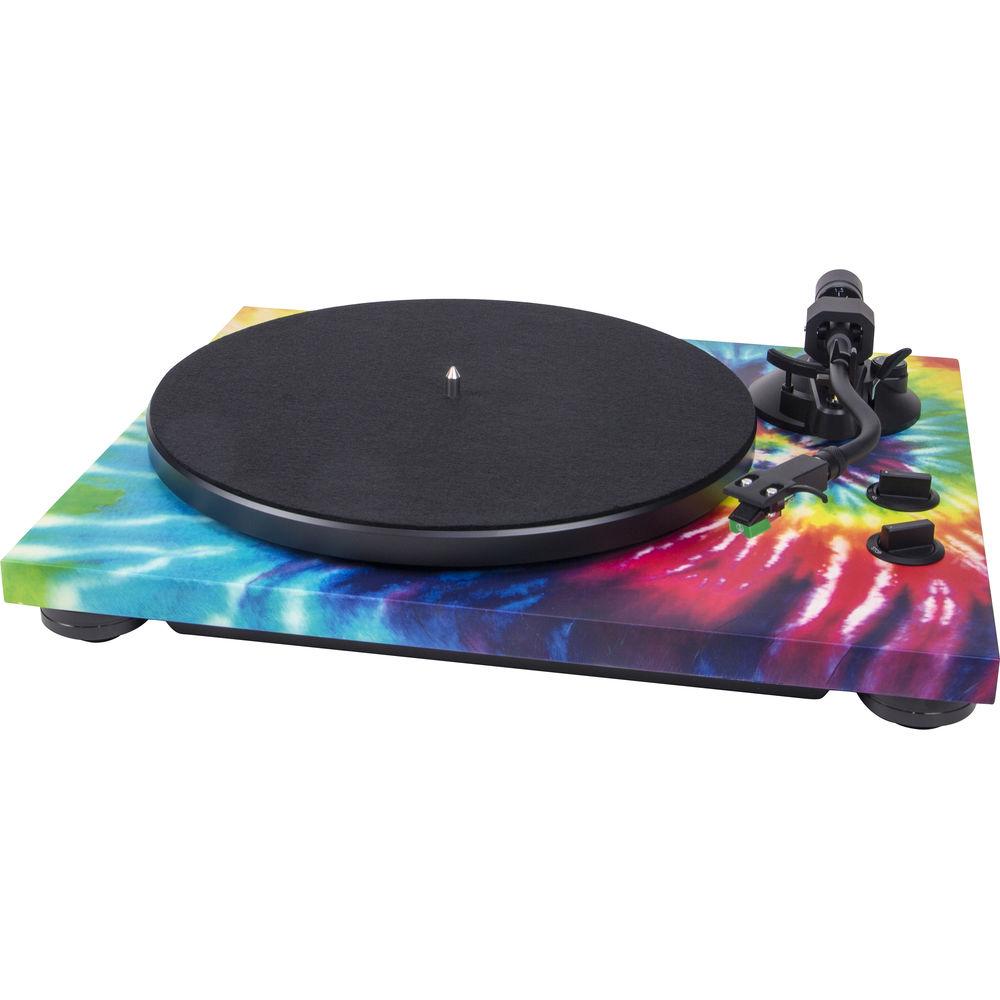

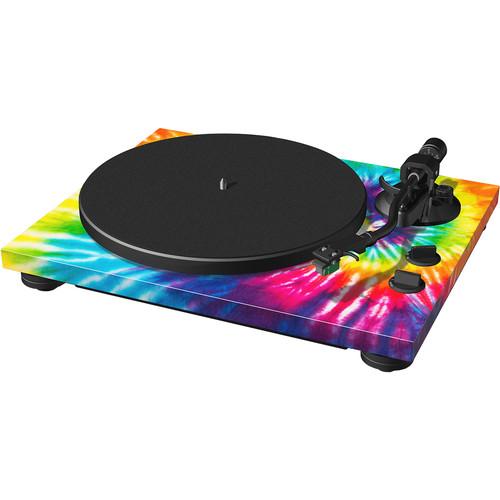

User Manual for Teac TN-420-TD Stereo Turntable with USB Click to enlarge the picture
Contents of the user manual for the Teac TN-420-TD Stereo Turntable with USB
- Product category: Turntables Teac
- Brand: Teac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teac Turntables
 |
User manual for the Teac TN-420-TD Stereo Turntable with USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teac product will considerably shorten its lifespan!
|
Product description Digitize your favorite vinyl records with the tie-dye Teac TN-420-TD Stereo Turntable. Its USB output will allow you to connect it to your Windows or Mac computer to convert the records to digital audio files for storage. The turntable will also connect to nearly any RCA audio input on a receiver or amplifier with its phono/line level switchable audio output. It includes a stereo RCA cable and a removable dust cover. - Belt-Drive Turntable
- The die-cast aluminum platter is driven by a DC motor with a neoprene rubber belt to help achieve stable rotation, which is maintained by a stainless-steel spindle and a bronze spindle holder.
- MM-Type Cartridge Phono Equalizer Amplifier
- Enjoy your favorite vinyl with any amplifier. The TN-420-TD supports both phono and line-level outputs, allowing you to play through nearly any music system.

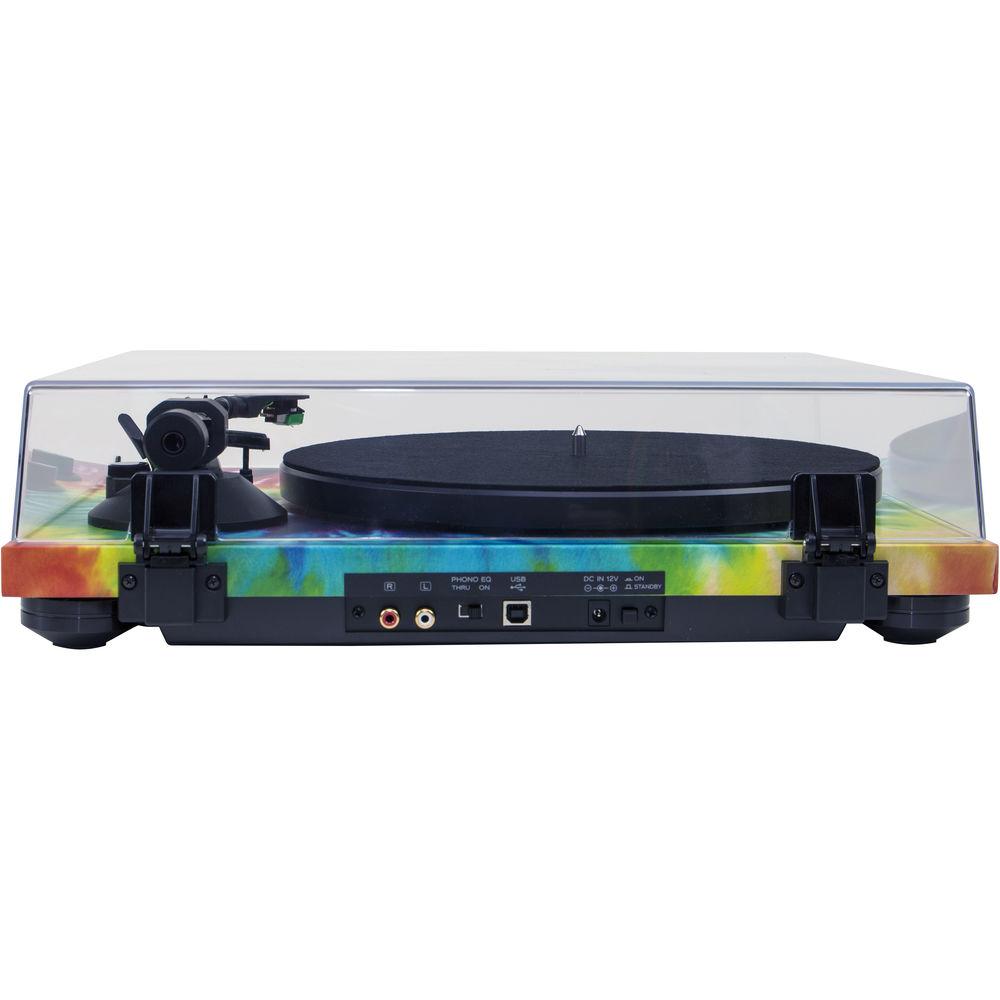

- Built-In USB Digital Output and Analog Phono/Line Output
- An onboard analog-to-digital converter allows you to transfer music via USB to your computer to create CD-quality backups of your favorite albums. In addition, a pair of gold-plated RCA connectors are employed for reliable connection to either the line or phono inputs of your receiver or amplifier.
- Corrosion-Resistant Gold-Plated Terminals
- Gold-plated terminals on the headshell connectors prevent oxidation over time.
- Static Balanced S-Shaped Tonearm
- Due to increased mass, an S-shaped tonearm is employed for enhanced tracking accuracy. It is coupled with an adjustable anti-skating mechanism.
- 2-Speed Turntable for LP/EP Record Playback
- Designed for albums or singles, the TN-420-TD features both 33 1/3 and 45 rpm playback and a manual tonearm lifter for complete control of your music experience.
- Audio-Technica AT95E VM-Type Cartridge
- The TN-420-TD comes with a replaceable Audio-Technica AT95E VM-equivalent cartridge designed for accuracy, clarity, and detail.
- Additional Features
-
- Tie-dye finish via a hydro-graphics printing process
- Replaceable headshell
UPC: 043774033409 In the Box Teac TN-420-TD Stereo Turntable with USB EP Adapter RCA Audio Cable Platter Felt Mat Headshell Counterweight Dust Cover 2 x Rubber Feet for Dust Cover 2 x Hinges AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teac TN-420-TD Stereo Turntable with USB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeac TN-420-TD Specs | | | Speeds | 33 1/3, 45 rpm
Variation: ±2% | | Motor | DC motor | | Drive Mechanism | Belt drive | | Amplifier Type | MM type (On/Thru switchable) | | Wow and Flutter | 0.2% | | Signal-to-Noise Ratio | ≥67 dB (A-weighted, 20 kHz LPF)
≥60 dB (unweighted, 20 kHz LPF) | | Turntable Platter | Aluminum die-cast | | Platter Diameter | 12" (30 cm) | | | | Tonearm Type | Static balance, S-shaped | | Effective Arm Length | 8.8" (223 mm) | | Needle Pressure Range | 0 to 5 g | | Cartridge Weight | 3.5 to 6.5 g | | Anti-skating Adjustment | Supported | | | | Cartridge | VM-type Audio-Technica AT95E factory installed | | Mount | 0.5" | | Stylus | Shape: Elliptical
Construction: Bonded round shank | | Frequency Response | 20 Hz to 20 kHz | | Channel Separation | 20 dB at 1 kHz | | Channel Balance | 2 dB | | Needle Pressure Range | 2 g ±0.5 g | | Vertical Tracking Angle | 20° | | Phono Load Impedance Supported | 47 kOhm | | Output Voltage | 3.5 mV (1 kHz, 5 cm/sec) | | Cartridge Weight | 5.7 g ±0.5 g | | Headshell | Weight: 10 g including screws, nuts, and wires | | Replacement Stylus | Audio-Technica AT95E | | | | Connectors | 1 x stereo RCA gold-plated audio output
1 x USB Type-B output | | Output Voltage | Phono/line switchable
Phono Output: 4.5 mV (±3 dB)
Line Output: 120 mV (-13 dBV) | | Output Signal | USB: PCM 48 kHz / 16-bit | | OS Support | Windows: Windows 7, Windows 8, Windows 8.1, Windows 10
Mac: OS X Lion (10.7), OS X Mountain Lion (10.8), OS X Mavericks (10.9), OS X Yosemite (10.10), OS X El Capitan (10.11), macOS Sierra (10.12) | | | | Construction Material | Cabinet: MDF | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Power Consumption | Active: 1.5 W
Standby: <0.5 W | | Dimensions (W x H x D) | 16.5 x 4.6 x 14.0" (420 x 117 x 356 mm) | | Weight (Approximate) | 10.8 lb (4.9 kg) | | | | Package Weight | 16.55 lb | | Box Dimensions (LxWxH) | 21.4 x 17.1 x 8.7" |
