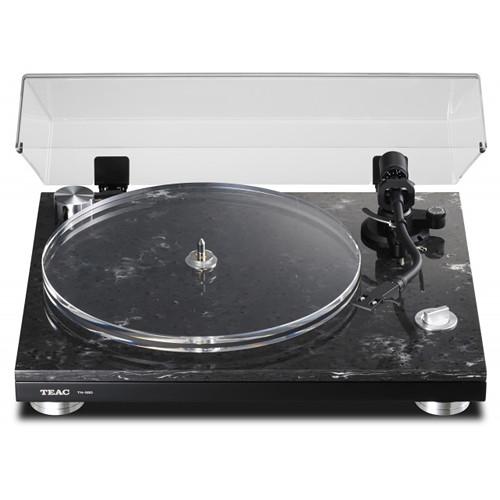

Product description Achieve near-direct-drive accuracy from a belt-drive system with the Teac TN-550-B Turntable. Its PRS3 technology is designed to detect and adjust for minute changes in the platter rotation speed for a more accurate listening experience. It has a 2-speed design for playback of 33 1/3 and 45 rpm records and features a static balance, S-shaped, height-adjustable tonearm. RCA cables are included for instant connection to your hi-fi system. - Cogging-Free Belt Drive with Platter Rotation-Sensing Servo System (PRS3)
- This drive system employs a PRS3 (Platter Rotation Speed Servo System) designed to detect insensible changes of the platter rotation speed by a contactless optical sensor settled at the spindle base and controls motor speed after calculation by an on-board microcomputer. It realizes a belt-drive mechanism with higher precision similar to that of a direct drive.
Cogging is a phenomenon in which the periodic attraction of the armature and rotor inside the motor is dependent on the rotation angle, resulting in a fine pulsing. For example, if you turn the axle of a motor with your fingers, you'll feel the rotation occurring in steps. - Electrical-Controlled Speed Selector
- The speed selector employs an electronically-controlled speed-changing mechanism between 33 1/3 and 45 rpm, which does not require changing the pulley to another one with a different diameter.
- Clear Acrylic Platter
- The 16mm-thick full-size platter made of acrylic resin is designed to suppress unwanted sympathetic vibrations.
- High-Precision Spindle and Anti-Static Carbon-Coated Base
- By applying carbon coating to the spindle bearing, hardness is increased and electrification is controlled, providing enhanced static electricity performance.
- Large Torque Motor with a Floating Structure
- Employing a rubber cushion, a large torque motor is settled to float when attached to the chassis. This is designed to suppress the transmission of vibrations from the motor to the chassis.
- Flat-Type Belt
- A flat belt is employed to transmit energy to the motor drive. It is also designed to be quiet and provide excellent durability.
- Chassis with Dual-Layer Structure
- The cabinet employs artificial marble with high-density MDF. By combining different materials in a two-layer structure, this design abates their inherent resonant frequencies and realizes a clear sound, allowing the artists' voices, which are inscribed in the grooves of the record, to come out vividly. The weight of the artificial marble allows the turntable to realize a heaviness of about 19.9 lb. While it has a rigid structure, it is also designed to assure a high feedback margin.
- Honeycomb-Shaped Bottom Case
- The bottom cover employs a honeycomb pattern designed to prevent unwanted sympathetic vibrations.
- Height-Adjustable Feet
- The four machined-aluminum feet can have their heights adjusted independently, allowing the turntable to be set up on surfaces that are not flat. In addition, cushioned rubber is used between where the feet are installed and the body of the unit to suppress the feedback of sound to the cabinet.
- Anti-Skating Mechanism
- The static-balanced S-shaped tonearm features enhanced flexibility. You can adjust the tone-arm height optimally for the shell and cartridge you are using. Also, PC-Triple C conductor cables are employed for the tone-arm cable so that the phono signal captured by the needle from the vinyl record is transmitted with augmented quality. PC-Triple C stands for "Pure Copper-Continuous Crystal Construction" and is designed to allow signals to flow smoothly by eliminating signal obstructions.

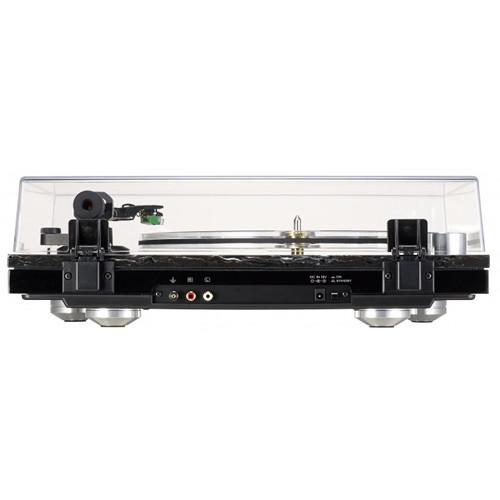

- Gold-Plated RCA Pin-Jacks for Phono Audio Output
- A pair of RCA Pin jacks are employed on the back panel to deliver phono-level output.
- MM-Type Cartridge
- An MM-type cartridge is already installed at the factory.
- Detachable Dust Cover
- Remove the dust cover from the unit if you'd like to watch your record spin.
- Additional Features
- Machined-aluminum EP adapter
UPC: 043774032280 In the Box Teac TN-550-B Turntable EP Adapter Counter Weight Headshell Cartridge Acrylic Platter Dust Cover 2 x Hinges Pulley Cover Flat Belt 4 x Washers Hex Wrench RCA Audio Cable with GND Terminals AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teac TN-550-B Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeac TN-550 Specs | | | Speeds | 33 1/3, 45 rpm | | Motor | DC motor | | Drive Mechanism | Belt drive | | Servo | PRS3 (Platter Rotation Speed Servo System) | | Rotation Speed | Variation: ±0.2% | | Wow and Flutter | 0.1% | | Signal-to-Noise Ratio | >67 dB (A-weighted, 20 kHz LPF) | | Turntable Platter | Material: Acrylic
Diameter: 12.0" (300.0 mm)
Thickness: 0.6" (16.0 mm)
Weight: Approximately 3.1 lb (1.4 kg) | | | | Tonearm Type | Static balance, S-shape, height-adjustable | | Effective Arm Length | 8.8" (223.0 mm) | | Overhang | 0.7" (18.0 mm) | | Tracking Error Angle | <3° | | Needle Pressure Range | 0 to 0.2 oz (0 to 5.0 g) | | Cartridge Weight | Supported: 0.5 to 0.8 oz (15.0 to 23.0 g) including headshell | | Height Adjustment Range | Approximately 0.2" (6.0 mm) | | Anti-skating Adjustment | Supported | | | | Cartridge Type | MM-type | | Output Voltage | 4.5 mV (1 kHz, 5 cm/sec) | | Cartridge Weight | 0.229 oz ±0.007 oz (6.500 g ±0.200 g) | | Head-shell Weight | 0.4 oz (10.0 g) including screws, nuts, and wires | | | | Connectors | 1 x L/R RCA gold-plated audio output | | Output Voltage | 4.5 mV ±3 dB | | Output Signal | Not specified by manufacturer | | OS Support | None | | | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Power Consumption | Active: 1.5 W
Standby: <0.5 W | | Dimensions (W x H x D) | 16.9 x 5.2 x 14.0" (430.0 x 131.5 x 355.0 cm) | | Weight (Approximate) | 19.9 lb (9.0 kg) | | | | Package Weight | 27.05 lb | | Box Dimensions (LxWxH) | 21.4 x 17.8 x 8.4" |
