User Manual for TeachLogic AK-280 Periodic Log Antenna Kit Click to enlarge the picture
Contents of the user manual for the TeachLogic AK-280 Periodic Log Antenna Kit
- Product category: Components & Accessories TeachLogic
- Brand: TeachLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TeachLogic Components & Accessories
|
User manual for the TeachLogic AK-280 Periodic Log Antenna Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TeachLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TeachLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TeachLogic product will considerably shorten its lifespan!
|

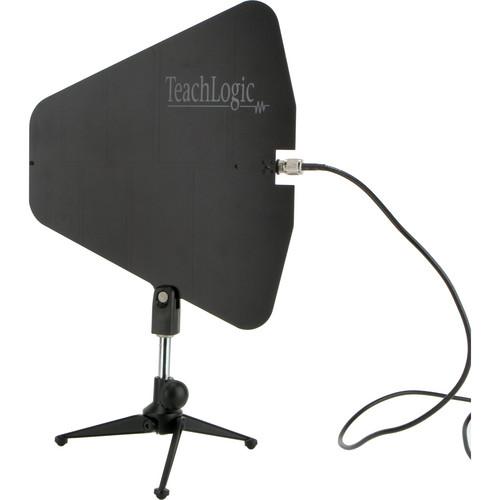

Product description The AK-280 Periodic Log Antenna Kit from TeachLogic includes the Periodic Log Antenna, a Desk Stand, and an Interconnect Cable.
The PS-2280 Log Periodic Dipole Array Antenna increases the transmission distance of the transmitter to 1,000’ (304.8 m) or it will increase the sensitivity of the diversity receiver. Two antennas are required for diversity receiver.
The DS-2280 Desk Top Stand is a folding tripod stand that mounts to the Periodic Log Directional Antenna, holding it in a vertical position.
The TNC-5 Interconnect Antenna Cable for the Periodic Log Directional Antenna connects the transmitter or receiver. - PS-2280 Log Periodic Dipole Array Antenna Features
-
- Increases range of UHF receivers including AirLink
- Weather-resistant
- High sensitivity
- Increases the signal receiving range
In the Box TeachLogic AK-280 Periodic Log Antenna Kit PS-2280 Log Periodic Dipole Array Antenna DS-2280 Desk Top Stand TNC-5 Interconnect Antenna Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic AK-280 Periodic Log Antenna Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeachLogic AK-280 Specs | | | Length | Interconnect: 5.0' (1.5 m) with male TNC connectors | | | | RF Frequency Range | 600 to 900 MHz | | Antenna Gain | 6 dB typical (on axis) | | Impedance | 50 Ω | | Reception Pattern | Directional; Cardioid | | Beam Width | 100° | | Connector | TNC | | Mount | Integrated swivel adapter bracket with 5/8"-27 threads | | Recommended Cable | Low loss 50 Ω | | Dimensions | 10.37 x 11.37" (263.39 x 288.79 mm) | | Weight | 10.2 oz (289.1 g) |
