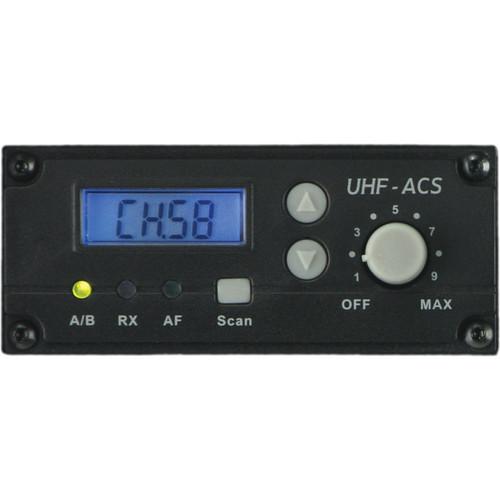

User Manual for TeachLogic DR-800 Titan Neo AirLink Auto Scan Receiver Module for Wireless Microphone Click to enlarge the picture
Contents of the user manual for the TeachLogic DR-800 Titan Neo AirLink Auto
- Product category: Components & Accessories TeachLogic
- Brand: TeachLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TeachLogic Components & Accessories
|
User manual for the TeachLogic DR-800 Titan Neo AirLink Auto contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TeachLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TeachLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TeachLogic product will considerably shorten its lifespan!
|
Product description The DR-800 Titan Neo AirLink Auto Scan Receiver Modulefrom TeachLogic enables the use of one wireless microphone with the Titan Neo Portable Wireless UHF Sound System. It has 96 selectable channels to assure interference-free operation and is equipped with a diversity antenna for added sensitivity. This 96-channel UHF receiver has a frequency range of 640 to 664 MHz. The receiver's auto scan feature automatically selects a clear channel and locks on. However, you can override the auto scan and manually select a channel of your choice. Two DR-800 modules can be installed in a Titan Neo System for dual wireless microphone operation. - Auto scan to the next available channel
- Dual diversity UHF receiver
- 96 channels, selectable (640 to 664 MHz)
- LCD for channel number or frequency display
- RF (Radio Frequency) and AF (Audio Frequency) presence light
In the Box TeachLogic DR-800 Titan Neo AirLink Auto Scan Receiver Module for Wireless Microphone Limited 3-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic DR-800 Titan Neo AirLink Auto Scan Receiver Module for Wireless Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeachLogic DR-800 Specs | Operating frequency bands | 640 to 664 MHz | | Selectable Channels | 96 pre-programmed | | Maximum Deviation | 80 kHz, with level limiting | | Dynamic Range | 110 dB | | THD | >0.5% | | Pre-Emphasis | 50 μs | | De-Emphasis | 50 μs | | Sensitivity | 4 μV @ 30 dB SINAD | | Squelch | Tone Key and Noise Lock | | Frequency Response | 50 Hz, -17 kHz, ± 3 dB | | Operating Range | >300' (91 m) | | Power Requirements | 12 to 15 VDC, 1 A | | Dimensions (W x H x D) | 3.5 x 1.5 x 5.0" (88.9 x 38.1 x 127.0 mm) | | Weight | 4.0 oz (113.3 g) |
