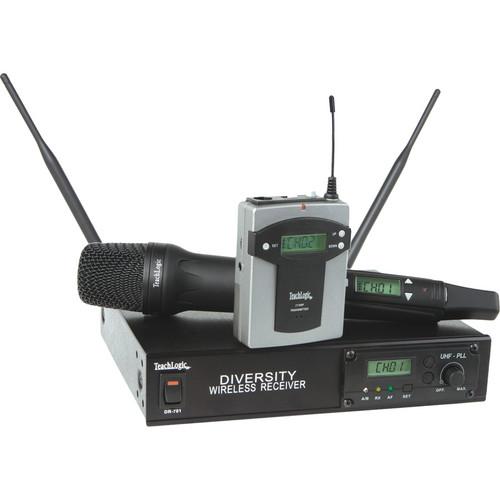

Product description The HH-960 UHF 96-Channel AirLink Wireless Handheld Microphone System from TeachLogic includes a DR-701 Diversity Receiver and UT-96HH Handheld Microphone/Transmitter. This system offers 96 fully-selectable, user pre-programmable frequencies, and the ability to use up to 8 systems simultaneously. The 96 selectable frequencies assure selection of an interference-free transmission channel.
The AirLink Wireless Microphone System is suitable for use in a number of applications such as PA rental, broadcast, theater, houses of worship, educational facilities, and video production. The DR-701 Diversity Receiver features a half-wave antenna that enhances the transmission connectivity. The AirLink UT-96HH Wireless Handheld Microphone gives the presenter total freedom of movement with assured connectivity and optimum sound quality. In addition, since the AirLink system components are interchangeable, the transmitter can work with any AirLink receiver, including the Titan system. - UT-96HH Handheld Radio Frequency Microphone/Transmitter The UT-96HH Handheld Radio Frequency Microphone/Transmitter from TeachLogic is designed for presenters or interactive participants. It features 96 selectable UHF channels. Its light weight and ergonomic design render user comfort. The internal shock mount features very low handling noise. The unidirectional condenser microphone exhibits good vocal quality and extra sensitivity. The built-in windscreen prevents breath pops and wind noise. The microphone comes with three assorted color end caps for easy identification.
- 96 selectable UHF channels
- Push-button channel selection
- LCD readout for selected channel number, frequency, and battery condition
- High/low/mute sensitivity and on/off switch
- Condenser microphone element
- Unidirectional pick-up pattern
- Three assorted color end caps
- Drop-in charger compatible
- Requires two AA-size batteries (sold separately)
In the Box Bundle Items DR-701 AirLink Receiver zwryfafywtfdycabfbvtystesetayxes UT-96HH Handheld Radio Frequency Microphone/Transmitter - 3 x Assorted Color End Cap
- Limited 3-Year Warranty on Parts & Labor
Also Includes - Limited 3-Year Warranty on Parts and Labor
Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic HH-960 UHF 96-Channel AirLink Wireless Handheld Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - UT-96HH Handheld Radio Frequency Microphone/Transmitter
| Frequency Bands | Operating: 640 to 664 MHz | | Selectable Channels | 96 pre-programmed | | Maximum Deviation | 80 kHz, with level limiting | | Dynamic Range | >80 dB | | THD | <1% | | Pre-Emphasis | <50 μs | | De-Emphasis | <50 μs | | Capsule | Microphone: Condenser | | RF Output Power | 10 mW | | Volume | Audio: High / low / mute | | Operating Life | On Full Charge
NiMH Battery: 11 hours
Alkaline Battery: 14 hours | | Dimensions | Top Diameter: 1.8" (45.7 mm)
Handle Diameter: 1.3" (33.0 mm)
Length: 10.5" (266.7 mm) | | Weight | 10.5 oz (297.6 g) | | | | Box Dimensions (LxWxH) | 11.2 x 2.4 x 2.2" |
