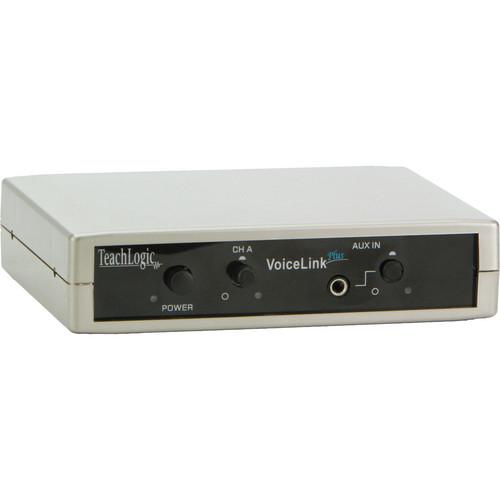

Product description The IMA-100 Voicelink Plus 1-Channel Infrared Microphone Receiver/Amplifier with Power Supply from TeachLogic features a 1-channel infrared receiver and two 10W amplifiers to power two or four speakers (sold separately). This receiver/amplifier is a part of the Voicelink Plus Wireless Classroom Microphone System, which also consists of a microphone/transmitter and ceiling sensor. The ceiling sensor (sold separately) senses the infrared signal emitted from the microphone/transmitter (sold separately) and sends the voice signal to the receiver. The receiver processes the signal and produces an analog signal which is fed to the power amplifier. The output of the amplifier is fed to the speakers. The receiver can also accept an input from another audio source such as an iPod, computer, DVD, or video projector via the auxiliary input on the front panel. The receiver/amplifier can be placed on desk top, mounted on the wall, or on top or under a shelf using the mounting flanges and hardware provided. - 1-channel infrared receiver
- One 4-pin Phoenix speaker out connector
- One line level auxiliary input on the front panel with adjustable gain, 3.5mm input jack
- Includes mounting brackets
In the Box TeachLogic IMA-100 Voicelink Plus 1-Channel Infrared Microphone Receiver/Amplifier with Power Supply Mounting Brackets & Hardware Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic IMA-100 Voicelink Plus 1-Channel Infrared Microphone Receiver Amplifier with Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeachLogic IMA-100 Specs | Input | Infrared FM | | Modulation | FM wide-band | | Frequencies | Reception (Channel A): 2.08 MHz | | Infra-red Wavelength | 850 nm | | Tone Signal | Channel A: 32.768 kHz | | De-Emphasis | 50 μs | | Frequency Response | 50 Hz, -13 KHz, ± 3 dB | | S/N Ratio | >65 dB | | THD | <1% @ 1 kHz | | Nominal Deviation | ±10 kHz | | Maximum Deviation | ±25 kHz | | Sensor Input | 2 x RCA | | AUX Input | 3.5 mm with gain control, front panel | | Output Power | Two Amplifiers:
Each: 10 W RMS
Total: 20 W RMS | | Output Impedance | 4 Ω | | Output Connection | 1 x 4-pin Phoenix | | Power Supply | 12 VDC / 0.6 A / 7.2 W | | Enclosure | ABS | | Dimensions (W x H x D) | 5.0 x 1.0 x 4.5" (127.0 x 25.4 x 114.3 mm) | | Weight | 1.00 lb (0.45 kg) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 10.3 x 7.9 x 1.8" |
