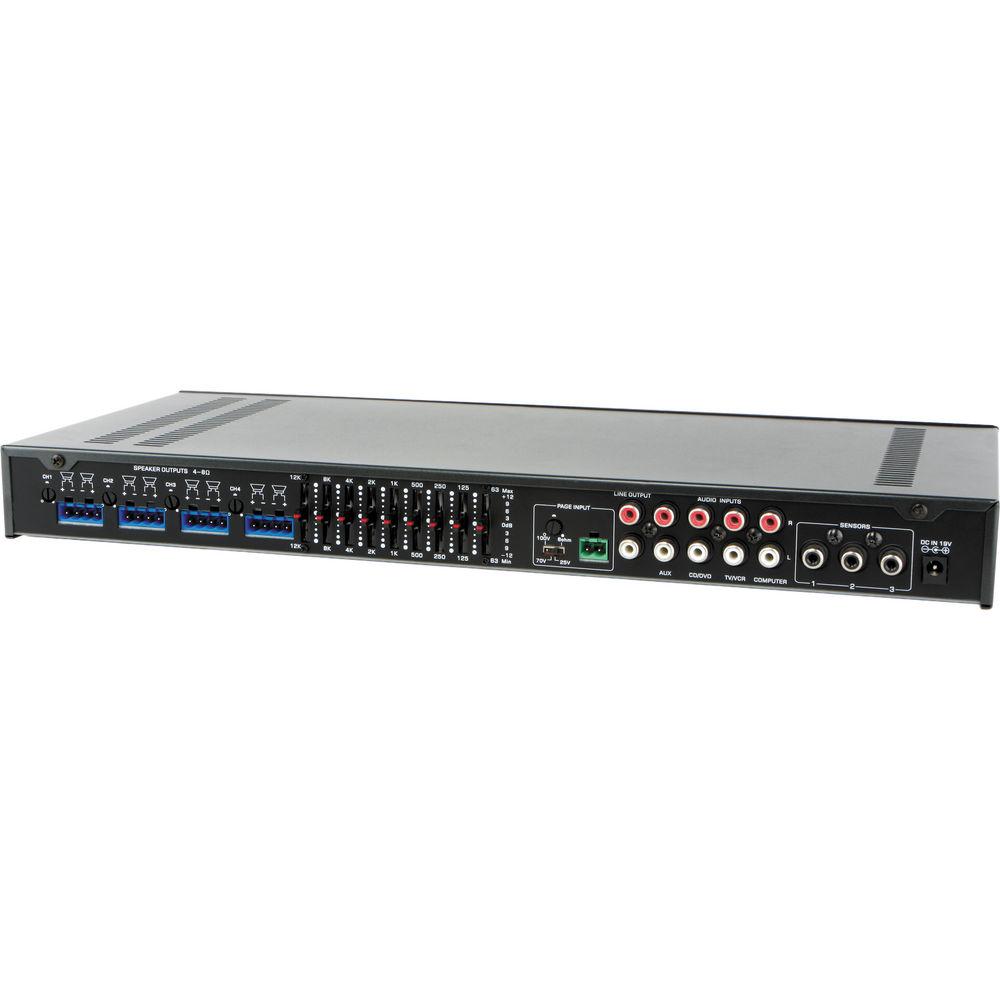

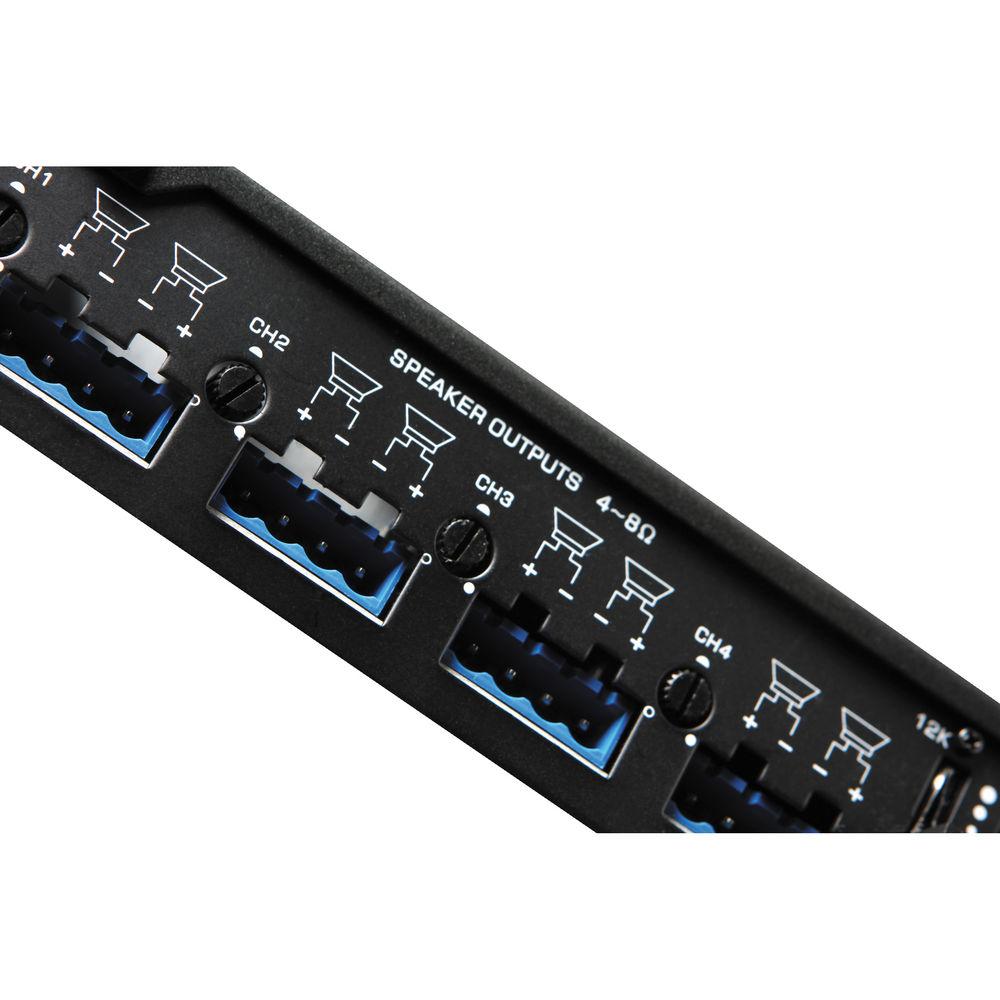

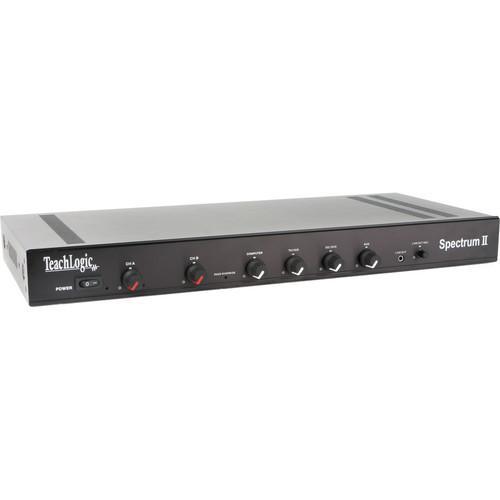

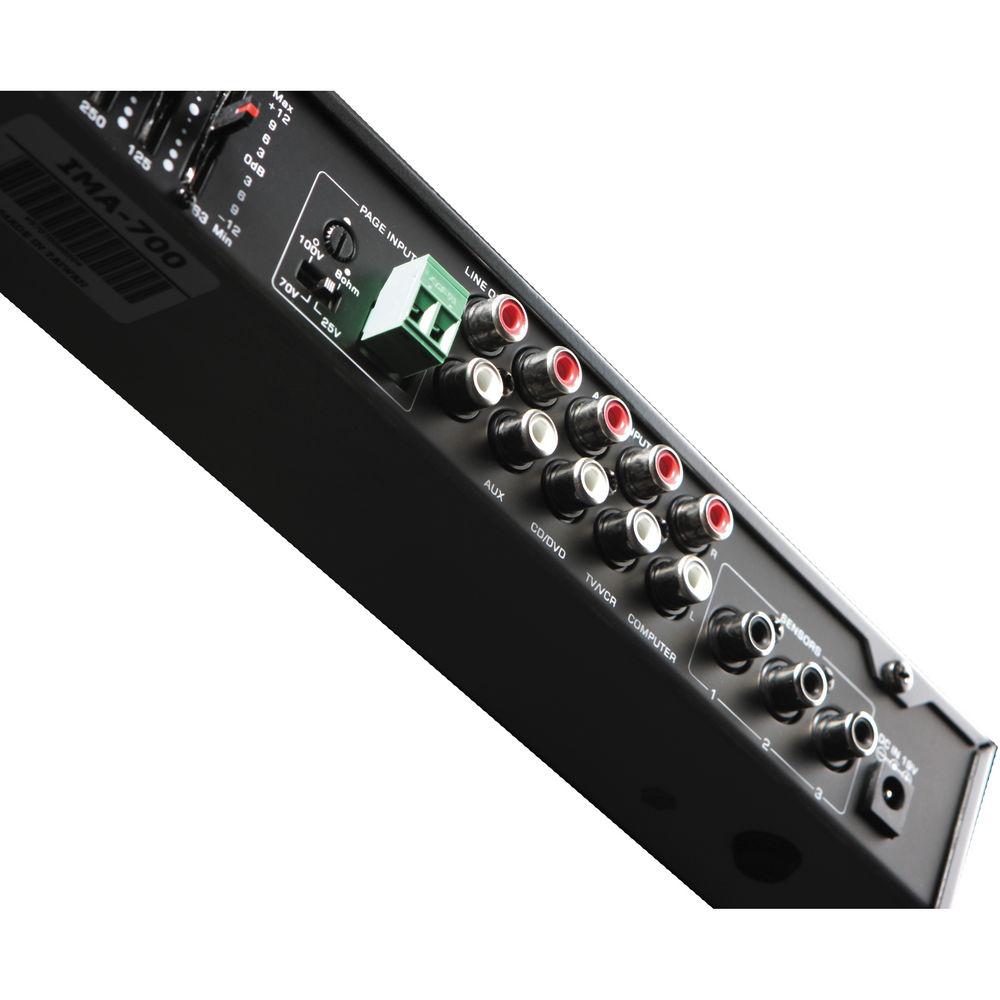

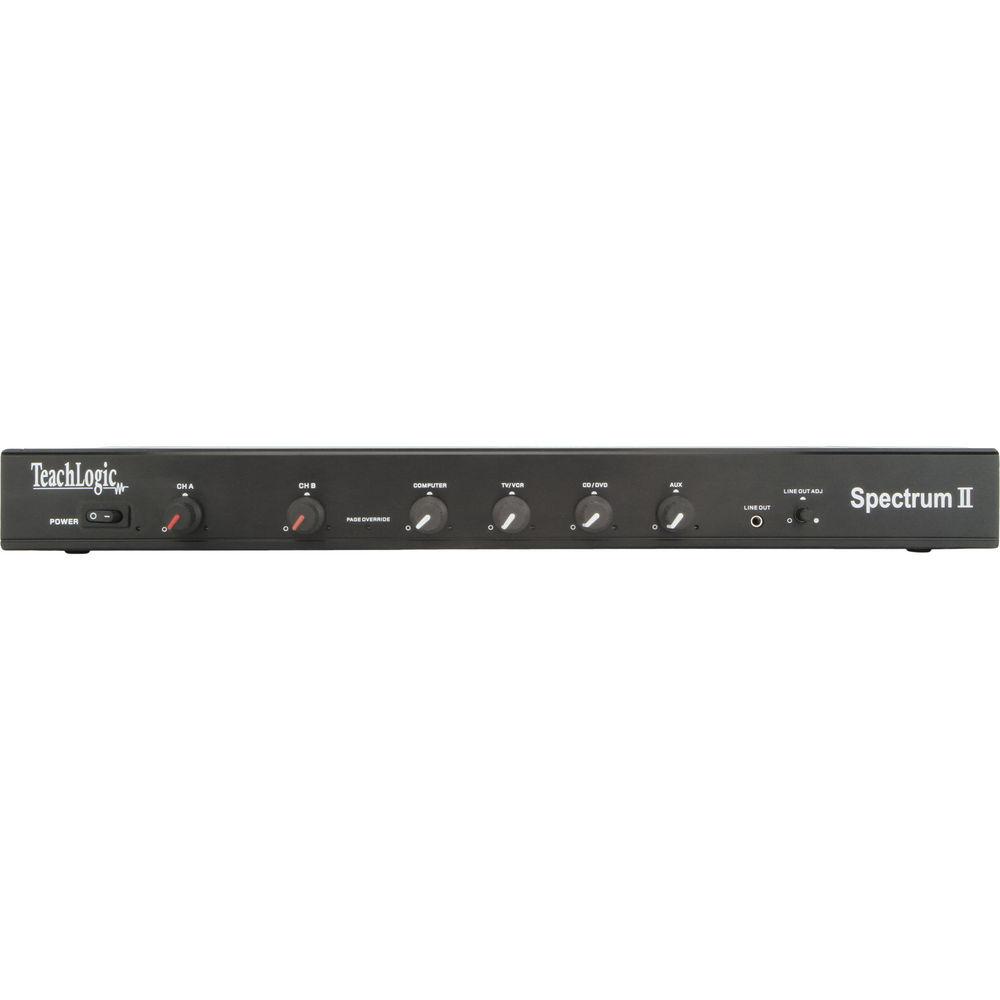

Product description The IMA-700 Spectrum II Amplifier and IR Receivers Base Station from TeachLogic features 4 power amplifiers with individual gain controls, 2 Infrared wireless microphone receivers, and a switching power supply. - Four power amplifiers (18W each with individual gain controls)
- Powers up to eight 8Ω speakers
- Two Infrared wireless microphone receivers
- Four stereo line level auxiliary inputs
- Front panel audio output for personal FM system with gain control (3.5mm)
- Nine band equalizer for extra fine acoustic tuning
- Page over-ride (muting) with page passthrough to classroom speakers
- Two line level outputs (pre-fader) for recording or feed to other system
In the Box TeachLogic IMA-700 Spectrum II Amplifier and IR Receivers Base Station 4 x Power Amplifier 2 x Infrared Wireless Microphone Receiver Switching Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic IMA-700 Spectrum II Amplifier and IR Receivers Base Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeachLogic IMA-700 Specs | Input | Receiver: Infrared FM | | Modulation | FM wide-band | | Frequencies | Reception: Channel A: 2.08 MHz
Channel B: 2.54 MHz | | Infra-red Wavelength | 850 nm | | Tone Signal | Channel A: 32.768 kHz | | De-Emphasis | 50 μs | | Frequency Response | 40 Hz, -18 kHz, ± 3 dB | | S/N Ratio | >65 dB | | THD | <1% @ 1 kHz | | Nominal Deviation | ±10 kHz | | Maximum Deviation | ±25 kHz | | Sensor Input | External: 3, RCA | | Connectivity | Coverage: 2,500 feet² | | AUX Inputs | 4 x aux, line level, dual RCA | | AUX Outputs | 1 x aux, line level, dual RCA | | Line Output | 3.5 mm with gain control, front panel | | Override Inputs | Page Over-Ride: 8 Ω, 25, 70, and 100 V | | Equalization | 9-band ±12 dB | | Output Power | 4 amplifiers, 18 W each (rms), 72 W total (rms) | | Output Impedance | 4 Ω | | Output Connection | 4 x phoenix connector | | Power Supply | 19 VDC / 4.75 A / 90 W
CE, CSA, and UL listed | | Dimensions (W x H x D) | 17.00 x 1.75 x 7.50" (43.18 x 4.45 x 19.05 cm) | | Weight | 5.20 lb (2.36 kg) |
