User Manual for TeachLogic Infrared Dome Sensor Click to enlarge the picture
Contents of the user manual for the TeachLogic Infrared Dome Sensor
- Product category: Components & Accessories TeachLogic
- Brand: TeachLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TeachLogic Components & Accessories
|
User manual for the TeachLogic Infrared Dome Sensor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TeachLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TeachLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TeachLogic product will considerably shorten its lifespan!
|

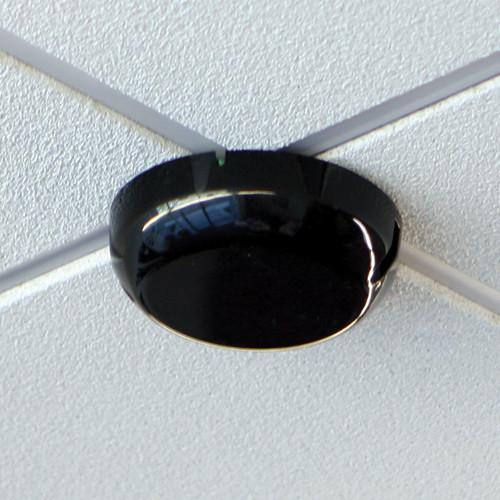

Product description TeachLogic's Infrared Dome Sensor needs to be installed on the ceiling at least 3' from the video projector. It comes with a mounting/support bracket and 50' of plenum rated cable with RCA connector on each end. The ideal location for the dome sensor would be in the center of the ceiling. This will provide a clear signal path for the IR transmission from the transmitter to the dome sensor without obstruction. In addition, you will have 360° coverage and will minimize the transmission distance for more reliable performance. It collects the infrared transmission signal via 6 large detecting diodes. The sensor is connected to the mixer/amplifier via a plenum rated cable terminated with RCA connectors. The mixer/amplifier supplies the power to the sensor. - Easily installs on ceiling "T" bar with track bracket
- 6 large receiving diodes for infrared reception
In the Box TeachLogic Infrared Dome Sensor 50' 75Ω Dual-Shielded Plenum-Rated Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic Infrared Dome Sensor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeachLogic ICS-55 Specs | Operating Frequencies | 2.3 mHz to 2.8 mHz | | IR Receiver | 6 large lens diodes | | Coverage | 360° | | Range | 40-50' (12.19-15.24 m) line of sight, 2500 ft2 (232.25 m2) | | Mounting | Clip-on "T" bar bracket | | Connector | Female RCA | | Indicator Lights | Green LED for Power On | | Cable | 75 ohm
Dual-shielded
Plenum-rated | | Cable Length | 50' (15.24 m) | | Dimensions | 4.62 x 1.37" (11.73 x 3.47 cm) | | Weight | 0.46 lbs (0.2 kg) |
