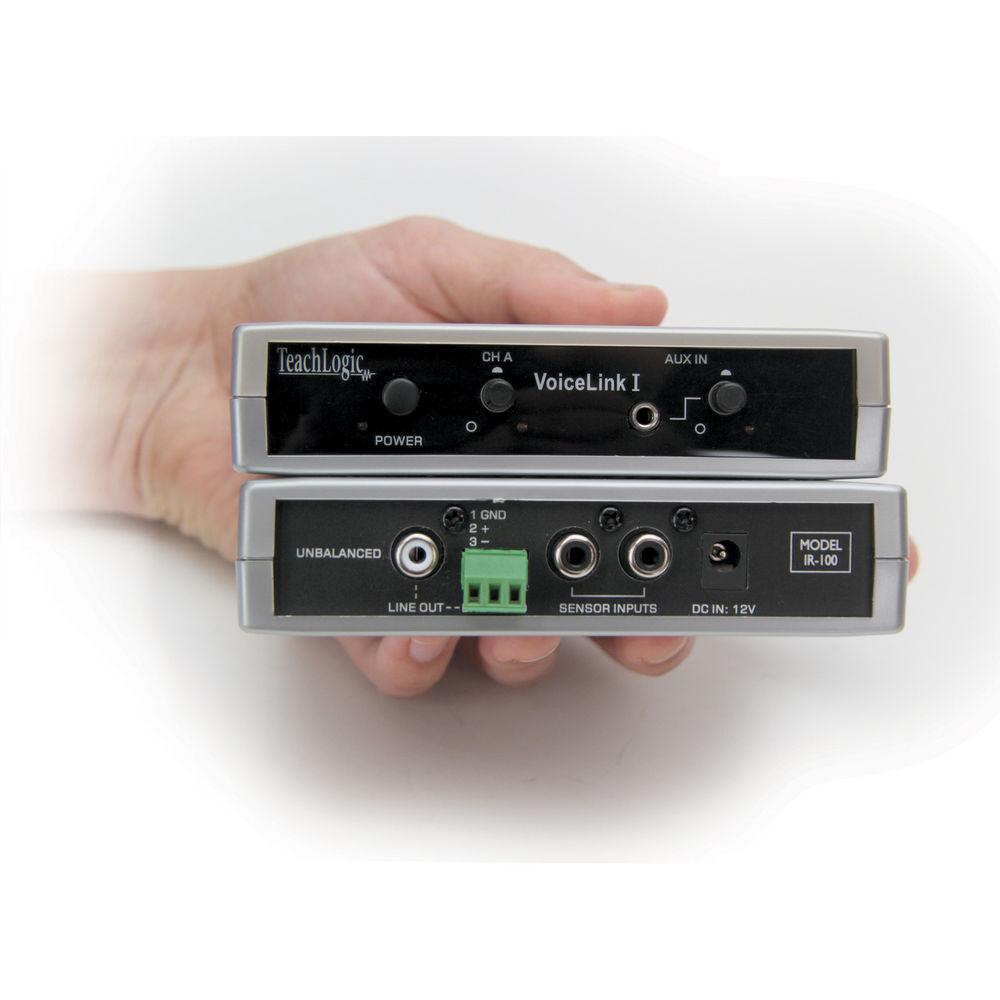

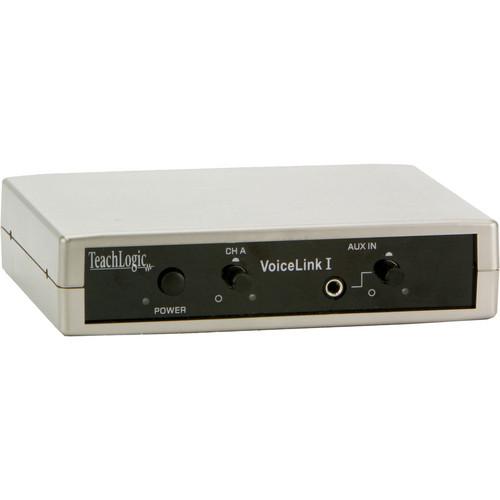

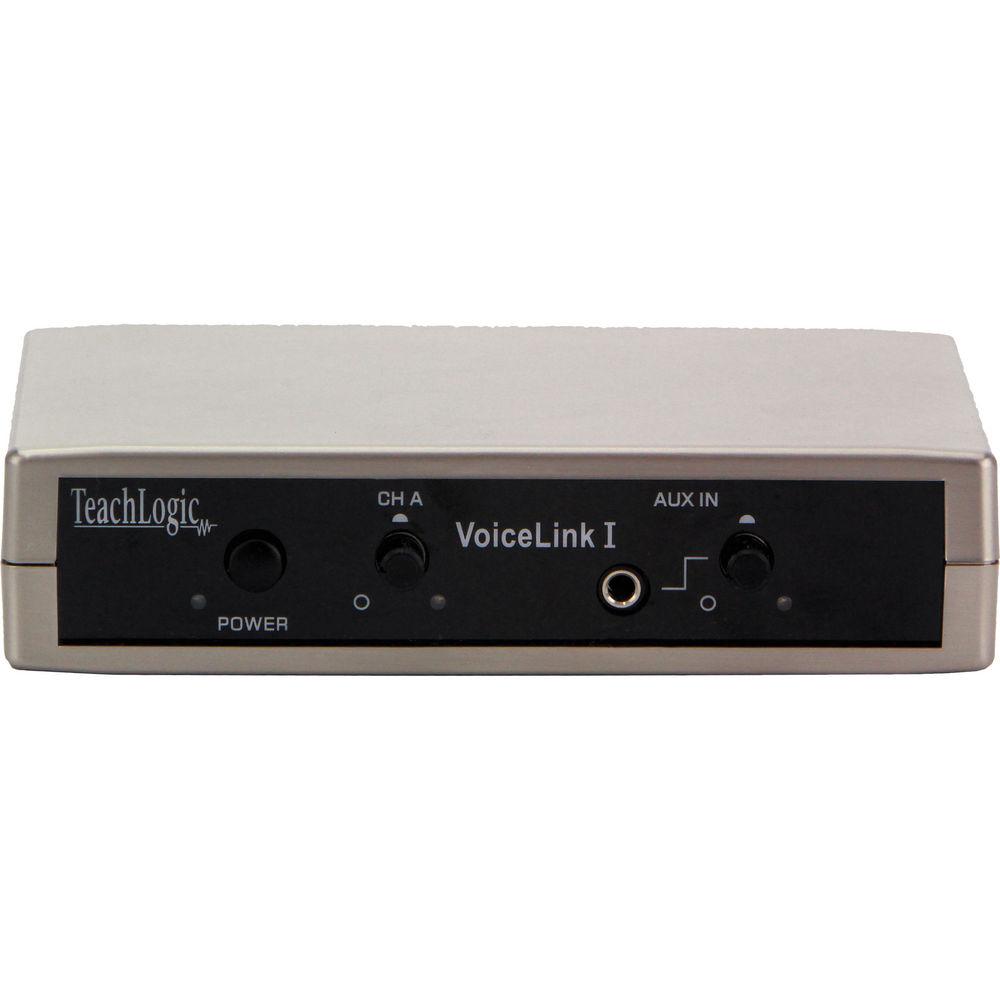

Product description The IR-100 VoiceLink I 1-Channel Infrared Receiver with Power Supply from TeachLogic is a preamp-only receiver and is designed to be plugged into an existing power amplifier or the input of a multi-media sound system. This receiver is designed for use with the VoiceLink I Infrared Wireless Microphone Sound System. The VoiceLink I Wireless System will expand your multi-media sound system to include voice reinforcement via an infrared wireless microphone. The auxiliary input on the front panel of the receiver allows the input of an iPod, computer, or DVD to supplement the instructional program. - One infrared receiver channel
- One line level auxiliary input
- Line Level Output: Balanced (3-pin Phoenix) and unbalanced (RCA)
In the Box TeachLogic IR-100 VoiceLink I 1-Channel Infrared Receiver with Power Supply Mounting Brackets Limited 5-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic IR-100 VoiceLink I 1-Channel Infrared Receiver with Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeachLogic IR-100 Specs | Receiver | Input: Infrared FM | | Modulation | FM wide-band | | Frequency | Reception Frequencies:
Channel A: 2.08 MHz | | Wavelength | Infrared Wavelength: 850 nm | | Tone Signal | Channel A: 32.768 kHz | | De-Emphasis | 50 µs | | Frequency Response | 50 Hz, -13 kHz, ±3 dB | | S/N Ratio | >65 dB | | THD | <1% @ 1 kHz | | Nominal Deviation | ±10 kHz | | Maximum Deviation | ±25 kHz | | Input | External Sensor: 2 x RCA
Auxillary: 3.5 mm with gain control (front panel) | | Line Output | 1 V balanced line level
3-pin Phoenix connector
Unbalanced line level
RCA | | Power Supply | 12 VDC / 0.6 A / 7.2 W | | Enclosure | ABS | | Dimensions (W x H x D) | 5.0 x 1.0 x 4.5" (127.0 x 25.4 x 114.3 mm) | | Weight | 9.10 oz (257.98 g) |
