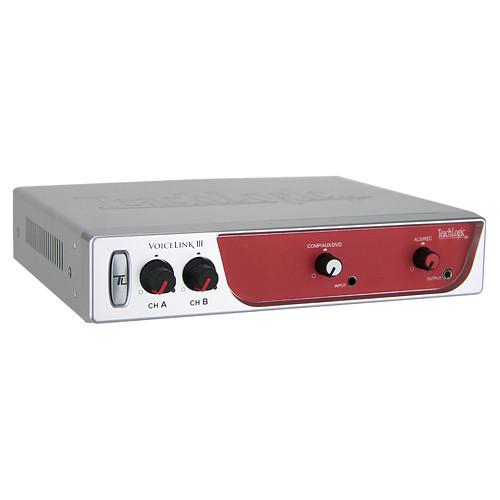

User Manual for TeachLogic IR-255 VoiceLink III IR Receiver Click to enlarge the picture
Contents of the user manual for the TeachLogic IR-255 VoiceLink III IR Receiver
- Product category: Components & Accessories TeachLogic
- Brand: TeachLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TeachLogic Components & Accessories
|
User manual for the TeachLogic IR-255 VoiceLink III IR Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TeachLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TeachLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TeachLogic product will considerably shorten its lifespan!
|
Product description The TeachLogic IR-255 VoiceLink III Receiver is a two-channel infrared wireless microphone system that can be an addition to an existing sound system whether in a classroom, conference room, banquet room, or district courtroom. The VoiceLink III features a two-channel infrared wireless microphone receiver for simultaneous use of two wireless microphones. It features an AUX/comp input and front panel output for Lesson Capture and uses a line level output, balanced (phoenix 3-pin), or unbalanced (1/4″ phone) to connect to an existing sound system. - Supports two infrared wireless microphone receivers
- Features a 3.5 mm front panel input for Aux/ Comp and a 3.5 mm front output for Lesson Capture
- Includes a balanced line output 3-pin phoenix connector and unbalanced 1/4" phone output connector
- Suitable for recording with an active board for internet podcasts
- Two external sensor inputs for maximum coverage
In the Box TeachLogic IR-255 VoiceLink III IR Receiver Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic IR-255 VoiceLink III IR Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeachLogic IR-255 Specs | Receiver Input | Infrared FM | | Modulation | FM Wide-band | | Reception Frequencies | Ch. A: 2.08 MHz
Ch. B: 2.54 MHz | | IR Wavelength | 850 nm | | Tone Signal | Ch. A: 32.768 KHz | | De-Emphasis | 50 μs | | Frequency Response | 40 Hz to 18 kHz, ±3 dB | | S/N Ratio | > 65 dB | | THD | < 1% @ 1 kHz | | Nominal Deviation | ± 10 kHz | | Maximum Deviation | ± 25 kHz | | Sensor Input | 2 x RCA | | Connectivity | 1,600 sq. ft (148.64 sq. m) | | Line Input | Computer/Aux 3.5 mm front or Dual RCA input rear panel | | Line Output | Balanced Line, Three Pin Phoenix connector
Unbalanced Line, 1/4" Phone
Lesson Capture with level control 3.5 mm front panel | | Power Supply | 12 VDC / 0.6 A / 7.2 W | | Dimensions (W x H x D) | 8.4 x 1.7 x 7.0" (21.3 x 4.3 x 17.8 cm) | | Weight | 1.4 lb (0.6 kg) |
