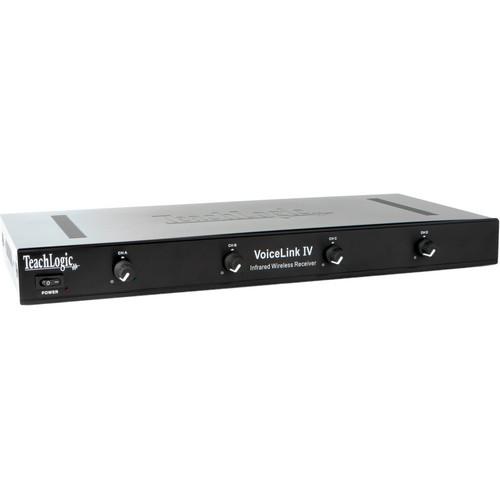

User Manual for TeachLogic IR-468N VoiceLink IV 2-Channel Infrared Receiver with Power Supply & 5.25' Phone Patch Cable Click to enlarge the picture
Contents of the user manual for the TeachLogic IR-468N VoiceLink IV 2-Channel Infrared
- Product category: Components & Accessories TeachLogic
- Brand: TeachLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TeachLogic Components & Accessories
|
User manual for the TeachLogic IR-468N VoiceLink IV 2-Channel Infrared contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TeachLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TeachLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TeachLogic product will considerably shorten its lifespan!
|
Product description The IR-468N VoiceLink IV 2-Channel Infrared Receiver with Power Supply & 5.25' Phone Patch Cable from TeachLogic is a 4-channel infrared wireless receiver for the simultaneous use of 4 wireless microphones. It is designed for use with the VoiceLink IV Infrared Wireless Microphone Sound System. It is suitable for courtrooms, panel presentations, or video conferencing where outside interference is intolerable and security is of the essence. - Four infrared wireless microphone receivers
- Individual volume controls
- One balanced line output combined (Channels A, B, C, & D), 3-pin Phoenix connector
- One combined line level balanced output (XLR)
- Four individual balanced line level outputs (XLR)
- Four external sensor inputs
- Rack mountable with RM-700 Rack Mount Kit (sold separately)
In the Box TeachLogic IR-468N VoiceLink IV 2-Channel Infrared Receiver with Power Supply & 5.25' Phone Patch Cable 5.25' (1.6m) Phone Patch Cable Limited 5-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic IR-468N VoiceLink IV 2-Channel Infrared Receiver with Power Supply & 5.25' Phone Patch Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeachLogic IR-468N Specs | Receiver | Input: Infrared FM | | Modulation | FM wide-band | | Frequency | Reception Frequencies:
Channel A: 2.08 MHz
Channel B: 2.54 MHz
Channel C: 2.30 MHz
Channel D: 2.80 MHz | | Wavelength | Infrared Wavelength: 850 nm | | Tone Signal | Channel A: 32.768 kHz | | De-Emphasis | 50 µs | | Frequency Response | 40 Hz, -18 kHz, ±3 dB | | S/N Ratio | >65 dB | | THD | <1% @ 1 kHz | | Nominal Deviation | ±10 kHz | | Maximum Deviation | ±25 kHz | | Input | External Sensor: 4 x RCA | | Coverage | Connectivity Coverage: 2,500.00 sq. ft. (0.19 sq. m) | | Line Output | Channels A, B, C, & D balanced line, XLR
Channels A, B, C, & D mixed balanced line, XLR
Channels A, B, C, & D mixed unbalanced line
1/4" phone
Switchable line / microphone | | Power Supply | 15 VDC / 1.5 A / 15 W | | Dimensions (W x H x D) | 17.00 x 1.75 x 8.25" (431.80 x 44.45 x 209.55 mm) | | Weight | 4.4 lb (2.0 kg) |
