User Manual for TeachLogic IRC-360 Quantum II Column Speaker with Built-In Receiver Amplifier & Wall Mount Bracket Click to enlarge the picture
Contents of the user manual for the TeachLogic IRC-360 Quantum II Column Speaker
- Product category: Assistive Listening Systems TeachLogic
- Brand: TeachLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TeachLogic Assistive Listening Systems
 |
User manual for the TeachLogic IRC-360 Quantum II Column Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TeachLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TeachLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TeachLogic product will considerably shorten its lifespan!
|

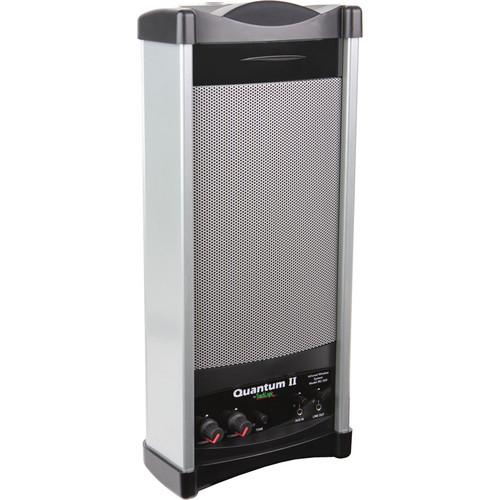

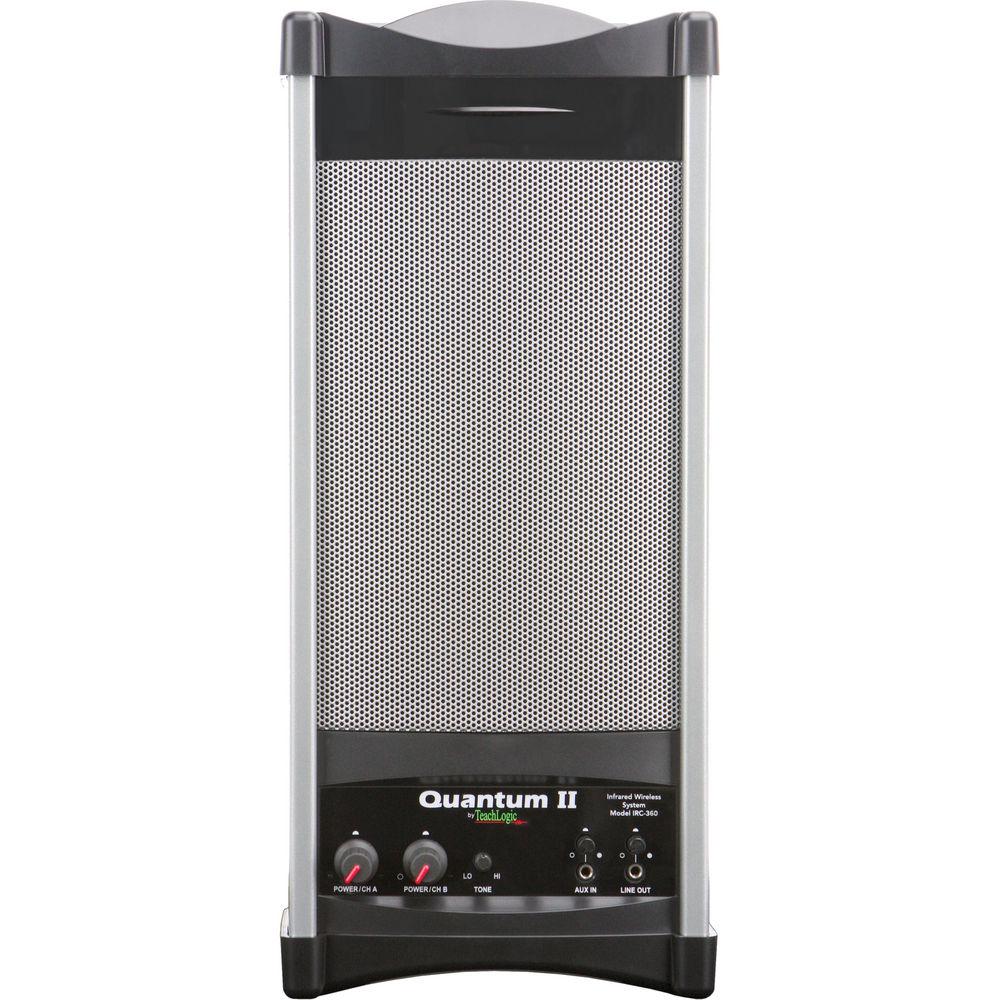

Product description The IRC-360 Quantum II from TeachLogic is designed for portable use or permanent installation. Along with wireless microphones/transmitters (not included), it forms a completely self-contained infrared wireless microphone sound system. The full-range coaxial speaker provides complete coverage of a typical classroom. The device also includes 2 integrated infrared wireless microphone receivers that allow you to simultaneously use two IR wireless transmitter microphones (sold separately). It also includes a powerful 30W, low-noise, Class D digital audio amplifier. - Two infrared receivers for simultaneous use of two IR wireless microphones (sold separately)
- Built-in wide-angle infrared sensor for reliable 180° IR reception
- Powerful 30W, low-noise, Class D digital audio amplifier
- Efficient full-range coaxial speaker for optimum vocal clarity
- Tone control, ± 6 dB to dial in treble & bass
- Digital equalization and limiting

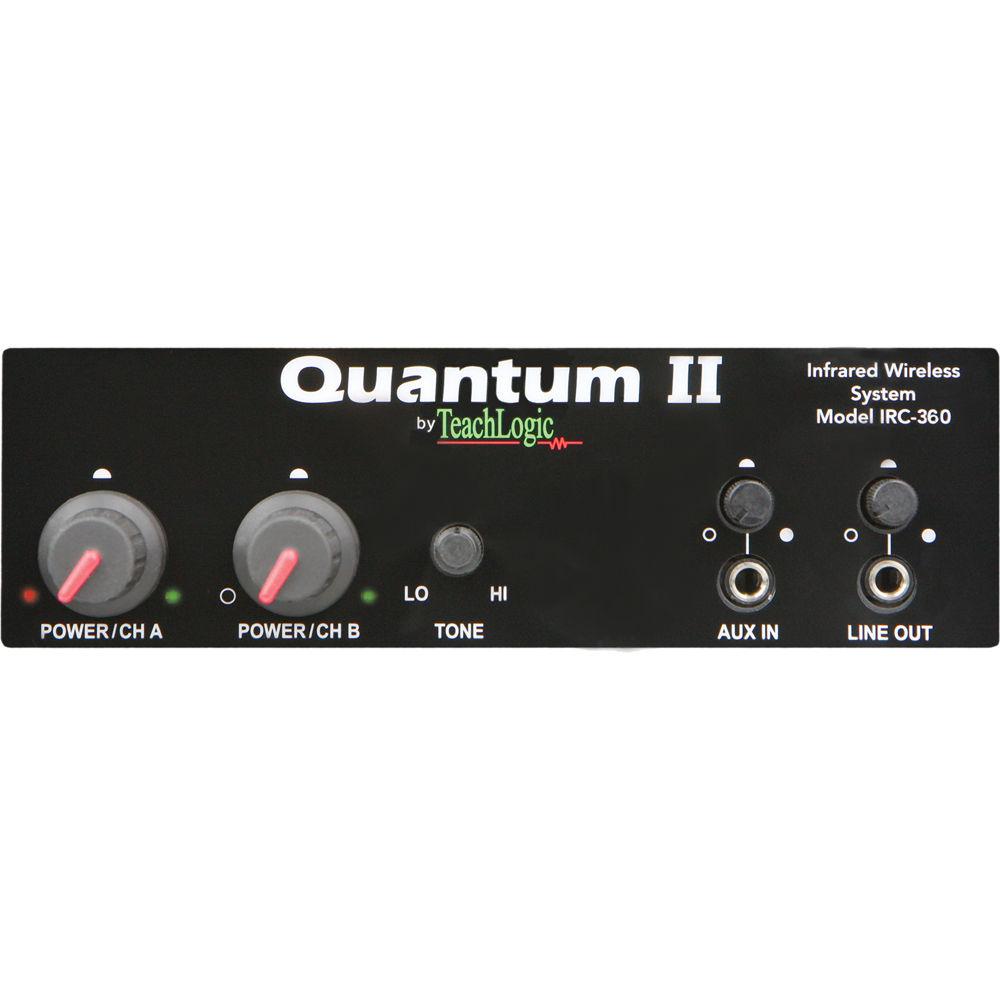

- Auxiliary line level input (3.5mm) for computer, interactive whiteboard, or MP3 player
- Program output (3.5mm), adjustable line level for Lesson Capture or Assistive Listening System connection
- Signal present indicator on IR inputs to verify presence of signal
- External speaker output for companion speaker (sold separately) to expand sound coverage for a total combined power output of 50W
- Two external sensor inputs for supplementary infrared sensors for extended IR coverage
- Structured aluminum enclosure for controlled sound dispersion
- Threaded brass insert for use with speaker stand for mobile application
- Wall mount bracket included
In the Box TeachLogic IRC-360 Quantum II Column Speaker with Built-In Receiver/Amplifier & Wall Mount Bracket AC-35 AC Switching Power Supply for Quantum II and Maxim II zawdbqtetetfucrvuacybtcrdfvfc Wall Mount Bracket Limited 5-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic IRC-360 Quantum II Column Speaker with Built-In Receiver Amplifier & Wall Mount Bracket in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeachLogic IRC-360 Specs | Input | Infrared FM | | Modulation | FM wide-band | | Reception Frequencies | Channel A: 2.08 MHz
Channel B: 2.54 MHz | | Wavelength | 850 nm | | Tone Signal | Channel A: 32.768 kHz | | De-Emphasis | 50 μs | | Frequency Response | 50 Hz to 15 kHz, ±3 dB | | S/N Ratio | >65 dB | | THD | <1% @ 1 kHz | | Nominal Deviation | ±10 kHz | | Maximum Deviation | ±25 kHz | | Sensor Input | 2 x RCA | | Coverage | 60' (18.2 m) line of sight | | AUX Input | 1 x 3.5 mm with gain control, front panel | | Line Output | 1 x 3.5 mm with gain control, front panel | | Equalization | Tone control, ±6 dB | | Output Power | 30 W RMS, Class D amplifier | | External Speaker Jack | 15 W / 4 Ω | | Output Connection | Two-terminal Phoenix connector | | Power Supply | 15 VDC / 2.3 A / 34.5 W (CE, CSA, and UL listed power supply included) | | Dimensions (W x H x D) | 6.25 x 14.00 x 4.75" (158.75 x 355.60 x 120.65 mm) | | Weight | 4.2 lb (1.9 kg) |
