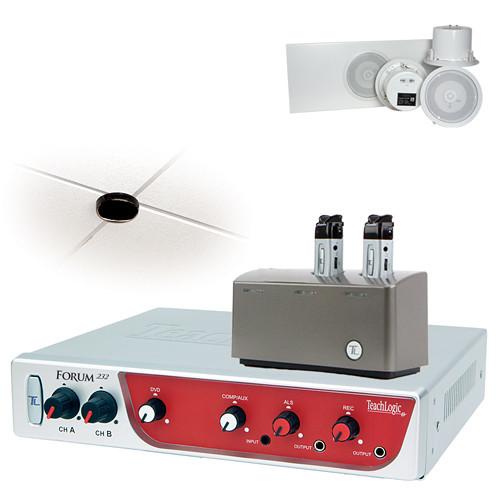

User Manual for TeachLogic IRF-2655 Forum 232 Wireless Classroom Microphone System with Sapphire Mic & 4 Ceiling-Mount Speakers Click to enlarge the picture
Contents of the user manual for the TeachLogic IRF-2655 Forum 232 Wireless Classroom
- Product category: Assistive Listening Systems TeachLogic
- Brand: TeachLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TeachLogic Assistive Listening Systems
|
User manual for the TeachLogic IRF-2655 Forum 232 Wireless Classroom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TeachLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TeachLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TeachLogic product will considerably shorten its lifespan!
|
Product description The IRF-2655 Forum 232 Wireless Microphone System from TeachLogic is a sound-field system for classroom presentation. This system consists of an IMA-232 Amplifier/Receiver Base Station, two IRT-60 Sapphire Microphone Transmitters with Lithium-ion Batteries, an ICS-55 Ceiling Sensor for IR connectivity throughout the room, and four CS-4 Ceiling Speakers. It also includes a BRC-55 Drop-In Charger for charging the Sapphire transmitters.
The IRF-2655 features a Digital Feedback Guard (DFG) that eliminates acoustical feedback. The wireless Sapphire microphone has a capsule which allows maximum gain before feedback. It has a 50W Digital Hybrid Class D amplifier. The system allows remote adjustment of inputs via the RS-232 wall panel controller. The unit has two infrared wireless microphones which can be used simultaneously. It provides two auxiliary line inputs for multi-media integration with even distribution of sound for the audio in the classroom. The Forum 232 has a Line level output for lesson capture and another output for Assistive Listening System (ALS).
The Forum 232 is an infrared wireless microphone sound system. It is the nucleus of the classroom sound field system which provides optimum voice reinforcement. The wireless function permits 360° connectivity throughout the classroom regardless of body position or orientation.
The system is comprised of an infrared detecting sensor installed in the ceiling. The sensor collects the IR wireless signal from the microphone/transmitter and sends a composite signal to the mixer/amplifier via the included 50' plenum-rated cable. The receiver transforms the composite signal into an analog audio signal which is fed to the amplifier mixer. Two other audio sources, such as computer, DVD, VCR, or projector can be plugged in to the Forum 232. The volume level of each input will be controlled by the individual volume control of each input. The audio will then be fed to the speakers in the room for even voice reinforcement throughout the room.
On the front panel of the Forum 232, there are two 3.5mm output jacks for interface with an assistive listening system (ALS) and lesson capture (REC). The rechargeable batteries offer 6 to 8 hours of usage per charge. The drop-in charger will recharge the batteries overnight, ready for another day's use. - Forum 232 2-Channel Infrared Receiver/Amplifier Base Station with Switching Power Supply The Forum 232 2-Channel Infrared Receiver/Amplifier Base Station with Switching Power Supply from TeachLogic is the nucleus of the Forum 232 Wireless Classroom Microphone System. This receiver is designed for use with the Sapphire or handheld microphone transmitters (all sold separately). These transmitters transmit the vocal signal via infrared light to the dome sensor (sold separately) installed on the ceiling. The signal is then sent via cable to the receiver input of the mixer/amplifier. The signal is detected and then processed through the power amplifier to the speakers.
The unit features RS-232 wall panel control of the line inputs, remote teacher security alert, teacher priority with instant attenuation of the line levels via Sapphire IRT-60 pendant mic (available separately), DFG (Digital Feedback Guard), and switchable anti-hum circuit on the computer input. - Dual infrared wireless microphone receivers
- Two Power Amplifiers: Total 50W RMS Class D amplifier, 25W each channel
- RS-232 wall panel control of line input levels
- Switchable computer anti-hum circuit with ON/OFF switch
- Teacher priority instantly attenuates all line inputs
- Three-band digital equalizer ±12dB
- Two stereo auxiliary inputs for DVD and computer/Aux
- Additional DVD input gain, adjustable +10 dB boost
- 3.5mm front-panel auxiliary input
- 3.5mm ALS output for assistive listening system with gain control on front panel
- 3.5mm REC output for lesson capture with gain control on front panel
- Powers up to 4 speakers (not included)
- Power sleep mode to conserve energy
- Rack or shelf mountable using optional kits (not included)
- Lightweight aluminum cover
- Infrared Dome Sensor TeachLogic's Infrared Dome Sensor needs to be installed on the ceiling at least 3' from the video projector. It comes with a mounting/support bracket and 50' of plenum rated cable with RCA connector on each end. The ideal location for the dome sensor would be in the center of the ceiling. This will provide a clear signal path for the IR transmission from the transmitter to the dome sensor without obstruction. In addition, you will have 360° coverage and will minimize the transmission distance for more reliable performance. It collects the infrared transmission signal via 6 large detecting diodes. The sensor is connected to the mixer/amplifier via a plenum rated cable terminated with RCA connectors. The mixer/amplifier supplies the power to the sensor.
- Easily installs on ceiling "T" bar with track bracket
- 6 large receiving diodes for infrared reception
- IRT-60 Sapphire Infrared Transmitter/Microphone w/ Security Alert & Rechargeable Battery Well suited for classrooms and forums, the rechargeable IRT-60 Sapphire Infrared Transmitter/Microphone from TeachLogic offers the same aesthetic design and feature set as the IRT-55 Sapphire, but with an additional remote "Security Alert", allowing teacher priority with instant attenuation of the line levels to work with the optional Forum 232 and Maxim III amplifiers. The Sapphire can be worn with a lanyard or clipped directly to your neckline collar and offers a high level output, reliable connectivity, and great definition. With a built-in breath filter, the Sapphire can function as a pass-around hand microphone. Tapping the power button momentarily mutes the microphone, allowing for private conversations. The 3.5mm auxiliary input allows wireless playback of your iPod, while a three-position slide switch provides selections of low, medium, or high microphone volume levels. The included Lithium-Ion battery offers up to 9 hours use. The Sapphire IRT-60 ships with a BRC-15 wall charger and a breakaway lanyard.
-
- Long-life Lithium-Ion battery
- Rechargeable via micro USB cable
- Battery level indicator, back light under power switch
- Momentary mute button, backlight blinks in mute mode
- Lightweight Design: 1.4 oz
- Push "on/off" power
- Channel A or B selectable
- Three level microphone volume switch (low, medium, high)
- Auxiliary input (3.5mm)
- Low profile clip for mounting
- Wear with a lanyard or directly to neckline collar
- Includes BRC-15 wall charger
- SP-628 Ceiling Speaker, Coaxial, 8 ohm, with Metal Back Can and Tile Bridge TeachLogic's SP-628 Ceiling Speaker, Coaxial, 8 ohm, with Metal Back Can and Tile Bridge is a full range compact coaxial ceiling speaker that provides low distortion and a smooth natural frequency response, making it great for articulate vocal clarity. The speaker has an integrated steel back can along with a 24" tile bridge which allows for quick and easy installation. The speaker is ETL Plenum rated and conforms to UL2043 standard.
- Air sealed metal back can for an infinite baffle
- 6" cone driver with a 1" Mylar dome tweeter
- BRC-55 Drop-In Charger for Sapphire and IRH-35/40 Microphones/Transmitters TeachLogic's BRC-55 Drop-In Charger for Sapphire and IRH-35/40 Microphones/Transmitters is a drop-in charger for two TeachLogic Sapphire transmitters and one IRH-35 or IRH-40 handheld micrphone/transmitter.
In the Box Bundle Items Forum 232 2-Channel Infrared Receiver/Amplifier Base Station with Switching Power Supply sscbaabwzbxrwc Infrared Dome Sensor - 50' 75Ω Dual-Shielded Plenum-Rated Cable
2 x IRT-60 Sapphire Infrared Transmitter/Microphone w/ Security Alert & Rechargeable Battery - Rechargeable Lithium-Ion Battery
- BRC-15 Plug-In Wall Charger for Sapphire Transmitter
- Limited 5-Year Warranty for IRT-60
- Limited 2-Year Warranty for Lithium-Ion Battery
4 x SP-628 Ceiling Speaker, Coaxial, 8 ohm, with Metal Back Can and Tile Bridge - Galvanized Steel Tile Bridge
BRC-55 Drop-In Charger for Sapphire and IRH-35/40 Microphones/Transmitters
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic IRF-2655 Forum 232 Wireless Classroom Microphone System with Sapphire Mic & 4 Ceiling-Mount Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Forum 232 2-Channel Infrared Receiver/Amplifier Base Station with Switching Power Supply
| Receiver Input | Infrared FM | | Modulation | FM Wide-band | | Reception Frequencies | Channel A: 2.08 MHz
Channel B: 2.54 MHz | | IR Wavelength | 850 nm | | Tone Signal | Channel A: 32.768 kHz | | De-Emphasis | 50 µs | | Frequency Response | 40 Hz, -18 kHz, ± 3 dB | | S/N Ratio | > 65 dB | | THD | < 1% @ 1 kHz | | Nominal Deviation | ± 10 kHz | | Maximum Deviation | ± 25 kHz | | Sensor Input | External: 2 x RCA | | Connectivity | Coverage: 1,600 sq. ft | | AUX Inputs | 1 x DVD, line level, dual RCA with +10dB gain control
1 x Aux input with front and rear panel 3.5mm | | Line Output | 2 x 3.5mm with gain control on front panel | | Equalization | 3-Band ±12 dB | | Output Power | 2 x Digital amplifiers, 25 W each (RMS) 50 W total (RMS) | | Output Impedance | 4 Ω minimum per channel | | Output Connection | 1 x Phoenix connector | | Power Supply | 19 VDC / 3.4 A | | Certifications | CE, CSA, and UL listed | | Dimensions (W x H x D) | 8.5 x 1.7 x 7.5" (215.9 x 43.1 x 190.5 mm) | | Weight | 1.5 lb (0.6 kg) | - Infrared Dome Sensor
| Operating Frequencies | 2.3 mHz to 2.8 mHz | | IR Receiver | 6 large lens diodes | | Coverage | 360° | | Range | 40-50' (12.19-15.24 m) line of sight, 2500 ft2 (232.25 m2) | | Mounting | Clip-on "T" bar bracket | | Connector | Female RCA | | Indicator Lights | Green LED for Power On | | Cable | 75 ohm
Dual-shielded
Plenum-rated | | Cable Length | 50' (15.24 m) | | Dimensions | 4.62 x 1.37" (11.73 x 3.47 cm) | | Weight | 0.46 lbs (0.2 kg) | - IRT-60 Sapphire Infrared Transmitter/Microphone w/ Security Alert & Rechargeable Battery
| Transmitter | Carrier: Infrared | | Transmission Frequency | 2.08 and 2.54 MHz | | Channel | Channel A or B, field switchable | | Transmitting Diodes | 6 | | Modulation | FM Wide-Band | | Pilot Tone | Frequency: 32.768 KHz | | Peak Deviation | ± 25KHz | | Operating Range | 60' / 18.28 m (line of sight), 1,500' ² / 139.35 m² | | Indicator Lights | Blue: Full
Purple: Medium
Red: Low
Flashing Red: Very low battery | | Battery | 3.7 V, 620 mAh Lithium-ion | | Battery Life | Approximately 8-9 hours | | External Power | External Power Charger: 5 VDC, micro USB connector | | Transmission Angle | 180° conical | | User Controls | Power Switch (Push): On/off
Mute Switch (Push): On/off
Microphone Switch (3 position): +6 db, normal, -3 db
Auxiliary Volume/Gain: Increase, decrease
Channel Select: A or B, in battery compartment | | Auxiliary Input | External Aux Input: 0.13" / 3.5 mm stereo line level | | Dimensions (H x W x D) | 3 x 1.25 x 0.75" / 7.62 x 3.17 x 1.9 cm | | Weight | 1.4 oz / 39.68 g | - SP-628 Ceiling Speaker, Coaxial, 8 ohm, with Metal Back Can and Tile Bridge
| Frequency Response | 80 Hz to 15 kHz, ± 6dB | | Power | 30 Watts Continuous | | Sensitivity | 89dB SPL (1W/1M) | | Impedance | 8Ω | | Crossover Frequency | 6 kHz | | Nominal Coverage Angle | 90 x 90° | | Driver | 5.25" (13.33 cm) Polymica/rubber
1" (2.54 cm) high efficient domed tweeter, neodymium | | Enclosure Material | Air sealed metal back can with infinite baffle | | Termination | Screw terminals for secure speaker wire connection | | Mounting | Three quick-mount clamps | | Dimensions (HxD) | 5.5 x 8" (13.97 x 20.32 cm) | | Weight | 5.12 lbs (2.32 kg)
Magnet: 10 oz (0.28 kg) | | | | Box Dimensions (LxWxH) | 9.0 x 8.9 x 6.3" | - BRC-55 Drop-In Charger for Sapphire and IRH-35/40 Microphones/Transmitters
| Compatibility | Compatible with TeachLogic Sapphire and IRH-35/40 Microphones/Transmitters | | Power | 110V | | Charging Time | 10-12 Hours | | Indicator Lights | Red: Charging
Green: Charged | | Dimensions | 7.75 x 2.75 x 3.75" (19.68 x 6.98 x 9.52 cm) | | Weight | 1.75 lb (0.79 kg) |
