Product description

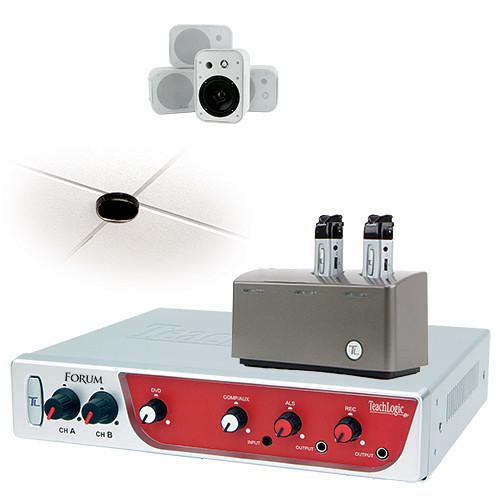

• IMA-320 Forum Amplifier / Receiver Base Station with Switching Power Supply The IMA-320 Forum Amplifier / Receiver Base Station with Switching Power Supply from TeachLogic is the nucleus of the Forum Wireless Classroom Microphone System. This receiver is designed for use with the Sapphire, Crescent, or handheld microphone transmitters (all sold separately). These transmitters transmit the vocal signal via infrared light to the dome sensor (sold separately) installed on the ceiling. The signal is then sent via cable to the receiver input of the mixer/amplifier. The signal is detected and then processed through the power amplifier to the speakers. The amplifier / receiver includes 2 infrared microphone channels, 2 auxiliary line inputs for computers and DVD/iPod units, and a 3-band equalizer. The two wireless microphone channels provide freedom of movement and permit hands-free performance. The two auxiliary inputs provide multimedia integration. The built-in power amp delivers 32W of power to a maximum of 4 speakers (sold separately). It has separate outputs for both assistive listening and recording with active boards.
  • Two infrared wireless microphone receiver channels
  • Two built-in power amplifiers; 18W each
  • Two stereo auxiliary inputs for DVD & computer / Aux
  • Additional DVD input gain, adjustable +10 dB boost
  • Front-panel auxiliary input (3.5mm)
  • Three-band digital equalizer ± 12 dB
  • Front panel ALS output for assistive listening system with gain control (3.5mm)
  • Front panel REC output for lesson capture with gain control (3.5mm)
  • Light weight aluminum cover
• Infrared Dome Sensor TeachLogic's Infrared Dome Sensor needs to be installed on the ceiling at least 3' from the video projector. It comes with a mounting/support bracket and 50' of plenum rated cable with RCA connector on each end. The ideal location for the dome sensor would be in the center of the ceiling. This will provide a clear signal path for the IR transmission from the transmitter to the dome sensor without obstruction. In addition, you will have 360° coverage and will minimize the transmission distance for more reliable performance. It collects the infrared transmission signal via 6 large detecting diodes. The sensor is connected to the mixer/amplifier via a plenum rated cable terminated with RCA connectors. The mixer/amplifier supplies the power to the sensor.
  • Easily installs on ceiling "T" bar with track bracket
  • 6 large receiving diodes for infrared reception
• Wall-Mount/Bookshelf Speaker with Mount Bracket TeachLogic's Wall-Mount/Bookshelf Speaker with Mount Bracket is a full range 2-way compact wall mount/shelf mount speaker. This speaker provides low distortion and a smoother frequency response ideal for articulate vocal clarity for more even coverage. The included wall-mount bracket enables the unit to be secured against a wall or other flat surface.
  • Structural reinforced ABS enclosure with metal mesh grille
  • Mounting bracket for wall-mount or desk top stance
  • Spring terminal for secure speaker wire connection
  • 6" woofer and a high efficient 1" Mylar domed tweeter
  • Passive crossover
  • Housed in a ported enclosure
  • Shielded magnet to prevent video interference
• Sapphire Transmitter with Microphone and Lithium-Ion Battery TeachLogic's Sapphire Transmitter with Microphone and Lithium-Ion Battery is a lightweight classroom microphone and comes with a rechargeable lithium-ion battery. It can be worn with a lanyard or clipped directly to your neckline collar. It has high level output, reliable connectivity and great definition. With a built-in breath filter, the Sapphire can function as a pass-around hand microphone. With a tap on the power button, the microphone mutes for private conversation-tap again to restore to normal operation. The auxiliary input allows wireless playback of your iPod. A three-position slide switch provides selection of low, medium, or high microphone volume levels.
  • Long life lithium-ion battery
  • Rechargeable via micro USB cable
  • Battery level indicator, back light under power switch
  • Momentary mute button, backlight blinks in mute mode
  • Push "on/off" power
  • Channel A or B selectable
  • Three level microphone volume switch (low, medium, high)
  • Auxiliary input (3.5mm)
  • Low profile clip for mounting
  • Wear with a lanyard or directly to neckline collar
• BRC-55 Drop-In Charger for Sapphire and IRH-35/40 Microphones/Transmitters TeachLogic's BRC-55 Drop-In Charger for Sapphire and IRH-35/40 Microphones/Transmitters is a drop-in charger for two TeachLogic Sapphire transmitters and one IRH-35 or IRH-40 handheld micrphone/transmitter.

• Switching Power Supply

• Limited 5-Year Warranty on Parts & Labor

• 50' 75Ω Dual-Shielded Plenum-Rated Cable

• Limited 5-Year Warranty

• Mounting Bracket

• Limited 5-Year Warranty

• Rechargeable Lithium-Ion Battery

• Limited 5-Year Warranty

• Limited 5-Year Warranty

Also Includes

• 100' of Plenum Rated Speaker Cable

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• IMA-320 Forum Amplifier / Receiver Base Station with Switching Power Supply

  Input	Receiver: Infrared FM
  Modulation	FM wide-band
  Frequencies	Reception: Channel A: 2.08 MHz Channel B: 2.54 MHz
  Infra-red Wavelength	850 nm
  Tone Signal	Channel A: 32.768 kHz
  De-Emphasis	50 μs
  Frequency Response	40 Hz, -18 kHz, ±3 dB
  S/N Ratio	>65 dB
  THD	<1% @ 1 kHz
  Nominal Deviation	±10 kHz
  Maximum Deviation	±25 kHz
  Sensor Input	External: 2 x RCA
  Connectivity	Coverage: 2,500.0 sq ft. (232.3 m2)
  AUX Input	One DVD, line level, dual RCA with +10 dB gain control, one Aux input with front and rear panel 3.5 mm
  Line Output	Two 3.5 mm with gain control (front panel)
  Equalization	3-band digital ±12 dB
  Output Power	Two Amplifiers: Each: 18 W RMS Total: 36 W RMS
  Output Impedance	4 Ω minimum per channel
  Output Connection	One Phoenix connector
  Power Supply	12 VDC / 2.8 A / 42 W CE,CSA, and UL listed
  Dimensions (W x H x D)	8.50 x 1.75 x 7.50" (21.59 x 4.45 x 19.05 cm)
  Weight	1.50 lb (0.68 kg)

• Infrared Dome Sensor

  Operating Frequencies	2.3 mHz to 2.8 mHz
  IR Receiver	6 large lens diodes
  Coverage	360°
  Range	40-50' (12.19-15.24 m) line of sight, 2500 ft2 (232.25 m2)
  Mounting	Clip-on "T" bar bracket
  Connector	Female RCA
  Indicator Lights	Green LED for Power On
  Cable	75 ohm Dual-shielded Plenum-rated
  Cable Length	50' (15.24 m)
  Dimensions	4.62 x 1.37" (11.73 x 3.47 cm)
  Weight	0.46 lbs (0.2 kg)

• Wall-Mount/Bookshelf Speaker with Mount Bracket

  Frequency Range	80 Hz to 16 kHz, ± 6dB
  Power	30 Watts Continuous
  Sensitivity	88 dB SPL
  Impedance	8 Ω
  Crossover Frequency	6 kHz
  Nominal Coverage Angle	90 x 90°
  Driver	LF: 5.25" (13.33 cm) polycarbonate/rubber HF: 1" (2.54 cm) high efficient Mylar domed tweeter
  Enclosure Material	Structural reinforced ABS enclosure with metal mesh grille
  Termination	Spring terminal for secure speaker wire connection
  Dimensions	5.5 x 7.25 x 4.25" (13.97 x 18.41 x 10.79 cm)
  Weight	5.12 lbs (2.32 kg)

• Sapphire Transmitter with Microphone and Lithium-Ion Battery

  Transmitter	Carrier: Infrared
  Transmission Frequency	2.08 MHz and 2.54 MHz
  Channel	Channel A or B, Field Switchable
  Transmitting Diodes	6
  Modulation	FM Wide-Band
  Pilot Tone	Frequency: 32.768 KHz
  Peak Deviation	± 25KHz
  Operating Range	60' (18.28 m) line of sight, 1,500 ft² (139.35 m²)
  Indicator Lights	Blue: full Purple: medium Red: low Flashing red: very low battery
  Battery	3.7V, 620mAh Lithium-ion
  Battery Life	Approximately 8-9 Hours
  External Power	Charger: DC +5V, Micro USB Connector
  Transmission Angle	180° Conical
  User Controls	Power switch (push): on/off Mute switch (push): on/off Microphone switch (3 position): + 6db, normal, - 3db Auxiliary volume/gain: increase, decrease Channel select: A or B, in battery compartment
  Auxiliary	External Input: 0.13" (3.5 mm) stereo line level
  Dimensions	3 x 1.25 x 0.75" (7.62 x 3.17 x 1.9 cm)
  Weight	1.4 oz (39.68 g)

  Box Dimensions (LxWxH)	5.0 x 3.5 x 1.5"

• BRC-55 Drop-In Charger for Sapphire and IRH-35/40 Microphones/Transmitters

  Compatibility	Compatible with TeachLogic Sapphire and IRH-35/40 Microphones/Transmitters
  Power	110V
  Charging Time	10-12 Hours
  Indicator Lights	Red: Charging Green: Charged
  Dimensions	7.75 x 2.75 x 3.75" (19.68 x 6.98 x 9.52 cm)
  Weight	1.75 lb (0.79 kg)
