Product description The TeachLogic IRM-4655 Maxim II with 2x Sapphire Transmitter and Plug-In Battery Charger is a complete sound-field system for installation in a classroom or similar environment.

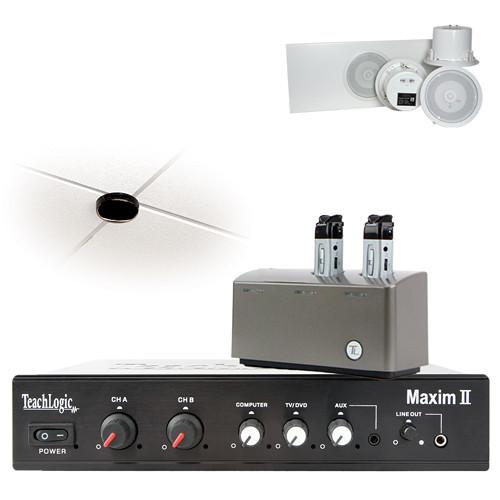

The system package includes the following components: Maxim II IMA-420 base station, which has two 16W Amplifiers and two infrared receivers with switching power supply; the Sapphire Infrared Transmitter / Microphone comes equipped with a rechargeable Lithium-ion battery and unidirectional microphone for true voice reproduction and good feedback suppression; the BRC-15 Sapphire Charger connects the Sapphire Transmitter for charging via USB or wall adapter. This system also includes the ICS-55 Ceiling Dome Sensor with 50' (15.24m) of plenum-rated cable and a 100' (30.48m) of plenum-rated 18 gauge speaker cable. - Maxim II
-
- Two infrared wireless microphone receivers
- Two power amplifiers 16W each
- Three stereo auxiliary inputs for Computer, DVD, Video Projector
- Addition aux input gain, adjustable +15 dB boost
- Front-panel auxiliary input for iPod (3.5mm)
- Page over-ride (muting) with page pass through to classroom speakers
- Five-band equalizer with security cover
- Front panel audio output for personal FM system with gain control (3.5mm)
- CE, CSA, and UL listed
- Sapphire Transmitter
-
- Elegant Design
- Only 1.4 oz. including battery
- Long life Lithium ion battery
- Rechargeable via micro USB cable
- Battery level indicator
- Back light under power switch
- Momentary mute button, Backlight blinks in mute mode
- Push on/off power
- Channel A or B selectable
- Three level mic volume switch (low, medium, high)
- Auxilary input (3.5mm)
- Low profile clip for mounting
- Wear with a lanyard or directly to neckline collar
In the Box TeachLogic IRM-4655 Maxim II Receiver with 2x Sapphire Transmitter and Plug-In Battery Charger IMA-420 Maxim II Amplifier / Receiver Base Station with Switching Power Supply 2 x Sapphire Transmitter with Microphone and Lithium-Ion Battery BRC-15 Plug-In Wall Charger for Sapphire Transmitter Infrared Dome Sensor 100' (30.48m) of Plenum-Rated 18 Gauge Speaker Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic IRM-4655 Maxim II Receiver with 2x Sapphire Transmitter and Plug-In Battery Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeachLogic IRM-4655 Specs | | | Receiver Input Ports | Infrared FM | | Modulation | FM wide-band | | Frequencies | Reception: Channel A: 2.08 MHz
Channel B: 2.54 MHz | | Infrared | Wavelength: 850 nm | | Tone Signal | Channel A: 32.768 kHz | | De-Emphasis | 50 μs | | Frequency Response | 40 Hz, -18 kHz, ± 3dB | | S/N Ratio | >65 dB | | THD | <1% @1 kHz | | Nominal Deviation | ± 10 kHz | | Maximum Deviation | ± 25 kHz | | Sensor Input | External: 2, RCA | | Connectivity | 2,500 sq. ft. (232.26 sq. m) | | AUX Input | Three aux, line level, Dual RCA with + 15 dB gain control | | Line Output | 3.5mm with gain control, front panel | | Input | Page Over-Ride: Off, 25 V, 70 V, 100 V | | Equalization | Five-Band ±12 dB | | Output Power | Two Amplifiers, 16 W ea. (RMS) 32 W total (RMS) | | Output Impedance | 4 Ω | | Output Connection | 2 Phoenix Connectors | | Power Supply | 15 VDC / 2.8 A / 42 W | | Dimensions (W x H x D) | 8.50 x 1.75 x 7.50" (215.90 x 44.45 x 190.50 mm) | | Weight | 2.65 lb (1.20 kg) | | | | Transmission | Carrier: Infrared
Frequencies: 2.08 MHz & 2.54 MHz | | Channel | Field switchable A or B | | Transmitting Diodes | 6 | | Modulation | FM wide-band | | Frequency | Pilotone: 32.768 kHz | | Peak Deviation | ± 25 kHz | | Operating Range | 1500 sq. ft. (139.35 sq. m) 60' (18.28m) line of sight | | Battery | Blue: full
Purple: medium
Red: low
Flashing Red: very low battery | | Battery Life | Used: Lithium-ion (3.7V / 620mAh)
Life: Approximately 7 hours / charge | | Charger | External Power: +5 VDC, Micro USB connector | | Transmission Angle | 180° conical | | External | Power Switch (Push): On / off
Mute Switch (Push): On / off
Mic Switch (3 position): + 6db, Normal, - 6db
Auxiliary Volume / Gain: Increase, decrease
Channel Select: (A or B) in battery compartment | | External | Aux Input: 3.5mm stereo line level | | Dimensions (W x D x H) | 3.62 x 1.25 x 0.75" (91.94 x 31.75 x 19.05 mm) | | Weight | 1.4 oz (85.0 g) with battery |
