Product description The IRM-5150 Maxim III Wireless Microphone System from TeachLogic is a sound-field system for classroom presentation. This system consists of an IMA-520 Amplifier/Receiver Base Station, IRT-60 Sapphire Microphone Transmitters with Lithium-ion Batteries, an ICS-55 Ceiling Sensor for IR connectivity throughout the room, and four CS-4 Ceiling Speakers. It also includes a BRC-15 Plug-In Wall Charger for charging the Sapphire transmitters.
The IRM-5150 serves as the optimum sound-field system with 50W of power for large rooms or rooms with high ambient sound levels. It helps create a good intelligible learning environment over a large area with up to 4 ceiling or wall speakers (available separately).
The four auxiliary inputs provide multimedia integration with even distribution of sound for all audio in the classroom. The unit also features RS-232 wall panel control of the line inputs, fire alarm connection (AC or DC), remote teacher security alert, teacher priority with instant attenuation of the line levels via Sapphire IRT-60 pendant mic (available separately), DFG (Digital Feedback Guard), and switchable anti-hum circuit on the computer input.
The Maxim III is an infrared wireless microphone sound system. It is the nucleus of the classroom sound field system which provides optimum voice reinforcement. The wireless function permits 360° connectivity throughout the classroom regardless of body position or orientation.
The system is comprised of an infrared detecting sensor installed in the ceiling. The sensor collects the IR wireless signal from the microphone/transmitter and sends a composite signal to the mixer/amplifier via the included 50' plenum-rated cable. The receiver transforms the composite signal into an analog audio signal which is fed to the amplifier mixer. The audio will then be fed to the speakers in the room for even voice reinforcement throughout the room. It also includes a 100' plenum rated 18 gauge speaker cable. The rechargeable batteries offer 6 to 8 hours of usage per charge. The plug-in wall charger will recharge the batteries overnight, ready for another day’s use. - IMA-520 Maxim III 2-Channel Receiver / Amplifier Base Station with Switching Power Supply The IMA-520 Maxim III 2-Channel Receiver / Amplifier Base Station with Switching Power Supply from TeachLogic serves as the optimum sound-field system with 50W of power for large rooms or rooms with high ambient sound levels. It helps create a good intelligible learning environment over a large area with up to 4 ceiling or wall speakers (available separately).
The four auxiliary inputs provide multimedia integration with even distribution of sound for all audio in the classroom. The unit also features RS-232 wall panel control of the line inputs, fire alarm connection (AC or DC), remote teacher security alert, teacher priority with instant attenuation of the line levels via Sapphire IRT-60 pendant mic (available separately), DFG (Digital Feedback Guard), and switchable anti-hum circuit on the computer input. - Sound-field system for large rooms
- Dual infrared wireless microphone receivers
- Power Amplifiers: 50W total RMS power; four 25W digital hybrid Class D amplifiers
- Security alert contact connection
- Fire alarm input AC or DC from 5 to 24V
- Page over-ride (muting) with page pass-through to classroom speakers; 100V, 70V, 25V input level
- Four line inputs for DVD, computer, MP3, and Aux
- Auxiliary input features mic or line level switch
- Anti-hum computer balun (On/Off switch)
- Front panel auxiliary input for MP3 (3.5mm)
- DVD input via dual RCA on rear panel
- 3.5mm Aux and computer input on rear panel
- 3.5mm lesson capture output with level control on rear panel
- 3.5mm ALS output with level control on rear panel
- DFG (Digital Feedback Guard)
- Remote teacher priority over line inputs
- Power sleep mode to conserve energy
- Drop-in charger connection (5VDC, USB)
- Powers up to 4 speakers (not included)
- Rack or shelf mountable using optional kits (not included)
- Infrared Dome Sensor TeachLogic's Infrared Dome Sensor needs to be installed on the ceiling at least 3' from the video projector. It comes with a mounting/support bracket and 50' of plenum rated cable with RCA connector on each end. The ideal location for the dome sensor would be in the center of the ceiling. This will provide a clear signal path for the IR transmission from the transmitter to the dome sensor without obstruction. In addition, you will have 360° coverage and will minimize the transmission distance for more reliable performance. It collects the infrared transmission signal via 6 large detecting diodes. The sensor is connected to the mixer/amplifier via a plenum rated cable terminated with RCA connectors. The mixer/amplifier supplies the power to the sensor.
- Easily installs on ceiling "T" bar with track bracket
- 6 large receiving diodes for infrared reception
- IRT-60 Sapphire Infrared Transmitter/Microphone w/ Security Alert & Rechargeable Battery Well suited for classrooms and forums, the rechargeable IRT-60 Sapphire Infrared Transmitter/Microphone from TeachLogic offers the same aesthetic design and feature set as the IRT-55 Sapphire, but with an additional remote "Security Alert", allowing teacher priority with instant attenuation of the line levels to work with the optional Forum 232 and Maxim III amplifiers. The Sapphire can be worn with a lanyard or clipped directly to your neckline collar and offers a high level output, reliable connectivity, and great definition. With a built-in breath filter, the Sapphire can function as a pass-around hand microphone. Tapping the power button momentarily mutes the microphone, allowing for private conversations. The 3.5mm auxiliary input allows wireless playback of your iPod, while a three-position slide switch provides selections of low, medium, or high microphone volume levels. The included Lithium-Ion battery offers up to 9 hours use. The Sapphire IRT-60 ships with a BRC-15 wall charger and a breakaway lanyard.
-
- Long-life Lithium-Ion battery
- Rechargeable via micro USB cable
- Battery level indicator, back light under power switch
- Momentary mute button, backlight blinks in mute mode
- Lightweight Design: 1.4 oz
- Push "on/off" power
- Channel A or B selectable
- Three level microphone volume switch (low, medium, high)
- Auxiliary input (3.5mm)
- Low profile clip for mounting
- Wear with a lanyard or directly to neckline collar
- Includes BRC-15 wall charger
- SP-628 Ceiling Speaker, Coaxial, 8 ohm, with Metal Back Can and Tile Bridge TeachLogic's SP-628 Ceiling Speaker, Coaxial, 8 ohm, with Metal Back Can and Tile Bridge is a full range compact coaxial ceiling speaker that provides low distortion and a smooth natural frequency response, making it great for articulate vocal clarity. The speaker has an integrated steel back can along with a 24" tile bridge which allows for quick and easy installation. The speaker is ETL Plenum rated and conforms to UL2043 standard.
- Air sealed metal back can for an infinite baffle
- 6" cone driver with a 1" Mylar dome tweeter
- BRC-15 Plug-In Wall Charger for Sapphire Transmitter TeachLogic's BRC-15 Plug-In Wall Charger for Sapphire Transmitter is a plug-in wall charger for the TeachLogic Sapphire transmitter.

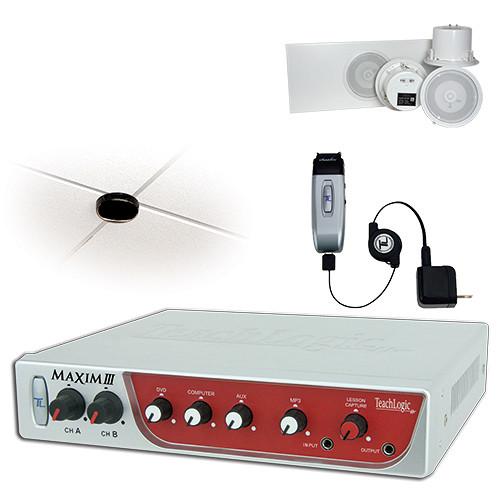

In the Box Bundle Items IMA-520 Maxim III 2-Channel Receiver / Amplifier Base Station with Switching Power Supply fybwavytfrax Infrared Dome Sensor - 50' 75Ω Dual-Shielded Plenum-Rated Cable
IRT-60 Sapphire Infrared Transmitter/Microphone w/ Security Alert & Rechargeable Battery - Rechargeable Lithium-Ion Battery
- BRC-15 Plug-In Wall Charger for Sapphire Transmitter
- Limited 5-Year Warranty for IRT-60
- Limited 2-Year Warranty for Lithium-Ion Battery
4 x SP-628 Ceiling Speaker, Coaxial, 8 ohm, with Metal Back Can and Tile Bridge - Galvanized Steel Tile Bridge
BRC-15 Plug-In Wall Charger for Sapphire Transmitter
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic IRM-5150 Maxim III Wireless Classroom Microphone System with Sapphire Mic & 4 Ceiling-Mount Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - IMA-520 Maxim III 2-Channel Receiver / Amplifier Base Station with Switching Power Supply
| Receiver Input | Infrared FM | | Modulation | FM Wide-band | | Reception Frequencies | Channel A: 2.08 MHz
Channel B: 2.54 MHz | | IR Wavelength | 850 nm | | Tone Signal | Channel A: 32.768 kHz | | De-Emphasis | 50 µs | | Frequency Response | 40 Hz, -18 kHz, ± 3 dB | | S/N Ratio | > 65 dB | | THD | < 1% @ 1 kHz | | Nominal Deviation | ± 10 kHz | | Maximum Deviation | ± 25 kHz | | Sensor Input | External: 2 x RCA | | Connectivity | Coverage: 1,600 sq. ft | | AUX Inputs | 4 x Aux
Line Level
1 x Dual RCA
3 x 3.5mm
1 x Anti-hum | | Line Output | Lesson capture, 3.5mm with gain control, 3.5mm with gain control, rear panel | | Page Over-Ride | Input: 100V, 70V, 25V, 3-pin phoenix | | Sensitivity | Level control | | Security Alert | Contact closure N/O, N/C | | Fire Alarm | 5 to 24 VAC/VDC | | Equalization | 5-Band ±12 dB | | Output Power | 4 x Amplifiers, 25 W each (RMS) 50 W total (RMS) | | Output Impedance | 4 Ω | | Output Connection | 2 x Phoenix connectors | | Charger Output | 5 VDC, USB | | Power Supply | 19 VDC / 3.4 A | | Certifications | CE, CSA, and UL listed | | Dimensions (W x H x D) | 8.5 x 1.7 x 7.5" (215.9 x 43.1 x 190.5 mm) | | Weight | 2.20 lb (0.99 kg) | - Infrared Dome Sensor
| Operating Frequencies | 2.3 mHz to 2.8 mHz | | IR Receiver | 6 large lens diodes | | Coverage | 360° | | Range | 40-50' (12.19-15.24 m) line of sight, 2500 ft2 (232.25 m2) | | Mounting | Clip-on "T" bar bracket | | Connector | Female RCA | | Indicator Lights | Green LED for Power On | | Cable | 75 ohm
Dual-shielded
Plenum-rated | | Cable Length | 50' (15.24 m) | | Dimensions | 4.62 x 1.37" (11.73 x 3.47 cm) | | Weight | 0.46 lbs (0.2 kg) | - IRT-60 Sapphire Infrared Transmitter/Microphone w/ Security Alert & Rechargeable Battery
| Transmitter | Carrier: Infrared | | Transmission Frequency | 2.08 and 2.54 MHz | | Channel | Channel A or B, field switchable | | Transmitting Diodes | 6 | | Modulation | FM Wide-Band | | Pilot Tone | Frequency: 32.768 KHz | | Peak Deviation | ± 25KHz | | Operating Range | 60' / 18.28 m (line of sight), 1,500' ² / 139.35 m² | | Indicator Lights | Blue: Full
Purple: Medium
Red: Low
Flashing Red: Very low battery | | Battery | 3.7 V, 620 mAh Lithium-ion | | Battery Life | Approximately 8-9 hours | | External Power | External Power Charger: 5 VDC, micro USB connector | | Transmission Angle | 180° conical | | User Controls | Power Switch (Push): On/off
Mute Switch (Push): On/off
Microphone Switch (3 position): +6 db, normal, -3 db
Auxiliary Volume/Gain: Increase, decrease
Channel Select: A or B, in battery compartment | | Auxiliary Input | External Aux Input: 0.13" / 3.5 mm stereo line level | | Dimensions (H x W x D) | 3 x 1.25 x 0.75" / 7.62 x 3.17 x 1.9 cm | | Weight | 1.4 oz / 39.68 g | - SP-628 Ceiling Speaker, Coaxial, 8 ohm, with Metal Back Can and Tile Bridge
| Frequency Response | 80 Hz to 15 kHz, ± 6dB | | Power | 30 Watts Continuous | | Sensitivity | 89dB SPL (1W/1M) | | Impedance | 8Ω | | Crossover Frequency | 6 kHz | | Nominal Coverage Angle | 90 x 90° | | Driver | 5.25" (13.33 cm) Polymica/rubber
1" (2.54 cm) high efficient domed tweeter, neodymium | | Enclosure Material | Air sealed metal back can with infinite baffle | | Termination | Screw terminals for secure speaker wire connection | | Mounting | Three quick-mount clamps | | Dimensions (HxD) | 5.5 x 8" (13.97 x 20.32 cm) | | Weight | 5.12 lbs (2.32 kg)
Magnet: 10 oz (0.28 kg) | | | | Box Dimensions (LxWxH) | 9.0 x 8.9 x 6.3" | - BRC-15 Plug-In Wall Charger for Sapphire Transmitter
| Compatibility | Compatible with TeachLogic Sapphire Transmitter | | Power | 110V | | Charging Time | 10-12 Hours | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer |
