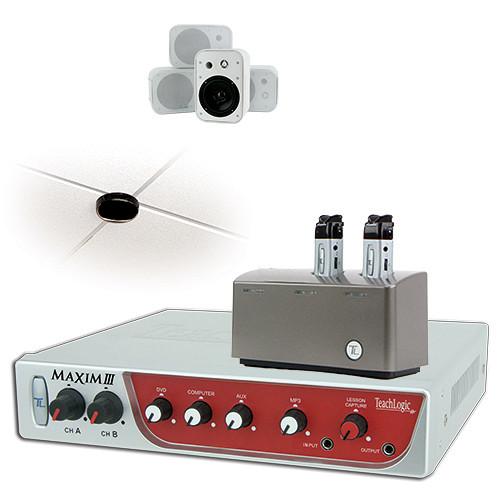

User Manual for TeachLogic IRM-5655 Maxim III Wireless Microphone System with Four Wall-Mount Speakers Click to enlarge the picture
Contents of the user manual for the TeachLogic IRM-5655 Maxim III Wireless Microphone
- Product category: Assistive Listening Systems TeachLogic
- Brand: TeachLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TeachLogic Assistive Listening Systems
|
User manual for the TeachLogic IRM-5655 Maxim III Wireless Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TeachLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TeachLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TeachLogic product will considerably shorten its lifespan!
|
Product description The IRM-5655 Maxim III Wireless Microphone System with Four Wall-Mount Speakers from TeachLogic is a sound-field system designed for use in the classroom. The Maxim III features a Digital Feedback Guard (DFG) to eliminate acoustical feedback. It has a 50W Digital Hybrid Class D amplifier. The wireless Sapphire microphone has a capsule which allows maximum gain before feedback. The Maxim III allows for remote adjustment of inputs via the RS-232 wall panel controller. The unit has two infrared wireless microphone receivers which can be used simultaneously. The Maxim III provides four auxiliary line inputs for multi-media integration with even distribution of sound for the audio in the classroom. The RS-232 input is compatible with most wall controllers and allows for remote adjustment of inputs. It has a Line level output for lesson capture and another output for Assistive Listening System (ALS).
The Maxim III comes with the Sapphire IRT-60 microphone transmitter and a rechargeable lithium-ion battery. The Sapphire transmitter can be worn with a lanyard or clipped directly to your neckline collar. It has high level output, reliable connectivity and great definition. With a tap on the power button, the microphone mutes for private conversation-tap again to restore to normal operation. The auxiliary input allows wireless playback of your iPod. A three-position slide switch provides selection of low, medium, or high microphone volume levels.
When combined with the Sapphire IRT-60, the Maxim III delivers several key features such as a Security Alert circuit which is activated by holding down a button for 5 seconds on transmitter, Teacher Voice Priority and Remote volume control for line inputs.
The Maxim III IRM-5655 also includes four wall-mount speakers, two Sapphire transmitter/microphone with lithium battery, a drop-in battery charger, and a ceiling sensor for IR connectivity. - Two IR wireless microphone receivers
- Page Pass-through with muting and sensitivity control
- Four Line inputs for DVD, Computer, Aux and MP3
- Switchable computer anti hum circuit
- Aux input for Microphone or Line level
- Front Panel laptop or MP3 player 3.5mm input
- Front Panel lesson capture output for recording
- Rear Panel output for ALS with gain control
- Five band equalizer: ± 12dB
- Powers up to four speakers
- Power sleep mode feature to conserve energy
- Digital Feedback Guard (DFG)
- Security Alert contact connection
- Fire Alarm Input for AC or DC from 5-24 volt
- RS-232 wall panel control of line input levels
- Remote Teacher Priority feature (over line inputs)
- USB Drop-in charger connection 5 VDC
In the Box TeachLogic IRM-5655 Maxim III Wireless Microphone System with Four Wall-Mount Speakers IMA-520 Maxim III 2-Channel Receiver / Amplifier Base Station with Switching Power Supply Infrared Dome Sensor 2 x IRT-60 Sapphire Infrared Transmitter/Microphone w/ Security Alert & Rechargeable Battery BRC-55 Drop-In Charger for Sapphire and IRH-35/40 Microphones/Transmitters 4 x Wall-Mount/Bookshelf Speaker with Mount Bracket 100' Plenum Rated 18 Gauge Speaker Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic IRM-5655 Maxim III Wireless Microphone System with Four Wall-Mount Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeachLogic IRM-5655 Specs | | | Receiver Input | Infrared FM | | Modulation | FM Wide-band | | Reception Frequencies | Channel A: 2.08 MHz Channel B: 2.54 MHz | | Infra-Red Wavelength | 850 nm | | Tone Signal | Channel A: 32.768 kHz | | De-Emphasis | 50 µs | | Frequency Response | 40 Hz - 18 kHz, ± 3 dB | | S/N Ratio | › 65 dB | | Total Harmonic Distortion (THD) | ‹1% @ 1 kHz | | Nominal Deviation | ± 10 kHz | | Maximum Deviation | ± 25 kHz | | Sensor Input | 2 x RCA | | Coverage Area | 1600 ft² | | Inputs | 1 x dual RCA for DVD
1 x 3.5 mm jack for computer with anti-hum
1 x 3.5 mm jack for Aux
1 x 3.5 mm jack for MP3 (front panel) | | Line Outputs | 1 x 3.5 mm jack for lesson capture, with gain control (front panel)
1 x 3.5 mm jack for ALS, with gain control (rear panel) | | Page Over-Ride | Input: 100 V, 70 V, 25 V, 3 pin Phoenix | | Sensitivity | Level control | | Security Alert | Contact Closure N/O, N/C | | Fire Alarm | 5 - 24 VAC/VDC | | Equalization | Five-Band ± 12 dB | | Output Power | 2 x 25 W amplifiers (RMS) | | Output Impedance | 4 Ω | | Output Connection | 2 x 4-pin Phoenix connectors | | Charger Output | 5 VDC, USB | | Power Supply | 19 VDC / 3.4 A, CE, CSA and UL Listed | | Dimensions (W x H x D) | 8.5 x 1.75 x 7.5" (21.6 x 4.5 x 19.0 cm) | | Weight | 2.2 lb (1.0 kg) | | | | Frequency Response | 80 Hz to 16 kHz, ± 6 dB | | Power | 30 W continuous | | Impedance | 8 Ω |
