User Manual for TeachLogic IRQ-3150 Quantum II Wireless System with Sapphire Microphone Transmitter & Plug-In Battery Charger Click to enlarge the picture
Contents of the user manual for the TeachLogic IRQ-3150 Quantum II Wireless System
- Product category: Assistive Listening Systems TeachLogic
- Brand: TeachLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TeachLogic Assistive Listening Systems
 |
User manual for the TeachLogic IRQ-3150 Quantum II Wireless System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TeachLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TeachLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TeachLogic product will considerably shorten its lifespan!
|

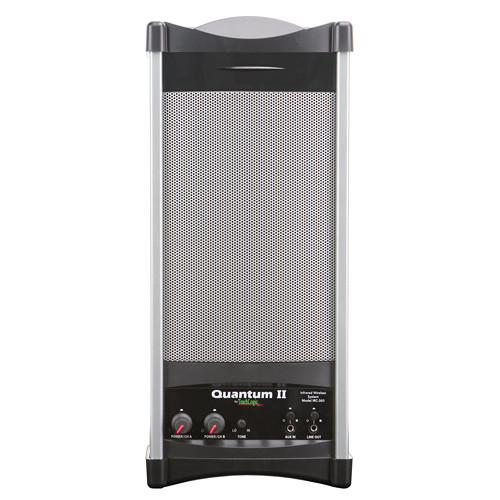

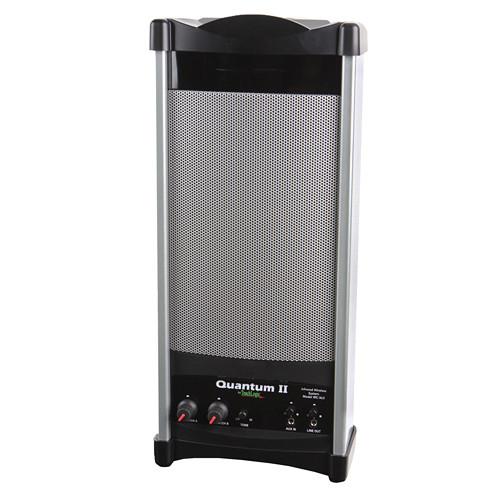

Product description The IRQ-3150 Quantum II Wireless System from TeachLogic is a self-contained infrared wireless microphone sound system for portable use or permanent installation in a classroom or similar environment. The system package includes an IRC-360 Quantum II Column Speaker with Built-In Receiver/Amplifier & Wall Mount Bracket, an AC power supply, a Sapphire Microphone Transmitter with Lithium-Ion Battery, and a BRC-15 Plug-In Charger. The all-in-one Quantum II Wireless Sound System utilizes Digital Hybrid circuitry. You can easily interface with your interactive whiteboard, computer or playback, and MP3 or VD player. No complex wiring is required-you just need to plug your device into the Aux input on the front panel. In addition, there is a front panel program output jack for lesson capture; or, students can plug in their personal assistive listening system for remote broadcast. The IRC-360 Quantum II can be located anywhere in a room on a speaker stand (sold separately) or mounted on the wall with the included wall bracket. It features two infrared microphone receivers, a powerful 30W Class D amplifier, digital equalization, digital limiting, and a full-range dynamic speaker for complete coverage of a typical classroom. Two wireless microphones can be used simultaneously-a wireless pendant mic/transmitter for the teacher (for example, the Sapphire mic included) and a handheld mic (not included) for student participation. It can be complemented by a companion speaker (sold separately) for improved sound distribution throughout the room. The IRT-55 Sapphire Pendant Infrared Microphone Transmitter comes with a rechargeable lithium-ion battery and unidirectional microphone for true voice reproduction and good feedback suppression. It can be worn with a lanyard or clipped directly to your neckline collar. The BRC-15 Plug-In Charger charges the IRT-55 Sapphire Transmitter using the mini USB or AC port. - IRC-360 Quantum II Column Speaker with Built-In Receiver/Amplifier & Wall Mount Bracket The IRC-360 Quantum II from TeachLogic is designed for portable use or permanent installation. Along with wireless microphones/transmitters (not included), it forms a completely self-contained infrared wireless microphone sound system. The full-range coaxial speaker provides complete coverage of a typical classroom. The device also includes 2 integrated infrared wireless microphone receivers that allow you to simultaneously use two IR wireless transmitter microphones (sold separately). It also includes a powerful 30W, low-noise, Class D digital audio amplifier.
- Two infrared receivers for simultaneous use of two IR wireless microphones (sold separately)
- Built-in wide-angle infrared sensor for reliable 180° IR reception
- Powerful 30W, low-noise, Class D digital audio amplifier
- Efficient full-range coaxial speaker for optimum vocal clarity
- Tone control, ± 6 dB to dial in treble & bass
- Digital equalization and limiting
- Auxiliary line level input (3.5mm) for computer, interactive whiteboard, or MP3 player
- Program output (3.5mm), adjustable line level for Lesson Capture or Assistive Listening System connection
- Signal present indicator on IR inputs to verify presence of signal
- External speaker output for companion speaker (sold separately) to expand sound coverage for a total combined power output of 50W
- Two external sensor inputs for supplementary infrared sensors for extended IR coverage
- Structured aluminum enclosure for controlled sound dispersion
- Threaded brass insert for use with speaker stand for mobile application
- Wall mount bracket included
- AC-35 AC Switching Power Supply for Quantum II and Maxim II TeachLogic's AC-35 AC Switching Power Supply is a replacement AC switching power supply for the TeachLogic Quantum II and Maxim II.

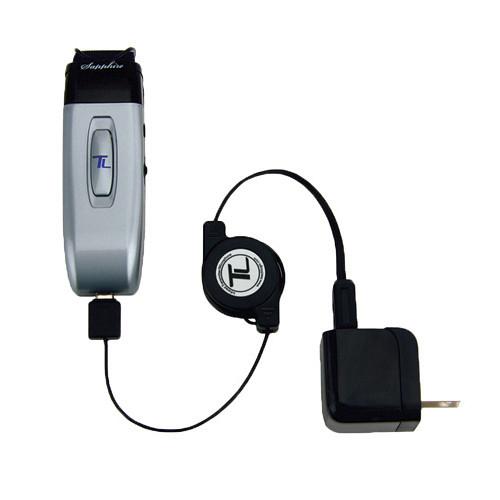

- Sapphire Transmitter with Microphone and Lithium-Ion Battery TeachLogic's Sapphire Transmitter with Microphone and Lithium-Ion Battery is a lightweight classroom microphone and comes with a rechargeable lithium-ion battery. It can be worn with a lanyard or clipped directly to your neckline collar. It has high level output, reliable connectivity and great definition. With a built-in breath filter, the Sapphire can function as a pass-around hand microphone. With a tap on the power button, the microphone mutes for private conversation-tap again to restore to normal operation. The auxiliary input allows wireless playback of your iPod. A three-position slide switch provides selection of low, medium, or high microphone volume levels.
- Long life lithium-ion battery
- Rechargeable via micro USB cable
- Battery level indicator, back light under power switch
- Momentary mute button, backlight blinks in mute mode
- Channel A or B selectable
- Three level microphone volume switch (low, medium, high)
- Low profile clip for mounting
- Wear with a lanyard or directly to neckline collar
- BRC-15 Plug-In Wall Charger for Sapphire Transmitter TeachLogic's BRC-15 Plug-In Wall Charger for Sapphire Transmitter is a plug-in wall charger for the TeachLogic Sapphire transmitter.

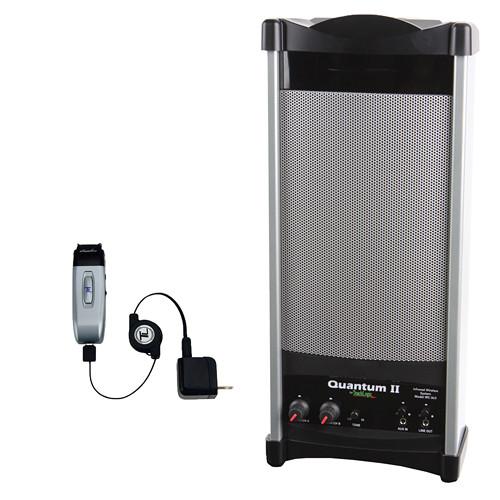

In the Box Bundle Items IRC-360 Quantum II Column Speaker with Built-In Receiver/Amplifier & Wall Mount Bracket faewafxdecfu - AC-35 AC Switching Power Supply for Quantum II and Maxim II
- Limited 5-Year Warranty on Parts & Labor
AC-35 AC Switching Power Supply for Quantum II and Maxim II Sapphire Transmitter with Microphone and Lithium-Ion Battery - Rechargeable Lithium-Ion Battery
BRC-15 Plug-In Wall Charger for Sapphire Transmitter Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic IRQ-3150 Quantum II Wireless System with Sapphire Microphone Transmitter & Plug-In Battery Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - IRC-360 Quantum II Column Speaker with Built-In Receiver/Amplifier & Wall Mount Bracket
| Input | Infrared FM | | Modulation | FM wide-band | | Reception Frequencies | Channel A: 2.08 MHz
Channel B: 2.54 MHz | | Wavelength | 850 nm | | Tone Signal | Channel A: 32.768 kHz | | De-Emphasis | 50 μs | | Frequency Response | 50 Hz to 15 kHz, ±3 dB | | S/N Ratio | >65 dB | | THD | <1% @ 1 kHz | | Nominal Deviation | ±10 kHz | | Maximum Deviation | ±25 kHz | | Sensor Input | 2 x RCA | | Coverage | 60' (18.2 m) line of sight | | AUX Input | 1 x 3.5 mm with gain control, front panel | | Line Output | 1 x 3.5 mm with gain control, front panel | | Equalization | Tone control, ±6 dB | | Output Power | 30 W RMS, Class D amplifier | | External Speaker Jack | 15 W / 4 Ω | | Output Connection | Two-terminal Phoenix connector | | Power Supply | 15 VDC / 2.3 A / 34.5 W (CE, CSA, and UL listed power supply included) | | Dimensions (W x H x D) | 6.25 x 14.00 x 4.75" (158.75 x 355.60 x 120.65 mm) | | Weight | 4.2 lb (1.9 kg) | - AC-35 AC Switching Power Supply for Quantum II and Maxim II
| Compatibility | Compatible with TeachLogic Quantum II and Maxim II | - Sapphire Transmitter with Microphone and Lithium-Ion Battery
| Transmitter | Carrier: Infrared | | Transmission Frequency | 2.08 MHz and 2.54 MHz | | Channel | Channel A or B, Field Switchable | | Transmitting Diodes | 6 | | Modulation | FM Wide-Band | | Pilot Tone | Frequency: 32.768 KHz | | Peak Deviation | ± 25KHz | | Operating Range | 60' (18.28 m) line of sight, 1,500 ft² (139.35 m²) | | Indicator Lights | Blue: full
Purple: medium
Red: low
Flashing red: very low battery | | Battery | 3.7V, 620mAh Lithium-ion | | Battery Life | Approximately 8-9 Hours | | External Power | Charger: DC +5V, Micro USB Connector | | Transmission Angle | 180° Conical | | User Controls | Power switch (push): on/off
Mute switch (push): on/off
Microphone switch (3 position): + 6db, normal, - 3db
Auxiliary volume/gain: increase, decrease
Channel select: A or B, in battery compartment | | Auxiliary | External Input: 0.13" (3.5 mm) stereo line level | | Dimensions | 3 x 1.25 x 0.75" (7.62 x 3.17 x 1.9 cm) | | Weight | 1.4 oz (39.68 g) | | | | Box Dimensions (LxWxH) | 5.0 x 3.5 x 1.5" | - BRC-15 Plug-In Wall Charger for Sapphire Transmitter
| Compatibility | Compatible with TeachLogic Sapphire Transmitter | | Power | 110V | | Charging Time | 10-12 Hours | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer |
