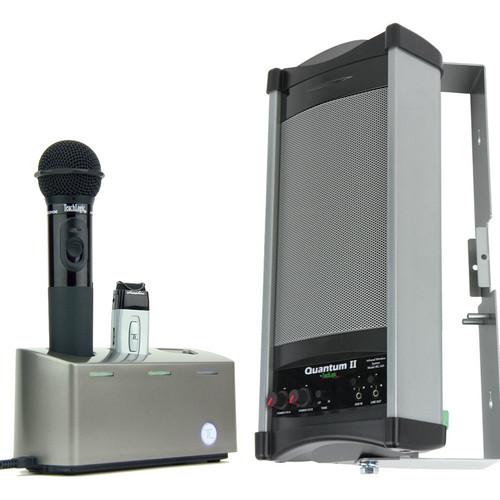

Product description The IRQ-3650 Quantum II Wireless System from TeachLogic is a self-contained infrared wireless microphone sound system for portable use or permanent installation in a classroom or similar environment. The system package includes an IRC-360 Quantum II Column Speaker with Built-In Receiver/Amplifier & Wall Mount Bracket, an AC power supply, a Sapphire Microphone Transmitter with Lithium-Ion Battery, an IRH-35 Handheld Infrared Microphone Transmitter with NiMH Batteries, and a BRC-55 3-Port Drop-In Charger. The all-in-one Quantum II Wireless Sound System utilizes Digital Hybrid circuitry. You can easily interface with your interactive whiteboard, computer or playback, and MP3 or VD player. No complex wiring is required-you just need to plug your device into the Aux input on the front panel. In addition, there is a front panel program output jack for lesson capture; or students can plug in their personal assistive listening system for remote broadcast. The IRC-360 Quantum II is small, lightweight and very portable. It can be located anywhere in the room on a speaker stand (sold separately) or mounted on the wall with the included wall bracket. It comes with two infrared microphone receivers, a powerful 30W Class D amplifier, digital equalization, digital limiting, and a full-range dynamic speaker for complete coverage of a typical classroom. Two wireless microphones can be used simultaneously, one for the teacher and another (handheld mic) for student participation. It can be complemented by a companion speaker (sold separately) for improved sound distribution throughout the room. The IRT-55 Sapphire Pendant Infrared Microphone Transmitter comes with a rechargeable lithium-ion battery and unidirectional microphone for true voice reproduction and good feedback suppression. It can be worn with a lanyard or clipped directly to your neckline collar. The IRH-35 Handheld Infrared Microphone Transmitter comes with two AA, Duracell, and rechargeable NiMH batteries. It features diodes at top and bottom of handle (2 top aimed out, 6 bottom 360°, 2 bottom aimed down) for increased coverage. The drop-in charging station makes it convenient and easy to recharge one or two IRT-55 Sapphire Transmitters and one IRH-35 Handheld Transmitter simultaneously. - IRC-360 Quantum II Column Speaker with Built-In Receiver/Amplifier & Wall Mount Bracket The IRC-360 Quantum II from TeachLogic is designed for portable use or permanent installation. Along with wireless microphones/transmitters (not included), it forms a completely self-contained infrared wireless microphone sound system. The full-range coaxial speaker provides complete coverage of a typical classroom. The device also includes 2 integrated infrared wireless microphone receivers that allow you to simultaneously use two IR wireless transmitter microphones (sold separately). It also includes a powerful 30W, low-noise, Class D digital audio amplifier.
- Two infrared receivers for simultaneous use of two IR wireless microphones (sold separately)
- Built-in wide-angle infrared sensor for reliable 180° IR reception
- Powerful 30W, low-noise, Class D digital audio amplifier
- Efficient full-range coaxial speaker for optimum vocal clarity
- Tone control, ± 6 dB to dial in treble & bass
- Digital equalization and limiting
- Auxiliary line level input (3.5mm) for computer, interactive whiteboard, or MP3 player
- Program output (3.5mm), adjustable line level for Lesson Capture or Assistive Listening System connection
- Signal present indicator on IR inputs to verify presence of signal
- External speaker output for companion speaker (sold separately) to expand sound coverage for a total combined power output of 50W
- Two external sensor inputs for supplementary infrared sensors for extended IR coverage
- Structured aluminum enclosure for controlled sound dispersion
- Threaded brass insert for use with speaker stand for mobile application
- Wall mount bracket included
- Sapphire Transmitter with Microphone and Lithium-Ion Battery TeachLogic's Sapphire Transmitter with Microphone and Lithium-Ion Battery is a lightweight classroom microphone and comes with a rechargeable lithium-ion battery. It can be worn with a lanyard or clipped directly to your neckline collar. It has high level output, reliable connectivity and great definition. With a built-in breath filter, the Sapphire can function as a pass-around hand microphone. With a tap on the power button, the microphone mutes for private conversation-tap again to restore to normal operation. The auxiliary input allows wireless playback of your iPod. A three-position slide switch provides selection of low, medium, or high microphone volume levels.
- Long life lithium-ion battery
- Rechargeable via micro USB cable
- Battery level indicator, back light under power switch
- Momentary mute button, backlight blinks in mute mode
- Channel A or B selectable
- Three level microphone volume switch (low, medium, high)
- Low profile clip for mounting
- Wear with a lanyard or directly to neckline collar
- Handheld Infrared Transmitter/Microphone with NiMH Batteries (Channel A and B) TeachLogic's Handheld Infrared Transmitter/Microphone with NiMH Batteries (Channel A and B) has an ergonomic design that provides user comfort and very low handling noise. The unidirectional condenser reproduces excellent vocal quality and the windscreen prevents breath pops. The emitting diodes are located around the top and bottom end of the handle for 360° transmission and assured connectivity throughout the classroom. Two rechargeable NiMH batteries are included.
- Condenser microphone element
- Battery level indicator-LED
- 10 high-power emitting diodes
- Diodes at top and bottom of handle for increased coverage (2 top aimed out, 6 bottom 360°, 2 bottom aimed down)
- 360º IR radiation for assured connectivity
- AC-35 AC Switching Power Supply for Quantum II and Maxim II TeachLogic's AC-35 AC Switching Power Supply is a replacement AC switching power supply for the TeachLogic Quantum II and Maxim II.
- BRC-55 Drop-In Charger for Sapphire and IRH-35/40 Microphones/Transmitters TeachLogic's BRC-55 Drop-In Charger for Sapphire and IRH-35/40 Microphones/Transmitters is a drop-in charger for two TeachLogic Sapphire transmitters and one IRH-35 or IRH-40 handheld micrphone/transmitter.
In the Box Bundle Items IRC-360 Quantum II Column Speaker with Built-In Receiver/Amplifier & Wall Mount Bracket zwryfafywtfdycabfbvtystesetayxes - AC-35 AC Switching Power Supply for Quantum II and Maxim II
- Limited 5-Year Warranty on Parts & Labor
Sapphire Transmitter with Microphone and Lithium-Ion Battery - Rechargeable Lithium-Ion Battery
Handheld Infrared Transmitter/Microphone with NiMH Batteries (Channel A and B) AC-35 AC Switching Power Supply for Quantum II and Maxim II BRC-55 Drop-In Charger for Sapphire and IRH-35/40 Microphones/Transmitters Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic IRQ-3650 Quantum II Wireless System with Sapphire Microphone Transmitter, Handheld Microphone Transmitter & Drop-In Battery Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - IRC-360 Quantum II Column Speaker with Built-In Receiver/Amplifier & Wall Mount Bracket
| Input | Infrared FM | | Modulation | FM wide-band | | Reception Frequencies | Channel A: 2.08 MHz
Channel B: 2.54 MHz | | Wavelength | 850 nm | | Tone Signal | Channel A: 32.768 kHz | | De-Emphasis | 50 μs | | Frequency Response | 50 Hz to 15 kHz, ±3 dB | | S/N Ratio | >65 dB | | THD | <1% @ 1 kHz | | Nominal Deviation | ±10 kHz | | Maximum Deviation | ±25 kHz | | Sensor Input | 2 x RCA | | Coverage | 60' (18.2 m) line of sight | | AUX Input | 1 x 3.5 mm with gain control, front panel | | Line Output | 1 x 3.5 mm with gain control, front panel | | Equalization | Tone control, ±6 dB | | Output Power | 30 W RMS, Class D amplifier | | External Speaker Jack | 15 W / 4 Ω | | Output Connection | Two-terminal Phoenix connector | | Power Supply | 15 VDC / 2.3 A / 34.5 W (CE, CSA, and UL listed power supply included) | | Dimensions (W x H x D) | 6.25 x 14.00 x 4.75" (158.75 x 355.60 x 120.65 mm) | | Weight | 4.2 lb (1.9 kg) | - Sapphire Transmitter with Microphone and Lithium-Ion Battery
| Transmitter | Carrier: Infrared | | Transmission Frequency | 2.08 MHz and 2.54 MHz | | Channel | Channel A or B, Field Switchable | | Transmitting Diodes | 6 | | Modulation | FM Wide-Band | | Pilot Tone | Frequency: 32.768 KHz | | Peak Deviation | ± 25KHz | | Operating Range | 60' (18.28 m) line of sight, 1,500 ft² (139.35 m²) | | Indicator Lights | Blue: full
Purple: medium
Red: low
Flashing red: very low battery | | Battery | 3.7V, 620mAh Lithium-ion | | Battery Life | Approximately 8-9 Hours | | External Power | Charger: DC +5V, Micro USB Connector | | Transmission Angle | 180° Conical | | User Controls | Power switch (push): on/off
Mute switch (push): on/off
Microphone switch (3 position): + 6db, normal, - 3db
Auxiliary volume/gain: increase, decrease
Channel select: A or B, in battery compartment | | Auxiliary | External Input: 0.13" (3.5 mm) stereo line level | | Dimensions | 3 x 1.25 x 0.75" (7.62 x 3.17 x 1.9 cm) | | Weight | 1.4 oz (39.68 g) | | | | Box Dimensions (LxWxH) | 5.0 x 3.5 x 1.5" | - Handheld Infrared Transmitter/Microphone with NiMH Batteries (Channel A and B)
| Transmission | Carrier: Infrared | | Transmission Frequency | 2.08 MHz and 2.54 MHz | | Channel Switching | A and B, 2-Channel Field Switchable | | Transmitting Diodes | 10 | | Modulation | FM Wide-Band | | Frequency | Pilotone: 32.768 kHz | | Peak Deviation | ± 25 kHz | | Operating Range | 60' (18.28 m), 2500 ft² (232.25 m2) | | Power Switch | On/Off Slide | | Battery Charge Display | Green (Useable Charge)
Red (Needs Charging) | | Battery Life | Approximately 7 Hours | | Diameter | Head: 2.12" (5.38 cm)
Body: 1.43" (3.63 cm) | | Dimensions | 9.62" (24.43 cm) | | Weight | With Battery: 0.64 lbs (0.29 kg) | | | | Box Dimensions (LxWxH) | 10.3 x 2.8 x 2.5" | - AC-35 AC Switching Power Supply for Quantum II and Maxim II
| Compatibility | Compatible with TeachLogic Quantum II and Maxim II | - BRC-55 Drop-In Charger for Sapphire and IRH-35/40 Microphones/Transmitters
| Compatibility | Compatible with TeachLogic Sapphire and IRH-35/40 Microphones/Transmitters | | Power | 110V | | Charging Time | 10-12 Hours | | Indicator Lights | Red: Charging
Green: Charged | | Dimensions | 7.75 x 2.75 x 3.75" (19.68 x 6.98 x 9.52 cm) | | Weight | 1.75 lb (0.79 kg) |
