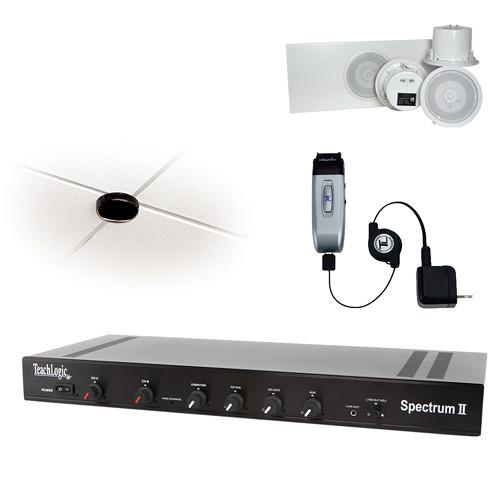

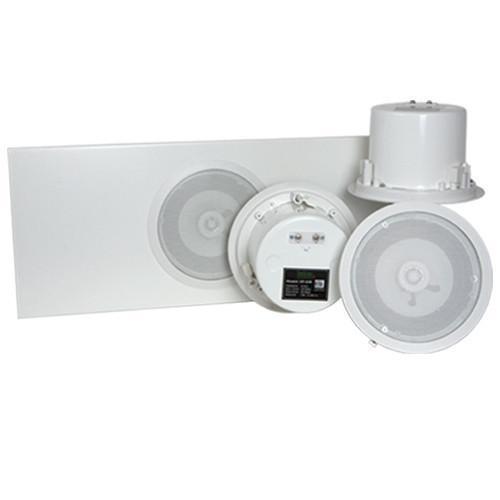

Product description The TeachLogic IRS-7150 Spectrum II Base Station with Sapphire Transmitter and Plug-In Battery Charger is a complete sound-field system for installation in a classroom or similar environment.

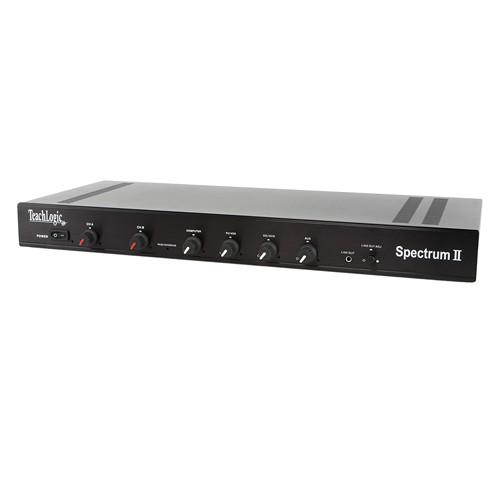

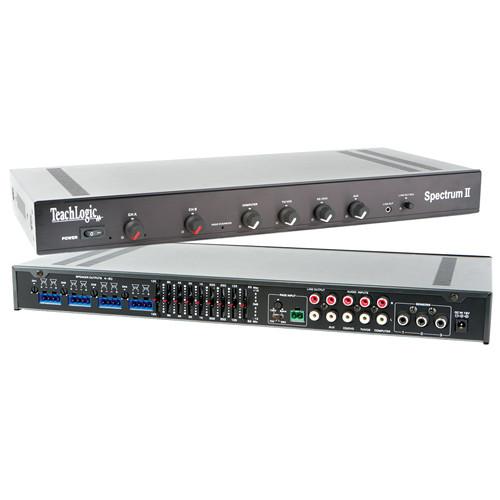

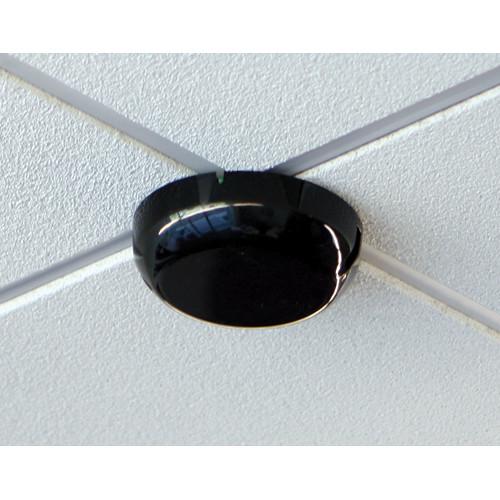

The system package includes the following components: the Spectrum II IMA-700 Amplifier and 2 Infrared Receiver’s base station with switching power supply; the Sapphire Infrared Transmitter / Microphone comes equipped with a rechargeable Lithium-ion battery and unidirectional microphone for true voice reproduction and excellent feedback suppression; the BRC-15 Sapphire Charger connects Sapphire Transmitter for charging via USB or wall adapter. This system also includes the ICS-55 Ceiling Dome Sensor with 50' (15.24m) of plenum-rated cable and a 100' (30.48m) of plenum-rated 18 gauge speaker cable. - Spectrum II Base Station
-
- Four power amplifiers, (18 watts ea. with individual gain controls)
- Powers up to 8Ω speakers
- Two infrared wireless microphone receivers
- Four stereo line level auxiliary inputs
- Front panel audio output for personal FM system with gain control (3.5mm)
- Nine band equalizer for extra fine acoustic tuning
- Page over-ride (muting) with page pass through to classroom speakers
- Two line level outputs (pre-fader) for recording or feed to other system
- Rack or shelf/wall mount kits (optional)

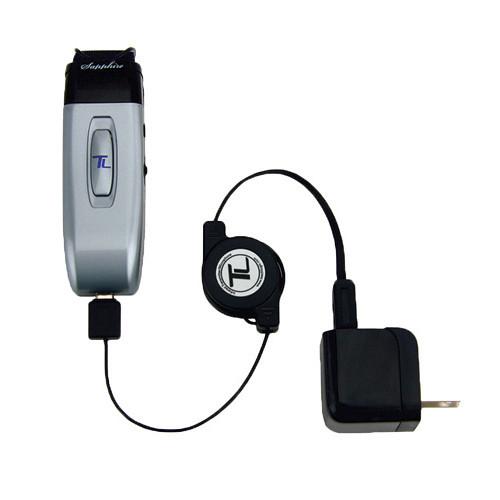

- Sapphire Transmitter
-
- Elegant design
- Long life Lithium-ion battery
- Rechargeable via micro USB cable
- Battery level indicator
- Back light under power switch
- Momentary mute button, Backlight blinks in mute mode
- Push On / Off power
- Channel A or B selectable
- Three level mic volume switch (low, medium, high)
- Auxilary input (3.5mm)
- Low profile clip for mounting
- Wear with a lanyard or directly to neckline collar
In the Box TeachLogic IRS-7150 Spectrum II Base Station with Sapphire Transmitter and Plug-In Battery Charger IMA-700 Spectrum II Amplifier and IR Receivers Base Station Sapphire Transmitter with Microphone and Lithium-Ion Battery BRC-15 Plug-In Wall Charger for Sapphire Transmitter Infrared Dome Sensor 100' (30.48m) of Plenum-Rated 18 Gauge Speaker Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic IRS-7150 Spectrum II Base Station with Sapphire Transmitter and Plug-In Battery Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeachLogic IRS-7150 Specs | | | Receiver Input Ports | Infrared FM | | Modulation | FM wide-band | | Frequencies | Reception: Channel A: 2.08 MHz
Channel B: 2.54 MHz | | Infrared | Wavelength: 850 nm | | Tone Signal | Channel A: 32.768 kHz | | De-Emphasis | 50 μs | | Frequency Response | 40 Hz, -18 kHz, ± 3 dB | | S/N Ratio | >65 dB | | THD | <1% @1 kHz | | Nominal Deviation | ± 10 kHz | | Maximum Deviation | ± 25 kHz | | Sensor Input | External: 3, RCA | | Connectivity | 2,500 sq. ft. (232.26 sq. m) | | AUX Input | 4 aux, line level, Dual RCA | | AUX Outputs | 1 aux, line level, Dual RCA | | Line Output | 3.5 mm with gain control, front panel | | Input | Page Over-Ride: 8Ω, 25 V, 70 V, 100 V | | Equalization | Nine-Band ±12dB | | Output Power | 4 amplifiers, 18 W each (RMS) 72 W total (RMS) | | Output Impedance | 4 Ω | | Output Connection | 4x Phoenix connector | | Power Supply | 19 VDC / 4.75 A / 90 W | | Dimensions (W x H x D) | 17.00 x 1.75 x 7.50" "(431.80 x 44.45 x 190.5 mm) | | Weight | 5.2 lb (2.35 kg) | | | | Transmission | Carrier: Infrared
Frequencies: 2.08 MHz & 2.54 MHz | | Channel | Field switchable A or B | | Transmitting Diodes | 10 | | Modulation | FM wide-band | | Frequency | Pilotone: 32.768 KHz | | Peak Deviation | ± 25KHz | | Operating Range | 1500 sq. ft. (139.35 sq. m) 60' (18.28m) line of sight | | Indicators | Battery Discharge: Blue: full
Purple: medium
Red: low
Flashing Red: very low battery | | Battery | Used: Lithium-ion (3.7V / 620mAh)
Life: Approximately 8 to 9 hours / charge | | External | Power Charger: +5 VDC, Micro USB connector | | Transmission Angle | 180° conical | | User Controls | Power Switch (Push): On / off
Mute Switch (Push): On / off
Mic Switch (3 position): + 6db, Normal, - 6db
Auxiliary Volume / Gain: Increase, decrease
Channel Select: (A or B) in battery compartment | | AUX Input | External: 3.5mm stereo line level | | Dimensions (H x W x D) | 3.62 x 1.25 x 0.75" (91.94 x 31.75 x 19.05 mm) | | Weight | 1.4 oz (85.0 g) with battery |
