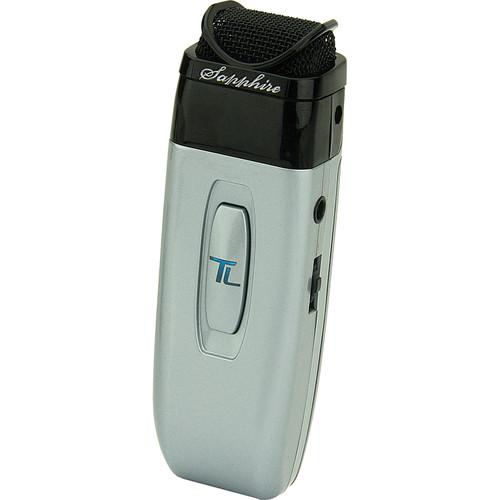

User Manual for TeachLogic IRT-60 Sapphire Infrared Transmitter Microphone w Security Alert & Rechargeable Battery Click to enlarge the picture
Contents of the user manual for the TeachLogic IRT-60 Sapphire Infrared Transmitter Microphone
- Product category: Components & Accessories TeachLogic
- Brand: TeachLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TeachLogic Components & Accessories
|
User manual for the TeachLogic IRT-60 Sapphire Infrared Transmitter Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TeachLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TeachLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TeachLogic product will considerably shorten its lifespan!
|
Product description Well suited for classrooms and forums, the rechargeable IRT-60 Sapphire Infrared Transmitter/Microphone from TeachLogic offers the same aesthetic design and feature set as the IRT-55 Sapphire, but with an additional remote "Security Alert", allowing teacher priority with instant attenuation of the line levels to work with the optional Forum 232 and Maxim III amplifiers. The Sapphire can be worn with a lanyard or clipped directly to your neckline collar and offers a high level output, reliable connectivity, and great definition. With a built-in breath filter, the Sapphire can function as a pass-around hand microphone. Tapping the power button momentarily mutes the microphone, allowing for private conversations. The 3.5mm auxiliary input allows wireless playback of your iPod, while a three-position slide switch provides selections of low, medium, or high microphone volume levels. The included Lithium-Ion battery offers up to 9 hours use. The Sapphire IRT-60 ships with a BRC-15 wall charger and a breakaway lanyard. -
- Long-life Lithium-Ion battery
- Rechargeable via micro USB cable
- Battery level indicator, back light under power switch
- Momentary mute button, backlight blinks in mute mode
- Lightweight Design: 1.4 oz
- Push "on/off" power
- Channel A or B selectable
- Three level microphone volume switch (low, medium, high)
- Auxiliary input (3.5mm)
- Low profile clip for mounting
- Wear with a lanyard or directly to neckline collar
- Includes BRC-15 wall charger
In the Box TeachLogic IRT-60 Sapphire Infrared Transmitter/Microphone w/ Security Alert & Rechargeable Battery Rechargeable Lithium-Ion Battery BRC-15 Plug-In Wall Charger for Sapphire Transmitter Breakaway Lanyard Limited 5-Year Warranty for IRT-60 Limited 2-Year Warranty for Lithium-Ion Battery Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic IRT-60 Sapphire Infrared Transmitter Microphone w Security Alert & Rechargeable Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeachLogic IRT-60 Specs | Transmitter | Carrier: Infrared | | Transmission Frequency | 2.08 and 2.54 MHz | | Channel | Channel A or B, field switchable | | Transmitting Diodes | 6 | | Modulation | FM Wide-Band | | Pilot Tone | Frequency: 32.768 KHz | | Peak Deviation | ± 25KHz | | Operating Range | 60' / 18.28 m (line of sight), 1,500' ² / 139.35 m² | | Indicator Lights | Blue: Full
Purple: Medium
Red: Low
Flashing Red: Very low battery | | Battery | 3.7 V, 620 mAh Lithium-ion | | Battery Life | Approximately 8-9 hours | | External Power | External Power Charger: 5 VDC, micro USB connector | | Transmission Angle | 180° conical | | User Controls | Power Switch (Push): On/off
Mute Switch (Push): On/off
Microphone Switch (3 position): +6 db, normal, -3 db
Auxiliary Volume/Gain: Increase, decrease
Channel Select: A or B, in battery compartment | | Auxiliary Input | External Aux Input: 0.13" / 3.5 mm stereo line level | | Dimensions (H x W x D) | 3 x 1.25 x 0.75" / 7.62 x 3.17 x 1.9 cm | | Weight | 1.4 oz / 39.68 g |
