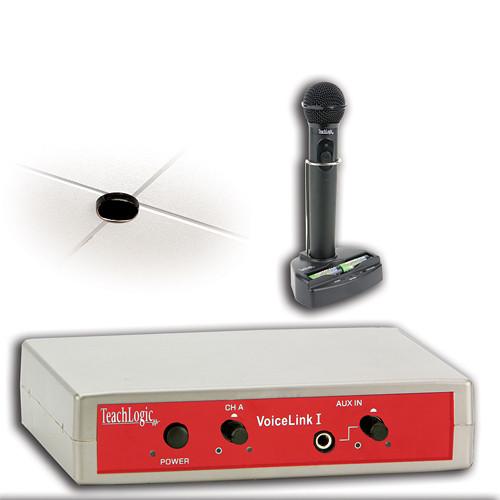

Product description The TeachLogic IRV-1350 Voice Link I Infrared Wireless Microphone System includes the IRH-35 Handheld Transmitter Microphone, IR-100 Receiver, ICS-55 Ceiling Sensor, BRC-101 Drop-In Charger for the microphone, and 50’ plenum rated cable. The handheld microphone enables voice transmission to the ceiling sensor that sends the signal to the receiver. The receiver processes the signal and produces an analog signal of your voice for input to an amplified sound system (not included).This infrared wireless microphone system can be a supplement to an existing multimedia system to expand it's utilization to provide voice reinforcement. The wireless function permits 360° connectivity throughout the classroom regardless of body position or orientation.The transmitter features an on/off switch, LED battery level indicator, and 10 IR emitting diodes. It is enclosed in a metal housing that ensures low handling noise and durability. The rechargeable batteries allow up to 8 hours of use when fully charged.The ICS-55 Ceiling Sensor comes with a mounting bracket and 50’ of plenum rated cable. The ideal location for the dome sensor would be in the center of the ceiling. This will provide a clear signal path for IR transmission from the transmitter to the dome sensor without obstruction. It collects the infrared transmission signal via 6 large detecting diodes. The sensor is connected to the mixer/amplifier via the plenum rated cable terminated with RCA connectors. The mixer/amplifier supplies the power to the sensor. - IR-100 VoiceLink I 1-Channel Infrared Receiver with Power Supply The IR-100 VoiceLink I 1-Channel Infrared Receiver with Power Supply from TeachLogic is a preamp-only receiver and is designed to be plugged into an existing power amplifier or the input of a multi-media sound system. This receiver is designed for use with the VoiceLink I Infrared Wireless Microphone Sound System. The VoiceLink I Wireless System will expand your multi-media sound system to include voice reinforcement via an infrared wireless microphone. The auxiliary input on the front panel of the receiver allows the input of an iPod, computer, or DVD to supplement the instructional program.
- One infrared receiver channel
- One line level auxiliary input
- Line Level Output: Balanced (3-pin Phoenix) and unbalanced (RCA)
- Handheld Infrared Transmitter/Microphone with NiMH Batteries (Channel A and B) TeachLogic's Handheld Infrared Transmitter/Microphone with NiMH Batteries (Channel A and B) has an ergonomic design that provides user comfort and very low handling noise. The unidirectional condenser reproduces excellent vocal quality and the windscreen prevents breath pops. The emitting diodes are located around the top and bottom end of the handle for 360° transmission and assured connectivity throughout the classroom. Two rechargeable NiMH batteries are included.
- Condenser microphone element
- Battery level indicator-LED
- 10 high-power emitting diodes
- Diodes at top and bottom of handle for increased coverage (2 top aimed out, 6 bottom 360°, 2 bottom aimed down)
- 360º IR radiation for assured connectivity
- BRC-101 Drop-In Charger for IRH-35/40 Microphone/Transmitter TeachLogic's BRC-101 Drop-In Charger for IRH-35/40 Microphone/Transmitter is a drop-in charger for the TeachLogic IRH-35 and IRH-40 handheld micrphone/transmitter.
- Infrared Dome Sensor TeachLogic's Infrared Dome Sensor needs to be installed on the ceiling at least 3' from the video projector. It comes with a mounting/support bracket and 50' of plenum rated cable with RCA connector on each end. The ideal location for the dome sensor would be in the center of the ceiling. This will provide a clear signal path for the IR transmission from the transmitter to the dome sensor without obstruction. In addition, you will have 360° coverage and will minimize the transmission distance for more reliable performance. It collects the infrared transmission signal via 6 large detecting diodes. The sensor is connected to the mixer/amplifier via a plenum rated cable terminated with RCA connectors. The mixer/amplifier supplies the power to the sensor.
- Easily installs on ceiling "T" bar with track bracket
- 6 large receiving diodes for infrared reception
In the Box Bundle Items IR-100 VoiceLink I 1-Channel Infrared Receiver with Power Supply xdwvbfeqfscuazcwzqcffcvxdxbcabuu - Limited 5-Year Warranty on Parts & Labor
Handheld Infrared Transmitter/Microphone with NiMH Batteries (Channel A and B) BRC-101 Drop-In Charger for IRH-35/40 Microphone/Transmitter Infrared Dome Sensor - 50' 75Ω Dual-Shielded Plenum-Rated Cable
Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic IRV-1350 Voice Link I Infrared Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - IR-100 VoiceLink I 1-Channel Infrared Receiver with Power Supply
| Receiver | Input: Infrared FM | | Modulation | FM wide-band | | Frequency | Reception Frequencies:
Channel A: 2.08 MHz | | Wavelength | Infrared Wavelength: 850 nm | | Tone Signal | Channel A: 32.768 kHz | | De-Emphasis | 50 µs | | Frequency Response | 50 Hz, -13 kHz, ±3 dB | | S/N Ratio | >65 dB | | THD | <1% @ 1 kHz | | Nominal Deviation | ±10 kHz | | Maximum Deviation | ±25 kHz | | Input | External Sensor: 2 x RCA
Auxillary: 3.5 mm with gain control (front panel) | | Line Output | 1 V balanced line level
3-pin Phoenix connector
Unbalanced line level
RCA | | Power Supply | 12 VDC / 0.6 A / 7.2 W | | Enclosure | ABS | | Dimensions (W x H x D) | 5.0 x 1.0 x 4.5" (127.0 x 25.4 x 114.3 mm) | | Weight | 9.10 oz (257.98 g) | - Handheld Infrared Transmitter/Microphone with NiMH Batteries (Channel A and B)
| Transmission | Carrier: Infrared | | Transmission Frequency | 2.08 MHz and 2.54 MHz | | Channel Switching | A and B, 2-Channel Field Switchable | | Transmitting Diodes | 10 | | Modulation | FM Wide-Band | | Frequency | Pilotone: 32.768 kHz | | Peak Deviation | ± 25 kHz | | Operating Range | 60' (18.28 m), 2500 ft² (232.25 m2) | | Power Switch | On/Off Slide | | Battery Charge Display | Green (Useable Charge)
Red (Needs Charging) | | Battery Life | Approximately 7 Hours | | Diameter | Head: 2.12" (5.38 cm)
Body: 1.43" (3.63 cm) | | Dimensions | 9.62" (24.43 cm) | | Weight | With Battery: 0.64 lbs (0.29 kg) | | | | Box Dimensions (LxWxH) | 10.3 x 2.8 x 2.5" | - BRC-101 Drop-In Charger for IRH-35/40 Microphone/Transmitter
| Compatibility | Compatible with TeachLogic IRH-35/40 Microphone/Transmitter | | Power | 110V | | Charging Time | 10-12 Hours | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | - Infrared Dome Sensor
| Operating Frequencies | 2.3 mHz to 2.8 mHz | | IR Receiver | 6 large lens diodes | | Coverage | 360° | | Range | 40-50' (12.19-15.24 m) line of sight, 2500 ft2 (232.25 m2) | | Mounting | Clip-on "T" bar bracket | | Connector | Female RCA | | Indicator Lights | Green LED for Power On | | Cable | 75 ohm
Dual-shielded
Plenum-rated | | Cable Length | 50' (15.24 m) | | Dimensions | 4.62 x 1.37" (11.73 x 3.47 cm) | | Weight | 0.46 lbs (0.2 kg) |
