TeachLogic IRV-3150 CS2 VoiceLink Plus Sapphire

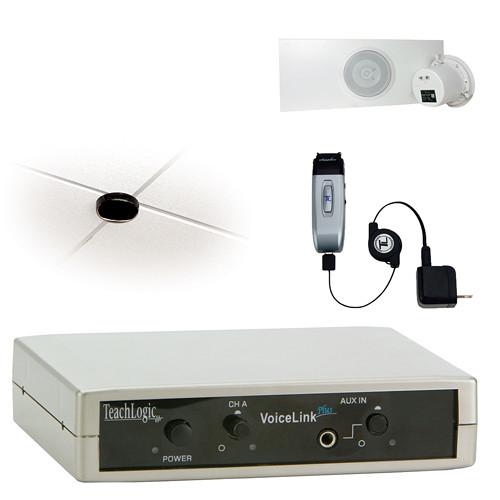

User Manual for TeachLogic IRV-3150 CS2 VoiceLink Plus Sapphire System with Two Ceiling Mount Speakers and Tile Bridges

• Product category: Assistive Listening Systems TeachLogic
• Brand: TeachLogic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for TeachLogic Assistive Listening Systems

Product description

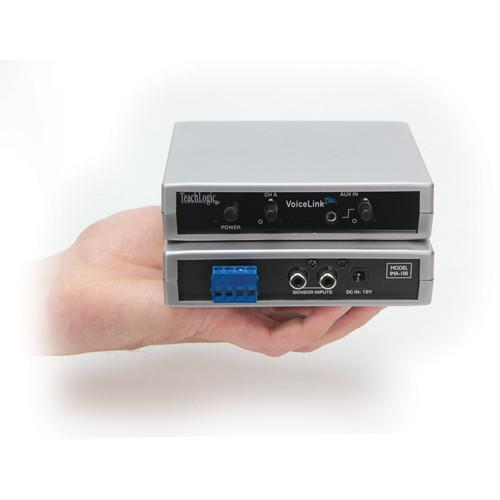

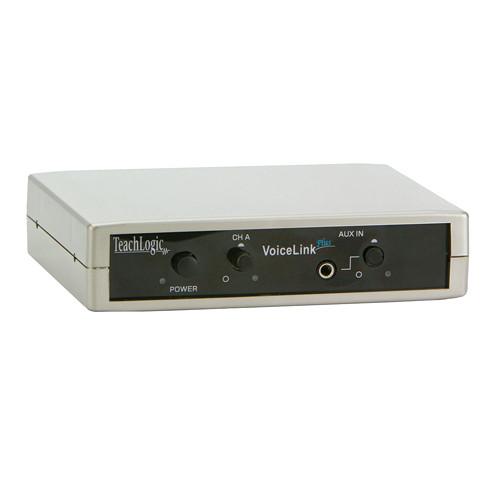

• IMA-100 Voicelink Plus 1-Channel Infrared Microphone Receiver/Amplifier with Power Supply The IMA-100 Voicelink Plus 1-Channel Infrared Microphone Receiver/Amplifier with Power Supply from TeachLogic features a 1-channel infrared receiver and two 10W amplifiers to power two or four speakers (sold separately). This receiver/amplifier is a part of the Voicelink Plus Wireless Classroom Microphone System, which also consists of a microphone/transmitter and ceiling sensor. The ceiling sensor (sold separately) senses the infrared signal emitted from the microphone/transmitter (sold separately) and sends the voice signal to the receiver. The receiver processes the signal and produces an analog signal which is fed to the power amplifier. The output of the amplifier is fed to the speakers. The receiver can also accept an input from another audio source such as an iPod, computer, DVD, or video projector via the auxiliary input on the front panel. The receiver/amplifier can be placed on desk top, mounted on the wall, or on top or under a shelf using the mounting flanges and hardware provided.
  • 1-channel infrared receiver
  • Two 10W amplifiers
  • One 4-pin Phoenix speaker out connector
  • One line level auxiliary input on the front panel with adjustable gain, 3.5mm input jack
  • Two RCA sensor inputs
  • Includes mounting brackets

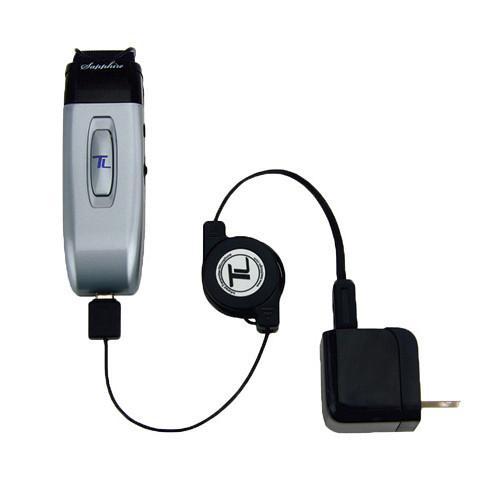

• Sapphire Transmitter with Microphone and Lithium-Ion Battery TeachLogic's Sapphire Transmitter with Microphone and Lithium-Ion Battery is a lightweight classroom microphone and comes with a rechargeable lithium-ion battery. It can be worn with a lanyard or clipped directly to your neckline collar. It has high level output, reliable connectivity and great definition. With a built-in breath filter, the Sapphire can function as a pass-around hand microphone. With a tap on the power button, the microphone mutes for private conversation-tap again to restore to normal operation. The auxiliary input allows wireless playback of your iPod. A three-position slide switch provides selection of low, medium, or high microphone volume levels.
  • Long life lithium-ion battery
  • Rechargeable via micro USB cable
  • Battery level indicator, back light under power switch
  • Momentary mute button, backlight blinks in mute mode
  • Push "on/off" power
  • Channel A or B selectable
  • Three level microphone volume switch (low, medium, high)
  • Auxiliary input (3.5mm)
  • Low profile clip for mounting
  • Wear with a lanyard or directly to neckline collar
• BRC-15 Plug-In Wall Charger for Sapphire Transmitter TeachLogic's BRC-15 Plug-In Wall Charger for Sapphire Transmitter is a plug-in wall charger for the TeachLogic Sapphire transmitter.

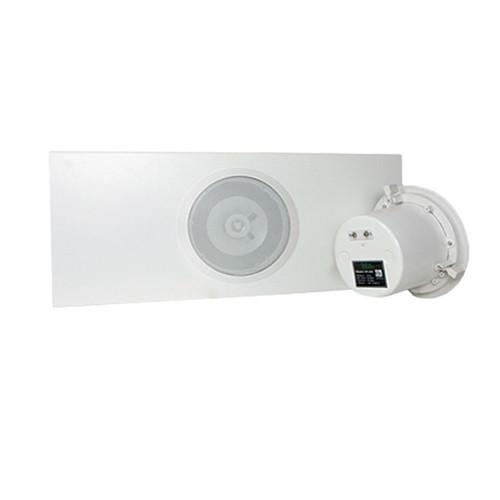

• SP-628 Ceiling Speaker, Coaxial, 8 ohm, with Metal Back Can and Tile Bridge TeachLogic's SP-628 Ceiling Speaker, Coaxial, 8 ohm, with Metal Back Can and Tile Bridge is a full range compact coaxial ceiling speaker that provides low distortion and a smooth natural frequency response, making it great for articulate vocal clarity. The speaker has an integrated steel back can along with a 24" tile bridge which allows for quick and easy installation. The speaker is ETL Plenum rated and conforms to UL2043 standard.
  • Air sealed metal back can for an infinite baffle
  • 6" cone driver with a 1" Mylar dome tweeter

• Mounting Brackets & Hardware

• Power Supply

• Limited 5-Year Warranty

• Rechargeable Lithium-Ion Battery

• Limited 5-Year Warranty

• Limited 5-Year Warranty

• Galvanized Steel Tile Bridge

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• IMA-100 Voicelink Plus 1-Channel Infrared Microphone Receiver/Amplifier with Power Supply

  Input	Infrared FM
  Modulation	FM wide-band
  Frequencies	Reception (Channel A): 2.08 MHz
  Infra-red Wavelength	850 nm
  Tone Signal	Channel A: 32.768 kHz
  De-Emphasis	50 μs
  Frequency Response	50 Hz, -13 KHz, ± 3 dB
  S/N Ratio	>65 dB
  THD	<1% @ 1 kHz
  Nominal Deviation	±10 kHz
  Maximum Deviation	±25 kHz
  Sensor Input	2 x RCA
  AUX Input	3.5 mm with gain control, front panel
  Output Power	Two Amplifiers: Each: 10 W RMS Total: 20 W RMS
  Output Impedance	4 Ω
  Output Connection	1 x 4-pin Phoenix
  Power Supply	12 VDC / 0.6 A / 7.2 W
  Enclosure	ABS
  Dimensions (W x H x D)	5.0 x 1.0 x 4.5" (127.0 x 25.4 x 114.3 mm)
  Weight	1.00 lb (0.45 kg)

  Box Dimensions (LxWxH)	10.3 x 7.9 x 1.8"

• Sapphire Transmitter with Microphone and Lithium-Ion Battery

  Transmitter	Carrier: Infrared
  Transmission Frequency	2.08 MHz and 2.54 MHz
  Channel	Channel A or B, Field Switchable
  Transmitting Diodes	6
  Modulation	FM Wide-Band
  Pilot Tone	Frequency: 32.768 KHz
  Peak Deviation	± 25KHz
  Operating Range	60' (18.28 m) line of sight, 1,500 ft² (139.35 m²)
  Indicator Lights	Blue: full Purple: medium Red: low Flashing red: very low battery
  Battery	3.7V, 620mAh Lithium-ion
  Battery Life	Approximately 8-9 Hours
  External Power	Charger: DC +5V, Micro USB Connector
  Transmission Angle	180° Conical
  User Controls	Power switch (push): on/off Mute switch (push): on/off Microphone switch (3 position): + 6db, normal, - 3db Auxiliary volume/gain: increase, decrease Channel select: A or B, in battery compartment
  Auxiliary	External Input: 0.13" (3.5 mm) stereo line level
  Dimensions	3 x 1.25 x 0.75" (7.62 x 3.17 x 1.9 cm)
  Weight	1.4 oz (39.68 g)

  Box Dimensions (LxWxH)	5.0 x 3.5 x 1.5"

• BRC-15 Plug-In Wall Charger for Sapphire Transmitter

  Compatibility	Compatible with TeachLogic Sapphire Transmitter
  Power	110V
  Charging Time	10-12 Hours
  Dimensions	Not Specified by Manufacturer
  Weight	Not Specified by Manufacturer

• SP-628 Ceiling Speaker, Coaxial, 8 ohm, with Metal Back Can and Tile Bridge

  Frequency Response	80 Hz to 15 kHz, ± 6dB
  Power	30 Watts Continuous
  Sensitivity	89dB SPL (1W/1M)
  Impedance	8Ω
  Crossover Frequency	6 kHz
  Nominal Coverage Angle	90 x 90°
  Driver	5.25" (13.33 cm) Polymica/rubber 1" (2.54 cm) high efficient domed tweeter, neodymium
  Enclosure Material	Air sealed metal back can with infinite baffle
  Termination	Screw terminals for secure speaker wire connection
  Mounting	Three quick-mount clamps
  Dimensions (HxD)	5.5 x 8" (13.97 x 20.32 cm)
  Weight	5.12 lbs (2.32 kg) Magnet: 10 oz (0.28 kg)

  Box Dimensions (LxWxH)	9.0 x 8.9 x 6.3"
