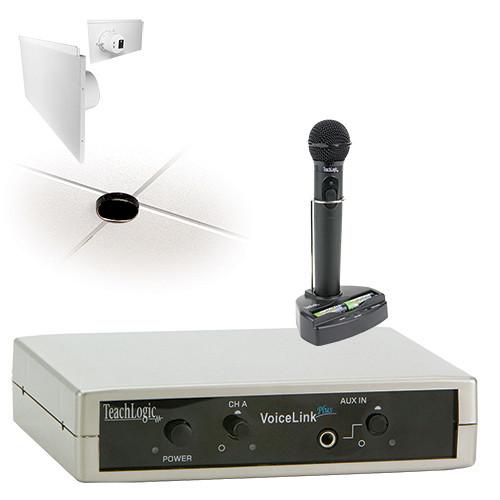

User Manual for TeachLogic IRV-3435 VoiceLink Plus Wireless Microphone System with Four Lay-in Panel Speakers Click to enlarge the picture
Contents of the user manual for the TeachLogic IRV-3435 VoiceLink Plus Wireless Microphone
- Product category: Assistive Listening Systems TeachLogic
- Brand: TeachLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TeachLogic Assistive Listening Systems
|
User manual for the TeachLogic IRV-3435 VoiceLink Plus Wireless Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TeachLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TeachLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TeachLogic product will considerably shorten its lifespan!
|
Product description The IRV-3435 VoiceLink Plus Wireless Microphone System with Four Lay-in Panel Speakers from TeachLogic is designed for use in a classroom environment. The VoiceLink Plus reinforces the teacher's voice and amplifies audio sources. The VoiceLink Plus system features an infrared wireless microphone receiver with a 20 watt amplifier designed to power four included speakers. The unit has an auxiliary input on the front panel, which facilitates the output of a computer DVD or iPod to supplement the instructional program.
The VoiceLink Plus comes with a handheld infrared transmitter/microphone with NiMH batteries (Channel A and B). The transmitter has an ergonomic design that provides user comfort and very low handling noise. The unidirectional condenser reproduces excellent vocal quality and the windscreen prevents breath pops. The emitting diodes are located around the top and bottom end of the handle for 360° transmission and assured connectivity throughout the classroom.
The IRV-3435 VoiceLink Plus also includes four lay-in panel speakers, a Duracell NiMH battery, a drop-in battery charger, and a ceiling sensor for IR connectivity. - One IR wireless microphone receiver
- One Auxiliary front panel 3.5mm jack line level input with adjustable gain
- One four-pin phoenix speaker connector
In the Box TeachLogic IRV-3435 VoiceLink Plus Wireless Microphone System with Four Lay-in Panel Speakers IMA-100 Voicelink Plus 1-Channel Infrared Microphone Receiver/Amplifier with Power Supply Infrared Dome Sensor Handheld Infrared Transmitter/Microphone with NiMH Batteries (Channel A and B) BRC-101 Drop-In Charger for IRH-35/40 Microphone/Transmitter 4 x Lay-In Ceiling Speaker 60' 18 Gauge Speaker Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic IRV-3435 VoiceLink Plus Wireless Microphone System with Four Lay-in Panel Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeachLogic IRV-3435/LS4 Specs | | | Enclosure | ABS | | Receiver Input | Infrared FM | | Modulation | FM Wide-band | | Reception Frequencies | Ch. A: 2.08 MHz | | Infra-Red Wavelength | 850 nm | | Tone Signal | Ch. A: 32.768 kHz | | De-Emphasis | 50 µs | | Frequency Response | 50 Hz - 13 kHz, ± 3 dB | | S / N Ratio | ›65 dB | | Total Harmonic Distortion (THD) | ‹ 1% @ 1 kHz | | Nominal Deviation | ± 10 kHz | | Maximum Deviation | ± 25 kHz | | Sensor Input | 2 x RCA | | AUX Input | 1 x 3.5 mm jack with gain control (front panel) | | Output Power (RMS) | 2 x 10 W amplifier | | Output Impedance | 4 Ω | | Output Connection | 1 x 4-pin Phoenix connector | | Power Supply | 12 VDC, 0.6 A, 7.2 W | | Dimensions (W x H x D) | 5.0 x 1.0 x 4.5" (12.7 x 2.5 x 11.4 cm) | | Weight | 1.0 lb (0.45 kg) | | | | Transmitter | Carrier: Infrared | | Transmission Frequency | 2.08 MHz and 2.54 MHz | | Battery | AA Rechargeable NiMH batteries | | | | Frequency Range | 80 Hz - 15 kHz, ± 6 dB | | Power | 30 W, continuous | | Impedance | 8 Ω |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
