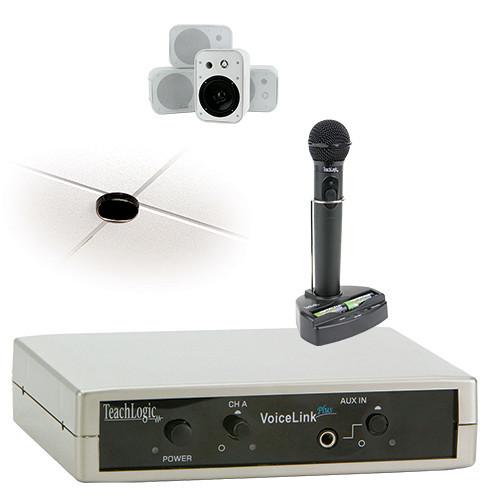

User Manual for TeachLogic IRV-3435 VoiceLink Plus Wireless Microphone System with Four Wall-Mount Speakers Click to enlarge the picture
Contents of the user manual for the TeachLogic IRV-3435 VoiceLink Plus Wireless Microphone
- Product category: Assistive Listening Systems TeachLogic
- Brand: TeachLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TeachLogic Assistive Listening Systems
|
User manual for the TeachLogic IRV-3435 VoiceLink Plus Wireless Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TeachLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TeachLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TeachLogic product will considerably shorten its lifespan!
|
Product description The IRV-3435 VoiceLink Plus Wireless Microphone System with Four Wall-Mount Speakers from TeachLogic is a complement to interactive whiteboard systems. The VoiceLink Plus is designed to reinforce the teacher's voice and to amplify media sources. The VoiceLink Plus system features an infrared wireless microphone receiver with a 20 watt amplifier designed to power four speakers. The included wireless Sapphire microphone has a capsule which allows maximum gain before feedback. The unit has an auxiliary input on the front panel, which facilitates the output of a computer DVD or iPod to supplement the instructional program.
The VoiceLink Plus comes with a handheld infrared transmitter/microphone with NiMH batteries (Channel A and B). The transmitter has an ergonomic design that provides user comfort and very low handling noise. The unidirectional condenser reproduces excellent vocal quality and the windscreen prevents breath pops. The emitting diodes are located around the top and bottom end of the handle for 360° transmission and assured connectivity throughout the classroom.
The IRV-3435 VoiceLink Plus also includes four wall-mount speakers, a Duracell NiMH battery, a drop-in battery charger, and a ceiling sensor for IR connectivity. - IMA-100 Voicelink Plus 1-Channel Infrared Microphone Receiver/Amplifier with Power Supply The IMA-100 Voicelink Plus 1-Channel Infrared Microphone Receiver/Amplifier with Power Supply from TeachLogic features a 1-channel infrared receiver and two 10W amplifiers to power two or four speakers (sold separately). This receiver/amplifier is a part of the Voicelink Plus Wireless Classroom Microphone System, which also consists of a microphone/transmitter and ceiling sensor. The ceiling sensor (sold separately) senses the infrared signal emitted from the microphone/transmitter (sold separately) and sends the voice signal to the receiver. The receiver processes the signal and produces an analog signal which is fed to the power amplifier. The output of the amplifier is fed to the speakers. The receiver can also accept an input from another audio source such as an iPod, computer, DVD, or video projector via the auxiliary input on the front panel. The receiver/amplifier can be placed on desk top, mounted on the wall, or on top or under a shelf using the mounting flanges and hardware provided.
- 1-channel infrared receiver
- One 4-pin Phoenix speaker out connector
- One line level auxiliary input on the front panel with adjustable gain, 3.5mm input jack
- Includes mounting brackets
- Infrared Dome Sensor TeachLogic's Infrared Dome Sensor needs to be installed on the ceiling at least 3' from the video projector. It comes with a mounting/support bracket and 50' of plenum rated cable with RCA connector on each end. The ideal location for the dome sensor would be in the center of the ceiling. This will provide a clear signal path for the IR transmission from the transmitter to the dome sensor without obstruction. In addition, you will have 360° coverage and will minimize the transmission distance for more reliable performance. It collects the infrared transmission signal via 6 large detecting diodes. The sensor is connected to the mixer/amplifier via a plenum rated cable terminated with RCA connectors. The mixer/amplifier supplies the power to the sensor.
- Easily installs on ceiling "T" bar with track bracket
- 6 large receiving diodes for infrared reception
- Handheld Infrared Transmitter/Microphone with NiMH Batteries (Channel A and B) TeachLogic's Handheld Infrared Transmitter/Microphone with NiMH Batteries (Channel A and B) has an ergonomic design that provides user comfort and very low handling noise. The unidirectional condenser reproduces excellent vocal quality and the windscreen prevents breath pops. The emitting diodes are located around the top and bottom end of the handle for 360° transmission and assured connectivity throughout the classroom. Two rechargeable NiMH batteries are included.
- Condenser microphone element
- Battery level indicator-LED
- 10 high-power emitting diodes
- Diodes at top and bottom of handle for increased coverage (2 top aimed out, 6 bottom 360°, 2 bottom aimed down)
- 360º IR radiation for assured connectivity
- BRC-101 Drop-In Charger for IRH-35/40 Microphone/Transmitter TeachLogic's BRC-101 Drop-In Charger for IRH-35/40 Microphone/Transmitter is a drop-in charger for the TeachLogic IRH-35 and IRH-40 handheld micrphone/transmitter.
- Wall-Mount/Bookshelf Speaker with Mount Bracket TeachLogic's Wall-Mount/Bookshelf Speaker with Mount Bracket is a full range 2-way compact wall mount/shelf mount speaker. This speaker provides low distortion and a smoother frequency response ideal for articulate vocal clarity for more even coverage. The included wall-mount bracket enables the unit to be secured against a wall or other flat surface.
- Structural reinforced ABS enclosure with metal mesh grille
- Mounting bracket for wall-mount or desk top stance
- Spring terminal for secure speaker wire connection
- 6" woofer and a high efficient 1" Mylar domed tweeter
- Housed in a ported enclosure
- Shielded magnet to prevent video interference
In the Box Bundle Items IMA-100 Voicelink Plus 1-Channel Infrared Microphone Receiver/Amplifier with Power Supply rfqrbqcfwbxssdtquctadvxzbv - Mounting Brackets & Hardware
Infrared Dome Sensor - 50' 75Ω Dual-Shielded Plenum-Rated Cable
Handheld Infrared Transmitter/Microphone with NiMH Batteries (Channel A and B) BRC-101 Drop-In Charger for IRH-35/40 Microphone/Transmitter 4 x Wall-Mount/Bookshelf Speaker with Mount Bracket
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic IRV-3435 VoiceLink Plus Wireless Microphone System with Four Wall-Mount Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - IMA-100 Voicelink Plus 1-Channel Infrared Microphone Receiver/Amplifier with Power Supply
| Input | Infrared FM | | Modulation | FM wide-band | | Frequencies | Reception (Channel A): 2.08 MHz | | Infra-red Wavelength | 850 nm | | Tone Signal | Channel A: 32.768 kHz | | De-Emphasis | 50 μs | | Frequency Response | 50 Hz, -13 KHz, ± 3 dB | | S/N Ratio | >65 dB | | THD | <1% @ 1 kHz | | Nominal Deviation | ±10 kHz | | Maximum Deviation | ±25 kHz | | Sensor Input | 2 x RCA | | AUX Input | 3.5 mm with gain control, front panel | | Output Power | Two Amplifiers:
Each: 10 W RMS
Total: 20 W RMS | | Output Impedance | 4 Ω | | Output Connection | 1 x 4-pin Phoenix | | Power Supply | 12 VDC / 0.6 A / 7.2 W | | Enclosure | ABS | | Dimensions (W x H x D) | 5.0 x 1.0 x 4.5" (127.0 x 25.4 x 114.3 mm) | | Weight | 1.00 lb (0.45 kg) | | | | Box Dimensions (LxWxH) | 10.3 x 7.9 x 1.8" | - Infrared Dome Sensor
| Operating Frequencies | 2.3 mHz to 2.8 mHz | | IR Receiver | 6 large lens diodes | | Coverage | 360° | | Range | 40-50' (12.19-15.24 m) line of sight, 2500 ft2 (232.25 m2) | | Mounting | Clip-on "T" bar bracket | | Connector | Female RCA | | Indicator Lights | Green LED for Power On | | Cable | 75 ohm
Dual-shielded
Plenum-rated | | Cable Length | 50' (15.24 m) | | Dimensions | 4.62 x 1.37" (11.73 x 3.47 cm) | | Weight | 0.46 lbs (0.2 kg) | - Handheld Infrared Transmitter/Microphone with NiMH Batteries (Channel A and B)
| Transmission | Carrier: Infrared | | Transmission Frequency | 2.08 MHz and 2.54 MHz | | Channel Switching | A and B, 2-Channel Field Switchable | | Transmitting Diodes | 10 | | Modulation | FM Wide-Band | | Frequency | Pilotone: 32.768 kHz | | Peak Deviation | ± 25 kHz | | Operating Range | 60' (18.28 m), 2500 ft² (232.25 m2) | | Power Switch | On/Off Slide | | Battery Charge Display | Green (Useable Charge)
Red (Needs Charging) | | Battery Life | Approximately 7 Hours | | Diameter | Head: 2.12" (5.38 cm)
Body: 1.43" (3.63 cm) | | Dimensions | 9.62" (24.43 cm) | | Weight | With Battery: 0.64 lbs (0.29 kg) | | | | Box Dimensions (LxWxH) | 10.3 x 2.8 x 2.5" | - BRC-101 Drop-In Charger for IRH-35/40 Microphone/Transmitter
| Compatibility | Compatible with TeachLogic IRH-35/40 Microphone/Transmitter | | Power | 110V | | Charging Time | 10-12 Hours | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | - Wall-Mount/Bookshelf Speaker with Mount Bracket
| Frequency Range | 80 Hz to 16 kHz, ± 6dB | | Power | 30 Watts Continuous | | Sensitivity | 88 dB SPL | | Impedance | 8 Ω | | Crossover Frequency | 6 kHz | | Nominal Coverage Angle | 90 x 90° | | Driver | LF: 5.25" (13.33 cm) polycarbonate/rubber
HF: 1" (2.54 cm) high efficient Mylar domed tweeter | | Enclosure Material | Structural reinforced ABS enclosure with metal mesh grille | | Termination | Spring terminal for secure speaker wire connection | | Dimensions | 5.5 x 7.25 x 4.25" (13.97 x 18.41 x 10.79 cm) | | Weight | 5.12 lbs (2.32 kg) |
