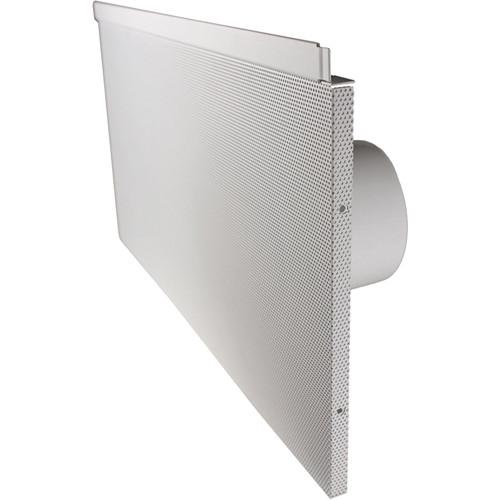

User Manual for TeachLogic Lay-In Ceiling Speaker Click to enlarge the picture
Contents of the user manual for the TeachLogic Lay-In Ceiling Speaker
- Product category: Installed Speakers TeachLogic
- Brand: TeachLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TeachLogic Installed Speakers
|
User manual for the TeachLogic Lay-In Ceiling Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TeachLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TeachLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TeachLogic product will considerably shorten its lifespan!
|
Product description TeachLogic's Lay-In Ceiling Speaker is a full range compact coaxial ceiling speaker that provides low distortion and a smooth natural frequency response ideal for articulate vocal clarity. Included is a 12" frame, a perforated steel grill, and an integrated steel back can and attached "T" bar for finished edge. It is a quick installation with minimal tile cutting. - Complete speaker assembly (12 x 24")
- Heavy duty support for anti rattle or movement
- Air sealed metal back can for an infinite baffle
- 6.5" cone driver with a 1" Mylar dome tweeter
- Completely painted, tile white
- No speaker assembly required
- Quick and efficient installation
Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic Lay-In Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeachLogic SP-628L Specs | Frequency Response | 80 Hz to 15 kHz, ± 6dB | | Power | 30 Watts Continuous | | Sensitivity | 89dB SPL (1W/1M) | | Impedance | 8Ω | | Crossover Frequency | 6 kHz | | Nominal Coverage Angle | 90° x 90° | | Driver | 6.5" (16.51 cm) Polymica/rubber
1" (2.54 cm) high efficient domed tweeter, neodymium | | Enclosure Material | Air sealed metal back can with infinite baffle | | Termination | Screw terminals for secure speaker wire connection | | Mounting | 12 x 24" (30.48 x 60.96 cm) lay-in speaker assembly | | Thickness | Panel: 0.62" (1.57 cm) | | Dimensions | 12.25 x 23.75 x 6.25" (31.11 x 60.32 x 15.87 cm)
With T-Bar Support: 13 x 23.75 x 6.25" (33.02 x 60.32 x 15.87 cm) | | Weight | 8 lbs (3.62 kg) |
