TeachLogic PS-960 LAP AirLink UHF 96-Channel

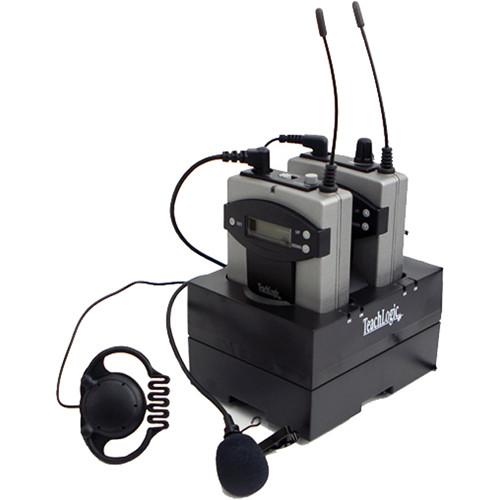

User Manual for TeachLogic PS-960 LAP AirLink UHF 96-Channel Wireless Personal FM System with LM-835 Lapel Microphone

• Product category: Wireless Systems TeachLogic
• Brand: TeachLogic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for TeachLogic Wireless Systems

Product description

• UT-96BP Bodypack Radio Frequency Transmitter The UT-96BP Bodypack Radio Frequency Transmitter from TeachLogic features 96 selectable UHF channels. It transmits a composite voice and RF (UHF) signal to the receiver (sold separately). It is usually worn on the waistband with an external microphone (not included) plugged in for vocal input. It ensures reliable connectivity in excess of 200' (60.9m). The transmitter requires two AA batteries (sold separately) for 6 to 8 hours of continuous transmission. Note: The bodypack transmitter is meant to be used with an external microphone (not included).
  • Selectable 96 UHF channels
  • Push-button channel select
  • LCD readout for selected channel number, frequency, and battery condition
  • 3.5mm microphone input
  • Microphone mute button
  • 3.5mm Aux line level input jack
  • Low battery power consumption
  • High / mid / low microphone sensitivity switch
  • Durable metal case
  • Metal belt clip
  • Compatible with drop-in charger (sold separately)
  • Requires two AA batteries (sold separately) for 6 to 8 hours of continuous transmission
• UR-96BP UHF Personal Body-Pack RF Receiver The UR-96BP UHF Personal Body-Pack Receiver from TeachLogic is a portable, battery-powered, UHF radio frequency receiver (96 channels selectable) with an earphone and line level output. It is suitable for monitoring signal transmission or inserting a line level signal into a sound system. It is also suitable for receiving a wireless signal to insert into self-powered speakers.

  It can also be used for personal listening and guided tour systems. It is 100% compatible with TeachLogic RF transmitters, Titan, and AirLink systems.
  • • 96 UHF channel selectable
    • Push-button channel select
    • LCD readout: Selected channel, frequency, battery condition
    • Aux Output 0.1” (3.5mm)
    • Low battery power consumption
    • Durable metal case
    • High / mid / low aux output sensitivity switch
    • Ear phone volume control
    • Metal belt clip
    • Drop-in charger compatible
    • Requires 2x AA batteries
• Lapel Microphone with 3.5mm Connector TeachLogic's Lapel Microphone with 3.5mm Connector is a small capsule microphone with a spring clip for securing on to a clothing edge. The lapel microphone is well suited for out of sight application. As a result of the microphone being farther away from the mouth, more gain is required for adequate volume. An omnidirectional microphone element is used to pick up from all directions. These two factors make the lapel microphone most prone to feedback when used near or under a speaker.
• ES-100 Single Ear Speaker for UR-96BP Receiver TeachLogic's ES-100 is a single ear speaker for the TeachLogic UR-96BP receiver.
• BRC-75 Drop-In Charger for Bodypack and UR-96BP/UT96BP TeachLogic's BRC-75 Drop-In Charger for Bodypack and UR-96BP/UT96BP is a drop-in charger for two TeachLogic Bodypacks and one UR-96BP or T96BP microphone/transmitter.
• AA NiMH Rechargeable Batteries (2,450mAh, 2 Pack) This two pack of AA NiMH Rechargeable Batteries from TeachLogic includes rechargeable batteries with a capacity of 2,450 mAh.

• Limited 3-Year Warranty on Parts & Labor

• Limited 3-Year Warranty

• Limited 5-Year Warranty

• Limited 3-Year Warranty

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• UT-96BP Bodypack Radio Frequency Transmitter

  Frequency Bands	Operating: 640 to 664 MHz
  Selectable Channels	96 pre-programmed
  Maximum Deviation	80 kHz, with level limiting
  Dynamic Range	>80 dB
  THD	>1%
  Pre-Emphasis	<50 μs
  De-Emphasis	<50 μs
  Audio Input	3.5 mm Aux In
  AF Control	Mic mute button Mic high / mid / low switch
  Operating Life	14 hours (NiMH) or 17 hours (Alkaline), full charge
  Housing	Aluminum
  Dimension (D x W x H)	1.0 x 2.5 x 3.3" (25.4 x 63.5 x 85.5 mm)
  Weight	10.5 oz (297.6 g)

• UR-96BP UHF Personal Body-Pack RF Receiver

  Operating frequency bands	640 to 664 MHz
  Selectable Channels	96 Pre-programmed
  Maximum Deviation	80 kHz, with level limiting
  Dynamic Range	>80 dB
  THD	<1%
  Pre-Emphasis	<50 μs
  De-Emphasis	<50 μs
  Audio Output	Aux output, 1/4" (3.5 mm) 1/4" (3.5 mm) Ear phone jack
  AF Control	High / mid / low aux output switch
  Battery	2x 1.2 V NiMH rechargeable or 2x 1.5 V Alkaline
  Operating	Life: 14 hours (NiMH) or 17 hours (Alkaline), full charge
  Housing	Aluminum
  Dimension (DxWxH)	1.0 x 2.5 x 3.3" (25.4 x 63.5 x 83.82 mm)
  Weight	10.5 oz (297.6 g), with batteries

• ES-100 Single Ear Speaker for UR-96BP Receiver

  Compatibility

  Compatible with TeachLogic UR-96BP Receiver

• BRC-75 Drop-In Charger for Bodypack and UR-96BP/UT96BP

  Compatibility	Compatible with TeachLogic Bodypack and UR-96BP/UT96BP
  Power	110V
  Charging Time	10-12 Hours
  Indicator Lights	Amber: Charging Green: Charged
  Dimensions	Not Specified by Manufacturer
  Weight	Not Specified by Manufacturer

• AA NiMH Rechargeable Batteries (2,450mAh, 2 Pack)

  Battery Type	2 x AA
  Battery Chemistry	NiMH
  Capacity (mAh)	2450 mAh

  Box Dimensions (LxWxH)	2.5 x 1.75 x 0.5"

• Lapel Microphone with 3.5mm Connector
