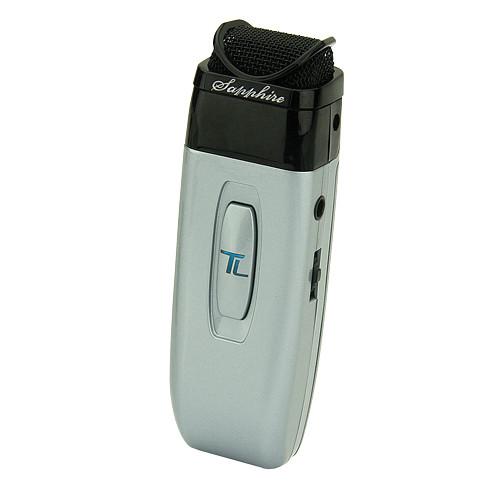

User Manual for TeachLogic Sapphire Transmitter with Microphone and Lithium-Ion Battery Click to enlarge the picture
Contents of the user manual for the TeachLogic Sapphire Transmitter with Microphone and
- Product category: Components & Accessories TeachLogic
- Brand: TeachLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TeachLogic Components & Accessories
|
User manual for the TeachLogic Sapphire Transmitter with Microphone and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TeachLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TeachLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TeachLogic product will considerably shorten its lifespan!
|
Product description TeachLogic's Sapphire Transmitter with Microphone and Lithium-Ion Battery is a lightweight classroom microphone and comes with a rechargeable lithium-ion battery. It can be worn with a lanyard or clipped directly to your neckline collar. It has high level output, reliable connectivity and great definition. With a built-in breath filter, the Sapphire can function as a pass-around hand microphone. With a tap on the power button, the microphone mutes for private conversation-tap again to restore to normal operation. The auxiliary input allows wireless playback of your iPod. A three-position slide switch provides selection of low, medium, or high microphone volume levels. - Long life lithium-ion battery
- Rechargeable via micro USB cable
- Battery level indicator, back light under power switch
- Momentary mute button, backlight blinks in mute mode
- Channel A or B selectable
- Three level microphone volume switch (low, medium, high)
- Low profile clip for mounting
- Wear with a lanyard or directly to neckline collar
In the Box TeachLogic Sapphire Transmitter with Microphone and Lithium-Ion Battery Rechargeable Lithium-Ion Battery Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic Sapphire Transmitter with Microphone and Lithium-Ion Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeachLogic IRT-55 Specs | Transmitter | Carrier: Infrared | | Transmission Frequency | 2.08 MHz and 2.54 MHz | | Channel | Channel A or B, Field Switchable | | Transmitting Diodes | 6 | | Modulation | FM Wide-Band | | Pilot Tone | Frequency: 32.768 KHz | | Peak Deviation | ± 25KHz | | Operating Range | 60' (18.28 m) line of sight, 1,500 ft² (139.35 m²) | | Indicator Lights | Blue: full
Purple: medium
Red: low
Flashing red: very low battery | | Battery | 3.7V, 620mAh Lithium-ion | | Battery Life | Approximately 8-9 Hours | | External Power | Charger: DC +5V, Micro USB Connector | | Transmission Angle | 180° Conical | | User Controls | Power switch (push): on/off
Mute switch (push): on/off
Microphone switch (3 position): + 6db, normal, - 3db
Auxiliary volume/gain: increase, decrease
Channel select: A or B, in battery compartment | | Auxiliary | External Input: 0.13" (3.5 mm) stereo line level | | Dimensions | 3 x 1.25 x 0.75" (7.62 x 3.17 x 1.9 cm) | | Weight | 1.4 oz (39.68 g) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 5.0 x 3.5 x 1.5" |
