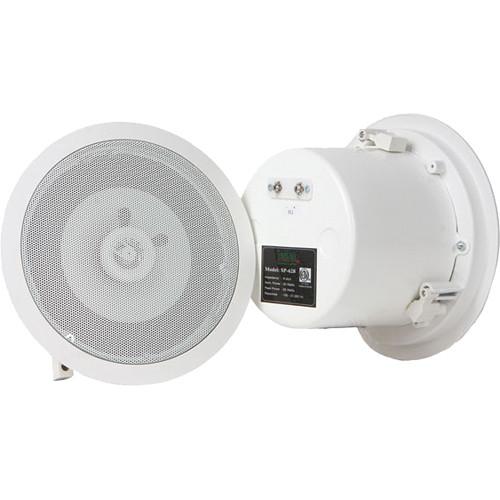

User Manual for TeachLogic SP-628 Ceiling Speaker, Coaxial, 8 ohm, with Metal Back Can and Tile Bridge Click to enlarge the picture
Contents of the user manual for the TeachLogic SP-628 Ceiling Speaker, Coaxial, 8
- Product category: Installed Speakers TeachLogic
- Brand: TeachLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TeachLogic Installed Speakers
|
User manual for the TeachLogic SP-628 Ceiling Speaker, Coaxial, 8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TeachLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TeachLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TeachLogic product will considerably shorten its lifespan!
|
Product description TeachLogic's SP-628 Ceiling Speaker, Coaxial, 8 ohm, with Metal Back Can and Tile Bridge is a full range compact coaxial ceiling speaker that provides low distortion and a smooth natural frequency response, making it great for articulate vocal clarity. The speaker has an integrated steel back can along with a 24" tile bridge which allows for quick and easy installation. The speaker is ETL Plenum rated and conforms to UL2043 standard. - Air sealed metal back can for an infinite baffle
- 6" cone driver with a 1" Mylar dome tweeter
In the Box TeachLogic SP-628 Ceiling Speaker, Coaxial, 8 ohm, with Metal Back Can and Tile Bridge Galvanized Steel Tile Bridge Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic SP-628 Ceiling Speaker, Coaxial, 8 ohm, with Metal Back Can and Tile Bridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeachLogic SP-628 Specs | Frequency Response | 80 Hz to 15 kHz, ± 6dB | | Power | 30 Watts Continuous | | Sensitivity | 89dB SPL (1W/1M) | | Impedance | 8Ω | | Crossover Frequency | 6 kHz | | Nominal Coverage Angle | 90 x 90° | | Driver | 5.25" (13.33 cm) Polymica/rubber
1" (2.54 cm) high efficient domed tweeter, neodymium | | Enclosure Material | Air sealed metal back can with infinite baffle | | Termination | Screw terminals for secure speaker wire connection | | Mounting | Three quick-mount clamps | | Dimensions (HxD) | 5.5 x 8" (13.97 x 20.32 cm) | | Weight | 5.12 lbs (2.32 kg)
Magnet: 10 oz (0.28 kg) | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 9.0 x 8.9 x 6.3" |
