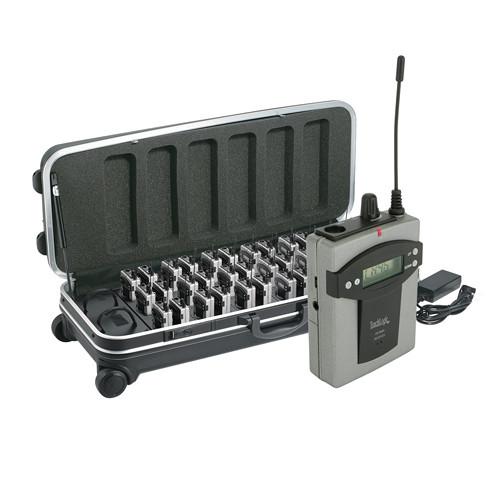

User Manual for TeachLogic TG-936 35 Receiver AirLink Tour Guide System Click to enlarge the picture
Contents of the user manual for the TeachLogic TG-936 35 Receiver AirLink Tour
- Product category: Assistive Listening Systems TeachLogic
- Brand: TeachLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TeachLogic Assistive Listening Systems
|
User manual for the TeachLogic TG-936 35 Receiver AirLink Tour contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TeachLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TeachLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TeachLogic product will considerably shorten its lifespan!
|
Product description The TG-936 35 Receiver AirLink Tour Guide System from TeachLogic includes UT-96BP Body-Pack Transmitter with a microphone, UR-96BP 35 Body-Pack Receivers with ES-100 Ear Speakers, BRC-736 36-Slot Drop-In Battery Charger, BR-2AA Rechargeable Duracell NiMH Batteries (36 sets), and LM-835 Lapel Microphone.
The UT-96BP Body-Pack Transmitter features 96 UHF selectable channels.
The UR-96BP 35 Body-Pack Receivers with ES-100 Ear Speakers are portable, battery-powered, UHF radio frequency receivers (96 channels selectable) with earphones and line level outputs. These are suitable for monitoring signal transmission or inserting line level signals into a sound system. These are also suitable for receiving wireless signals to insert into self-powered speakers. They can also be used for personal listening and guided tour systems. They are 100% compatible with TeachLogic RF transmitters, Titan, and AirLink systems.
The BRC-736 36-Slot Drop-In Battery Charger is designed for use with the transmitter and portable receiver.
The BR-2AA Rechargeable Duracell NiMH Batteries (36 sets) have high output capacity of 2650 mAh, long service life, and are trouble-free.
The LM-835 Lapel Microphone comes equipped with a 3.5mm connector. - LM-835 Lapel Microphone
-
- Less obtrusive
- Quality voice reproduction
In the Box TeachLogic TG-936 35 Receiver AirLink Tour Guide System UT-96BP Bodypack Radio Frequency Transmitter cezzwafcxbsbrzbayfvwtqzqdy UR-96BP UHF Personal Body-Pack RF Receiver BRC-736 AirLink 36-Slot Drop-In Battery Charger for Transmitter/Portable Receivers cezzwafcxbsbrzbayfvwtqzqdy BR-2AA Rechargeable Duracell NiMH Batteries (36 sets) LM-835 Lapel Microphone Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic TG-936 35 Receiver AirLink Tour Guide System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeachLogic TG-936 Specs | | | Element | LM-835 Lapel: Back electret-condenser | | Polar Pattern | Cardioid | | Characteristics | Directional: Uni-directional | | Frequency Response | 50 to 18,000 Hz | | Sensitivity | -64 dB / microbar | | Maximum SPL | 115 dB (1 kHz at maximum SPL) | | Dynamic Range | 82 dB (1 kHz at 1% THD) | | S/N Ratio | 61 dB (1 kHz at Pa) | | Impedance | 1400 Ω 30% (at 1000 Hz) | | Operating Voltage | 1.5 to 10 VDC (RL: 600 Ω) | | Connector | 3.5 mm phone, right-angle |
