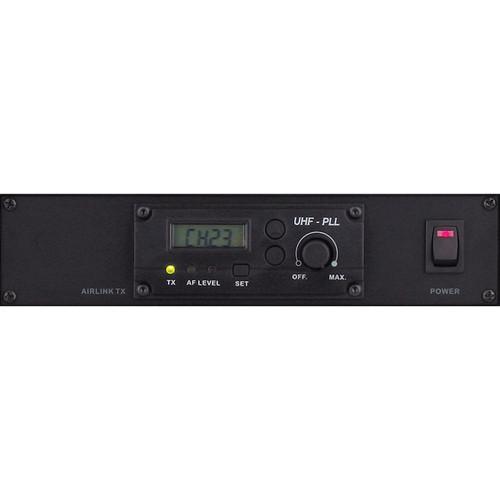

User Manual for TeachLogic TX-800 AirLink Wireless Transmitter Module for Titan Neo Companion PA Systems Click to enlarge the picture
Contents of the user manual for the TeachLogic TX-800 AirLink Wireless Transmitter Module
- Product category: Components & Accessories TeachLogic
- Brand: TeachLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TeachLogic Components & Accessories
|
User manual for the TeachLogic TX-800 AirLink Wireless Transmitter Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TeachLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TeachLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TeachLogic product will considerably shorten its lifespan!
|
Product description The TX-800 AirLink Wireless Transmitter Module for Titan Neo Companion PA Systems from TeachLogic is designed for large venues or audiences. It broadcasts a composite program signal to Companion Units equipped with a DR-800 Wire¬less Receiver. The Titan Neo Companion Systems can be located throughout the venue without the need for speaker cables. The TX-800 AirLink Wireless Transmitter will transmit all inputs, including the wireless microphones, CD player, and control panel inputs. It features gain control for controlling the wireless amplitude signal output to the powered companion system. The typical operating range is 300 to 500' (91.4 to 152.4m) line of sight. - 96 selectable UHF channels
- Transmission frequency range of 640 to 664 MHz
- LCD for channel number or frequency display
- LED indicators for RF being transmitted, audio input present, and clipping
- Master gain control for composite output
In the Box TeachLogic TX-800 AirLink Wireless Transmitter Module for Titan Neo Companion PA Systems Limited 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic TX-800 AirLink Wireless Transmitter Module for Titan Neo Companion PA Systems in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeachLogic TX-800 Specs | Frequency Bands | Operating: 640 to 664 MHz | | Selectable Channels | 96 pre-programmed | | Maximum Deviation | 80 kHz, with level limiting | | Dynamic Range | 110 dB | | THD | >0.5% | | Pre-Emphasis | 50 μs | | De-Emphasis | 50 μs | | Sensitivity | 4 μV @ 30 dB SINAD | | Squelch | Tone key and noise lock | | Frequency Response | 50 Hz, -17 kHz, ±3 dB | | RF Output Power | 10 or 30 mW | | Operating Range | 300.0 to 500.0' (91.4 to 152.4 m) | | Power Requirements | 12 to 15 VDC, 1 A | | Dimension (D x W x H) | 7.50 x 1.18 x 4.00" (190.50 x 29.97 x 101.60 mm) | | Weight | 10.0 oz (283.4 g) |
