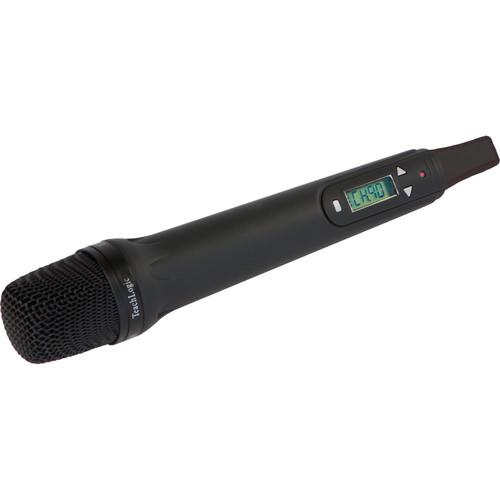

User Manual for TeachLogic UT-96HH Handheld Radio Frequency Microphone Transmitter Click to enlarge the picture
Contents of the user manual for the TeachLogic UT-96HH Handheld Radio Frequency Microphone
- Product category: Components & Accessories TeachLogic
- Brand: TeachLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TeachLogic Components & Accessories
|
User manual for the TeachLogic UT-96HH Handheld Radio Frequency Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TeachLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TeachLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TeachLogic product will considerably shorten its lifespan!
|
Product description The UT-96HH Handheld Radio Frequency Microphone/Transmitter from TeachLogic is designed for presenters or interactive participants. It features 96 selectable UHF channels. Its light weight and ergonomic design render user comfort. The internal shock mount features very low handling noise. The unidirectional condenser microphone exhibits good vocal quality and extra sensitivity. The built-in windscreen prevents breath pops and wind noise. The microphone comes with three assorted color end caps for easy identification. - 96 selectable UHF channels
- Push-button channel selection
- LCD readout for selected channel number, frequency, and battery condition
- High/low/mute sensitivity and on/off switch
- Condenser microphone element
- Unidirectional pick-up pattern
- Three assorted color end caps
- Drop-in charger compatible
- Requires two AA-size batteries (sold separately)
In the Box TeachLogic UT-96HH Handheld Radio Frequency Microphone/Transmitter 3 x Assorted Color End Cap Limited 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the TeachLogic UT-96HH Handheld Radio Frequency Microphone Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeachLogic UT-96HH Specs | Frequency Bands | Operating: 640 to 664 MHz | | Selectable Channels | 96 pre-programmed | | Maximum Deviation | 80 kHz, with level limiting | | Dynamic Range | >80 dB | | THD | <1% | | Pre-Emphasis | <50 μs | | De-Emphasis | <50 μs | | Capsule | Microphone: Condenser | | RF Output Power | 10 mW | | Volume | Audio: High / low / mute | | Operating Life | On Full Charge
NiMH Battery: 11 hours
Alkaline Battery: 14 hours | | Dimensions | Top Diameter: 1.8" (45.7 mm)
Handle Diameter: 1.3" (33.0 mm)
Length: 10.5" (266.7 mm) | | Weight | 10.5 oz (297.6 g) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 11.2 x 2.4 x 2.2" |
