User Manual for TEAM BLACKSHEEP Dominator 5.8 GHz 40-Channel Receiver and 5dBi Patch Antenna Click to enlarge the picture
Contents of the user manual for the TEAM BLACKSHEEP Dominator 5.8 GHz 40-Channel
- Product category: TEAM BLACKSHEEP Accessories TEAM BLACKSHEEP
- Brand: TEAM BLACKSHEEP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TEAM BLACKSHEEP TEAM BLACKSHEEP Accessories
 |
User manual for the TEAM BLACKSHEEP Dominator 5.8 GHz 40-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TEAM BLACKSHEEP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TEAM BLACKSHEEP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TEAM BLACKSHEEP product will considerably shorten its lifespan!
|

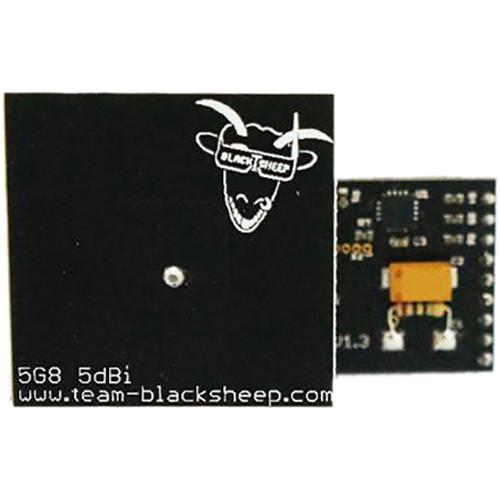

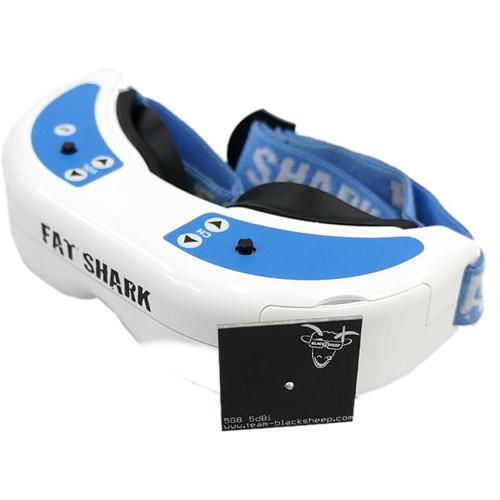

Product description Take to the skies with the Team Black Sheep Dominator 5.8 GHz 40-Channel Receiver Module. This receiver was designed specifically for Fatshark Dominator, Dominator V2, and Dominator HD, enabling you to toggle channels by using the Fatshark button. It's compatible with all BOSCAM A/V transmitters, and offers limited compatibility with Airwave transmitters. The Dominator receiver can be installed into Fatshark Attitude goggles, and a 5.8 GHz, 5 dBi RHCP patch antenna is included. - 40 channels (five bands with eight channels each)
- Serial input protocol to access functions
- Works with all BOSCAM A/V transmitters (200mW, 400mW, and 500mW)
- Partial support with Airwave transmitters (tested with the ImmersionRC 600mW), with limited range and transmission picture quality
- Toggles channels using the Fatshark button
UPC: 741587423775 In the Box TEAM BLACKSHEEP Dominator 5.8 GHz 40-Channel Receiver and 5dBi Patch Antenna 5.8 GHz 5 dBi RHCP Patch Antenna SMA-Male, RPSMA-Female Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TEAM BLACKSHEEP Dominator 5.8 GHz 40-Channel Receiver and 5dBi Patch Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTEAM BLACKSHEEP A-RX58-DOMIN Specs | Channels | 40 (5640 to 5950 MHz) | | Selector Controls | Toggle bands with button on board, 3-pin dipswitch for channels | | Sensitivity | -90 dBm | | Operating Voltage | 3.5 to 5 V | | Connector | RP-SMA female | | Compliance | FCC | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions (H x W) | 0.98 x 1.65" (25 x 42 mm) | | Weight | 0.38 oz (11 g)
With Antenna: 0.7 oz (20.5 g) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 3.4 x 3.0 x 2.2" |
