User Manual for TEAM BLACKSHEEP Unify Pro 5.8 GHz Video Transmitter Click to enlarge the picture
Contents of the user manual for the TEAM BLACKSHEEP Unify Pro 5.8 GHz
- Product category: TEAM BLACKSHEEP Accessories TEAM BLACKSHEEP
- Brand: TEAM BLACKSHEEP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TEAM BLACKSHEEP TEAM BLACKSHEEP Accessories
 |
User manual for the TEAM BLACKSHEEP Unify Pro 5.8 GHz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TEAM BLACKSHEEP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TEAM BLACKSHEEP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TEAM BLACKSHEEP product will considerably shorten its lifespan!
|

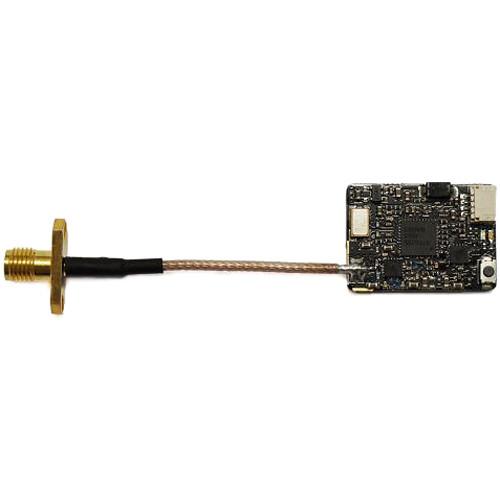

Product description Build a winning rig with the TEAM BLACKSHEEP Unify Pro 5.8 GHz Video Transmitter. This transmitter offers 25 to 800mW of output power and is capable of racing against up to 15 other drones. CleanSwitch technology minimizes interference while powering on and changing channels.
The transmitter is also imbued with SmartAudio V2, which provides UART and I2C control for the entire transmitter. It enables channel changing via OSD, Crossfire-equipped smart device, or TBS Crossfire with TBS Tango or OpenTX radio.
PitMode reduces output power to a minimum and moves to unused frequencies, so you can power up your drone for testing and view video without interrupting active channels. In addition, this transmitter is compatible with Powercube and Core Pro. UPC: 741587428022 In the Box TEAM BLACKSHEEP Unify Pro 5.8 GHz Video Transmitter 5V Video Transmitter Pigtail Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TEAM BLACKSHEEP Unify Pro 5.8 GHz Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

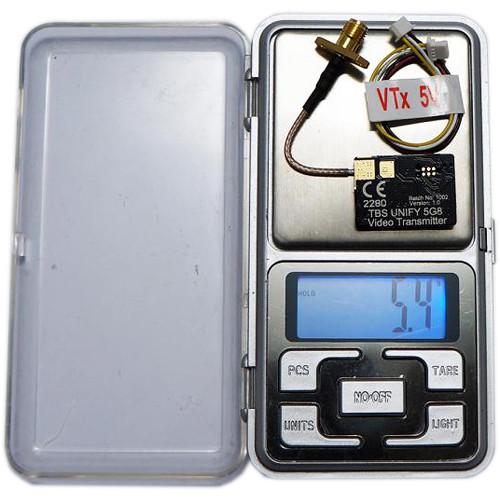

Technical parametersTEAM BLACKSHEEP A-TX58-UPRO Specs | Operating Voltage | 4.5 to 5.5 V | | Supply Current | 600 mA | | Audio Carrier Frequency Setting | 6.5 MHz | | Video Input Impedance | 75 Ohms | | Antenna Connector | RP-SMA female socket with screw mounting holes | | Video Format | NTSC/PAL | | Output Power | 13 dBm (25 mW), 23 dBm (200 mW), 27 dBm (500 mW), 29 dBm (800 mW) | | Certifications | CE | | Dimensions | 0.66 x 0.98 x 0.15" (17 x 25 x 4 mm) | | Weight | With SMA and Without Antenna: 0.17 oz (5 g) | | | | Package Weight | 0.04 lb | | Box Dimensions (LxWxH) | 3.4 x 3.4 x 0.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
