User Manual for TECH 21 Bass Fly Rig Multi-Effects Board Click to enlarge the picture
Contents of the user manual for the TECH 21 Bass Fly Rig Multi-Effects
- Product category: Effects Pedals TECH 21
- Brand: TECH 21
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TECH 21 Effects Pedals
 |
User manual for the TECH 21 Bass Fly Rig Multi-Effects contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TECH 21 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TECH 21 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TECH 21 product will considerably shorten its lifespan!
|

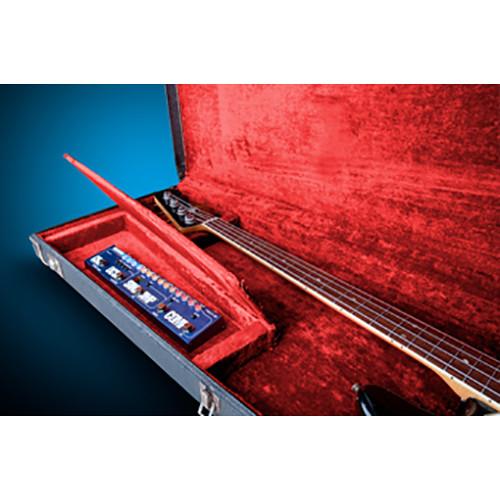

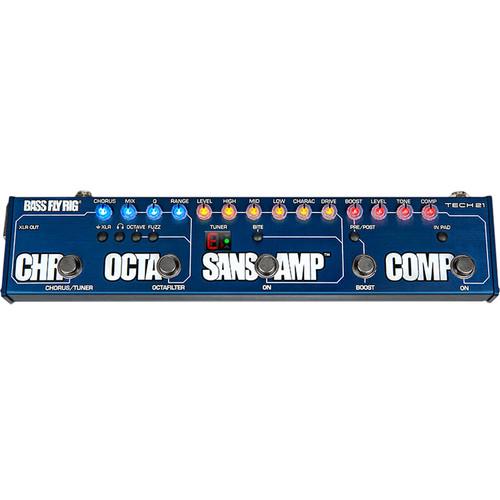

Product description Shrink your bass rig but not your tone with the Tech 21 Bass Fly Rig. Small enough to fit inside an instrument case or large gig bag, the Bass Fly Rig was designed with air travel and backline gigs in mind. However, it can easily become your main rig, as it features high-quality effects and the amplifier emulation that Tech 21 is known for. You can use the Bass Fly Rig in front of an amp or directly into a PA using either the low-impedance 1/4" or XLR outputs. Both outputs can drive long cables without high-frequency loss. The input can accept passive and active pickups with a switchable input pad to maintain a clean signal. Each effect has its own footswitch, so no programming or advanced patch navigation is needed. Just set it up and you're ready to go. The Bass Fly Rig also has an integrated tuner which silences the output. Effects Sections - SansAmp Tube Amplifier Emulator
- What would this unit be without SansAmp emulation? The character control can take the sound from vintage to modern, while interacting with the overdrive control to create different distorted tones based on the desired character. More control is provided by an active 3-band EQ and a bite switch.
- "OCTAFILTER" Octave + Fuzz
- The OCTAFILTER built into this Fly Rig has an entire palette of expression unto itself. The controls interact so that you can get dynamically filtered clean, fuzz, and octave, as well as octave and fuzz together. For example, when the Q control is set to the minimum, the Range control becomes a high-cut tone filter for different versions of clean, fuzz, octave, and octave and fuzz together. You can then blend any of these combinations with your direct signal via the Mix control, evoking fuzzy tones to funky Minimoog-style synth sounds.
- "CHR" Bass Chorus
- Derived from the Tech 21 Bass Boost Chorus pedal, stomping on this footswitch creates choral voicings with a slight delay between, adding thickness and space. A chromatic tuner is integrated within the CHR section. Simply hold down the CHR footswitch to engage the Tuner, which simultaneously mutes the signal path.
- "COMP" FET Compressor
- This classic FET compression is warm, transparent, and musical. When engaged, this old-school style compressor evens out your playing dynamics for a smooth and consistent sound.
- "BOOST" Pre/Post Boost
- Switchable Pre/Post Boost. Pre-Boost mode interacts with the SansAmp section to beef up drive and distortion. Post-Boost mode increases the overall volume to punch up fills and solos.
Other Features - Headphone button switches the 1/4" output into headphone mode
- Input Pad for active basses

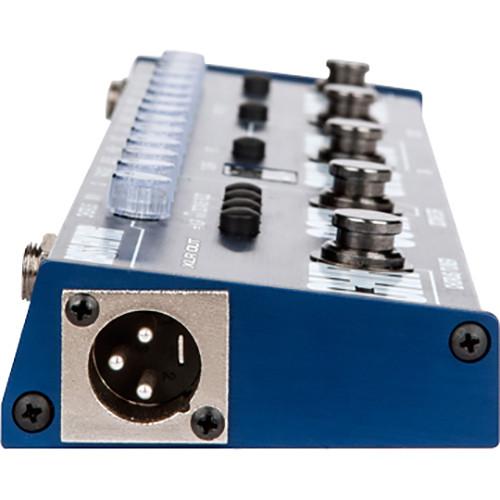

- XLR output with ground connect
- 1/4" low-impedance output
- Rugged, all-metal housing
- Metal footswitches and jacks
- Silent switching, custom footswitch actuators
- Utilizes included 9V, 200mA DC power supply
UPC: 837088002233 In the Box TECH 21 Bass Fly Rig Multi-Effects Board 9V DC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TECH 21 Bass Fly Rig Multi-Effects Board in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

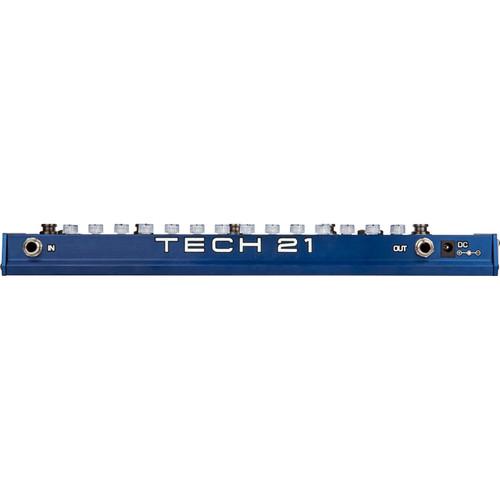

Technical parametersTECH 21 FR-BASS Specs | Input | 1 x 1/4" TS, 1 MOhm, hi-z instrument | | Output | 1 x 1/4" TS, 1 kOhm, low-Z instrument
1 x XLR | | Power | 9 V, 200 mA via included DC power supply | | Dimensions | 12.5 x 2.5 x 1.25" / 318 x 64 x 32 mm | | Weight | 1.3 lb / 587 g | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 15.0 x 3.8 x 2.3" |
