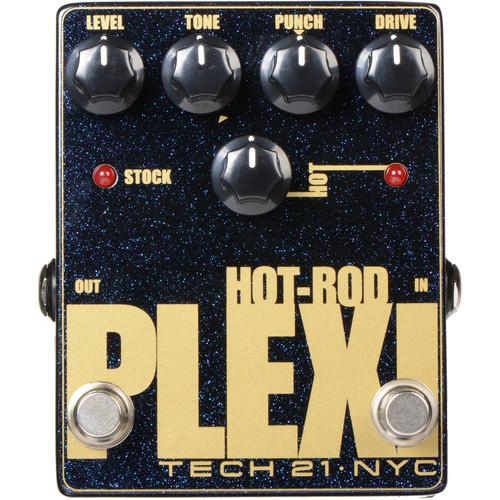

User Manual for TECH 21 Hot-Rod Plexi Distortion Pedal Click to enlarge the picture
Contents of the user manual for the TECH 21 Hot-Rod Plexi Distortion Pedal
- Product category: Effects Pedals TECH 21
- Brand: TECH 21
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TECH 21 Effects Pedals
 |
User manual for the TECH 21 Hot-Rod Plexi Distortion Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TECH 21 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TECH 21 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TECH 21 product will considerably shorten its lifespan!
|
Product description Inspired by the coveted vintage tube amplifiers with the same nickname, now you can add those highly sought-after tones to your own rig, without the back-breaking weight of a full stack or the face-melting volume levels required to conjure up the magical tones of the original amps. You can easily generate those organic vintage and hot-rodded tube amp tones and add them to your own arsenal with the Hot-Rod Plexi Pedal from Tech 21. Place the pedal in front of any clean or overdriven amp, whether it's tube or solid state, vintage or modern, and you can instantly alter its personality, giving it the tonal characteristics of a stock '68 Plexi or a hot-rodded monster with more gain. Featuring dual footswitches, the left footswitch activates the pedal's "Stock" mode for the sound of a stock '68 Plexi, and also functions to bypass the pedal entirely. Once the Stock mode has been activated, the right footswitch will engage the "Hot" mode, which adds an extra stage of preamp gain, as if you hot-rodded the amp with an additional 12AX7 tube for up to 28 dB of additional preamp boost and higher gain levels that are regulated by a separate Level control. Also included is the "Punch" control, which acts as a modified mid frequency control. The Hot-Rod Plexi pedal can also be used with Tech 21's SansAmp line of preamps and pedals, minimizing valuable real estate on stage and in the studio. Controls - Level
- Adjusts the output level of the unit
- Tone
- A musical, specialized low pass filter that shifts the high cut from 10 to 1 kHz
- Punch
- A wide-band midrange EQ adjustment at 500 Hz. Gradually changes its bandwidth with the amount of cut or boost. Most tube amps have passive tone controls that naturally scoop, which is good for clean sounds. However, for dirty sounds and scorching leads, you need to have a balance for the midrange, which you can dial in with the Punch control
- Drive
- Adjusts the overall amount of gain and overdrive, similar to when the output section of a tube amp is being pushed
- Hot
- Activated via its own footswitch, you can kick in up to 28 dB of preamp boost with the Hot control, which functions like an extra stage of gain with an additional 12AX7 preamp tube. The range allows you to go from a state of mild overdrive to insane gain
Modes - Stock / Bypass
- The left footswitch engages and disengages the pedal, as indicated by the corresponding LED. In Stock mode, it's as if you have the signal path from the input jack to the speaker jack (without the speaker emulation) of a stock '68 Plexi
- Hot
- The right footswitch engages and disengages the Hot function. The pedal must be activated with the Stock LED lit in order to add the extra gain and boost provided by the Hot mode
UPC: 837088002059 In the Box TECH 21 Hot-Rod Plexi Distortion Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TECH 21 Hot-Rod Plexi Distortion Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTECH 21 PLEXI Specs | Input | 1 x 1/4" (6.3 mm) TS High-Z Instrument level, 1 MOhm
Input Level: approximately -10 dBm, 250 mV | | Output | 1 x 1/4" (6.3 mm) TS Low-Z, 1 kOhm | | Power | 9 VDC via 9 V battery or DC power supply | | Dimensions | 3.75 x 4.75 x 2.0" / 95 x 121 x 51 mm | | Weight | 12 oz / 340 g | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 5.8 x 4.75 x 2.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
