TECH 21 Q Strip EQ Pedal

Search your instruction manual in PDF to download

User Manual for TECH 21 Q Strip EQ Pedal and DI Box for Instruments

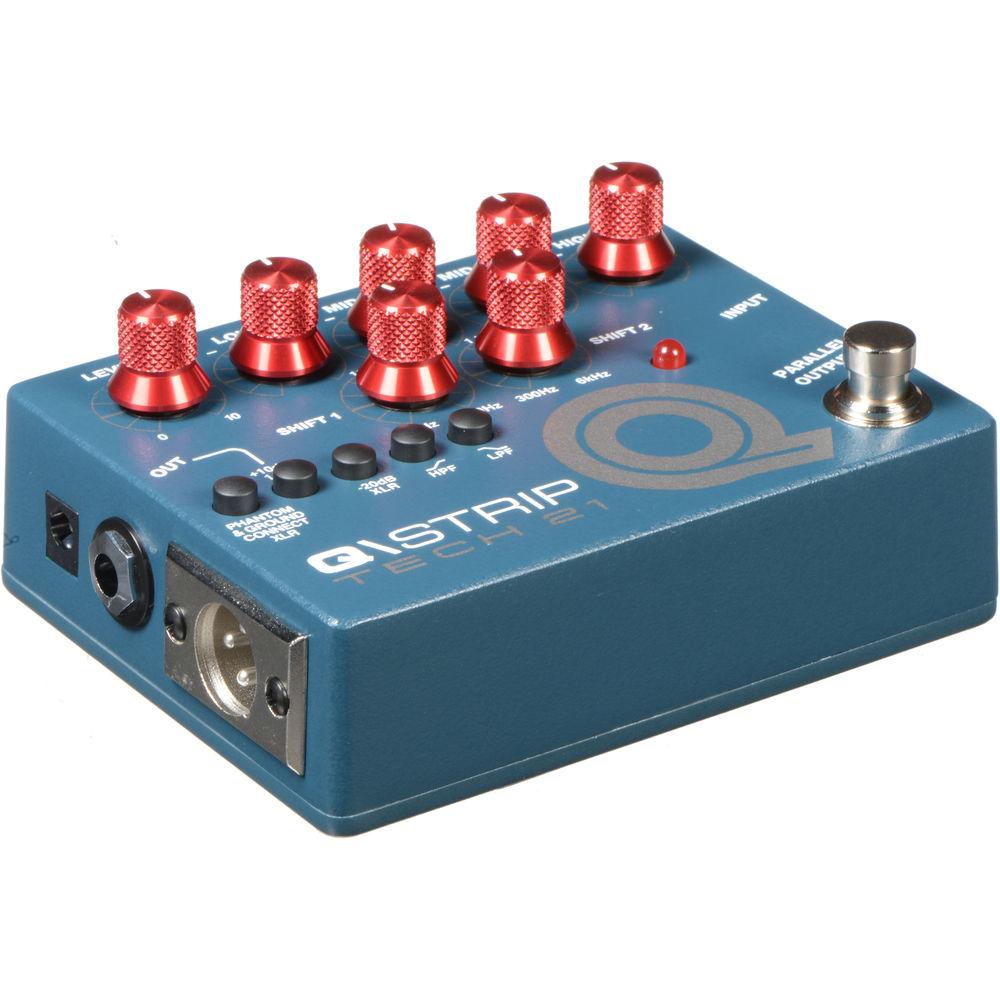

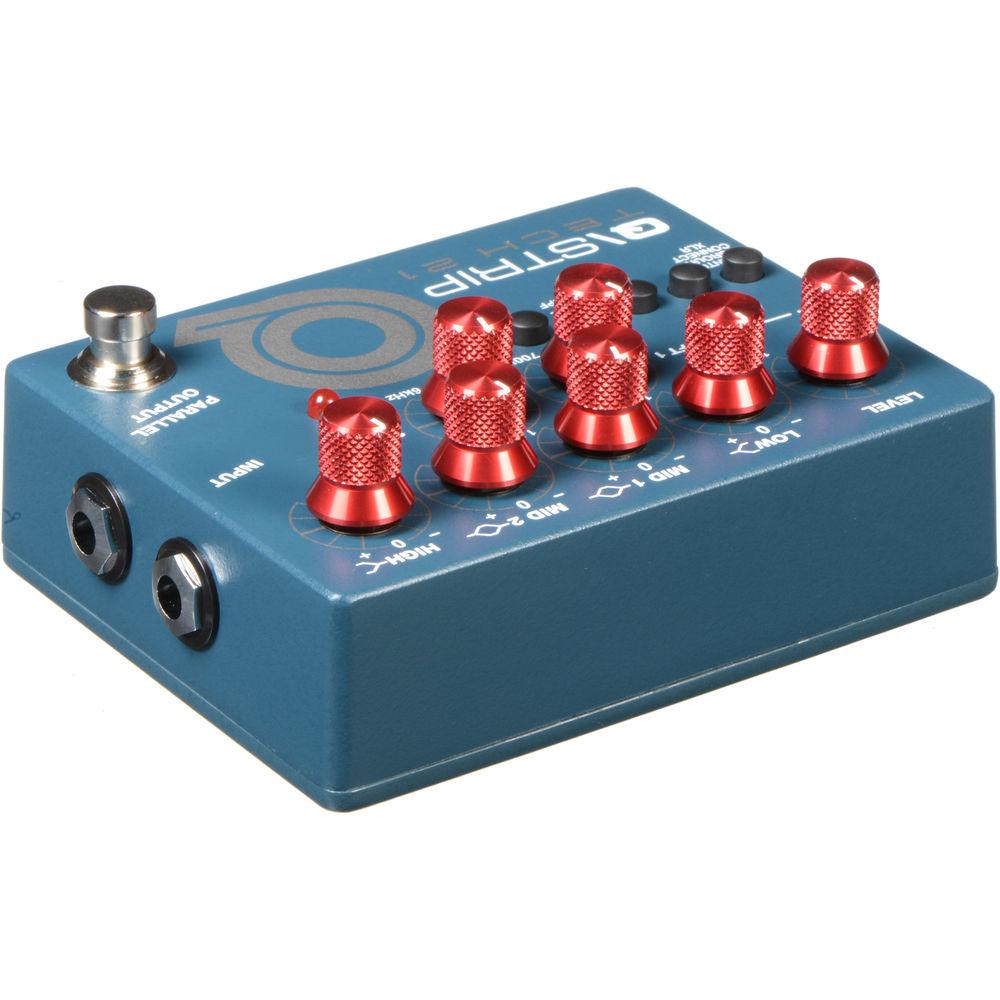

Click to enlarge the picture
TECH 21 Q Strip EQ Pedal and DI Box for Instruments Contents of the user manual for the TECH 21 Q Strip EQ Pedal
  • Product category: Effects Pedals TECH 21
  • Brand: TECH 21
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for TECH 21 Effects Pedals

TECH 21 Q Strip EQ Pedal and DI Box for Instruments TECH 21 Q Strip EQ Pedal and DI Box for Instruments
User manual for the TECH 21 Q Strip EQ Pedal contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any TECH 21 product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official TECH 21 user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a TECH 21 product will considerably shorten its lifespan!



Product description

Strip Away Unwanted Frequencies with the Q/Strip DI for Electric Guitars Read More zfrbadauxqdf Designed to give you vintage-console tone in a stompbox enclosure, the Tech 21 Q/Strip is a DI pedal putting many EQ selectors at your disposal. The unit gives you two parametric midrange bands with selectable midrange frequency knobs, as well as knobs to instantiate broad boosts or cuts in the highs and lows. Also included are high-pass and low-pass filters for cutting out unwanted rumble and undesired high-end respectively.

The pedal uses 100% analog MOSFET circuitry to achieve its warm, larger-than-life tones, and indeed, can be used to recreate the frequency curves of different speaker cabinets, making the pedal especially useful as a DI which can allow you to bypass an amplifier onstage and go straight into the house's PA in live scenarios—even while you're using your favorite stompbox distortions, overdrives, effects, and more. With a 1/4" output, a 1/4" parallel output, and an XLR out, you have many options when it comes to routing yourself. With a versatile 1/4" input stage, you can plug in both high- and low-impedance instruments.
    Features at a Glance
    • High-pass filter for cutting unmusical rumble
    • Low-pass filter for rolling off undesirable high frequencies
    • EQ can recreate the curves of speaker cabinets to facilitate direct connection to the house in live scenarios
    • Input works equally well with high- and low-impedance sources
    • Parallel 1/4" output, quite handy for studio use
    • +10 dB pad on 1/4" output, -20 dB pad on XLR output
    • Operable via 9V battery (available separately), external power supply (likewise) and phantom power (through XLR jack)
    • Smooth-action actuators
    • All-metal housing
UPC: 837088002325 In the Box TECH 21 Q/Strip EQ Pedal and DI Box for Instruments
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the TECH 21 Q Strip EQ Pedal and DI Box for Instruments in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    TECH 21 QST-R Specs

    Controls Level knob
    Low knob
    Mid 1 knob
    Mid 2 knob
    High knob
    Shift 1 knob
    Shift 2 knob
    Phantom power & ground connect button
    +10 dB pad button for 1/4" output
    -20 dB pad button for XLR output
    High-pass filter button
    Low-pass filter button
    Bypass footswitch
    Input Connections 1 x 1/4" instrument input
    Output Connectors 1 x 1/4" instrument output
    1 x 1/4" parallel output
    1 x XLR output
    Power Operable via phantom power, standard 9 V alkaline battery, or optional power supply
    Power Supply Tech 21 Model DC4 (available separately)
    Dimensions & Weight Details Not specified by manufacturer
    Package Weight 1.2 lb
    Box Dimensions (LxWxH) 5.6 x 4.7 x 2.3"
