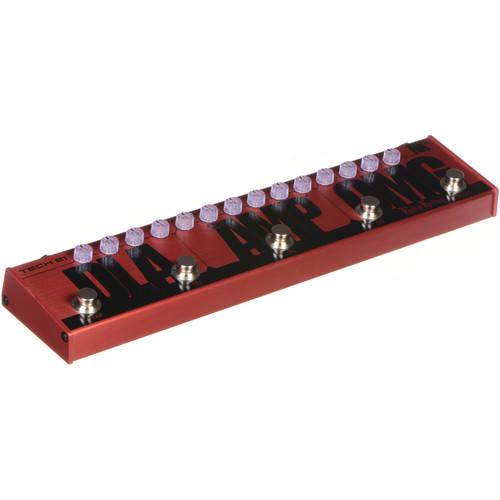

User Manual for TECH 21 RK5 Richie Kotzen Signature Fly Rig Guitar Multi-Effects Board Click to enlarge the picture
Contents of the user manual for the TECH 21 RK5 Richie Kotzen Signature
- Product category: Effects Pedals TECH 21
- Brand: TECH 21
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TECH 21 Effects Pedals
|
User manual for the TECH 21 RK5 Richie Kotzen Signature contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TECH 21 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TECH 21 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TECH 21 product will considerably shorten its lifespan!
|
Product description Developed in close collaboration with Richie Kotzen, the Tech 21 RK5 Richie Kotzen Signature Fly Rig is not just a rehash of the original Tech 21 Fly Rig 5 with a splash of red paint. Coming in at shorter than 12" in length and weighing around 1.2 lb, the RK5 is used by Richie Kotzen for getting his signature tones on the go with minimal setup and teardown time.Instead of the Plexi Drive of the original, the RK5 has Richie's signature OMG overdrive for red-hot distortion tones when combined with the onboard SansAmp tube amplifier emulation or an actual live amp. Activating the boost switch kicks in up to 21dB of extra preamp gain to further push your tone into sustaining overdrive.Aside from being quick to set up, customizing and tweaking your tones is a simple process. No need to navigate banks and menus, just twist the knobs on the front panel. Using the built-in speaker emulation the RK5 can be used in front of a guitar amplifier or by itself going direct to a PA system for a minimalist setup. So whether you have your own amp or a backline provided for you, the Fly Rig will be able to deliver the goods. Effects Sections - SansAmp Tube Amplifier Emulator
- This on-board emulation has been optimized for lush, chiming clean tones and has a Drive control to add just the right amount of gain from warm break-up to snarling grind, with a flexible 3-band EQ. LOW is tuned to ±12 dB @ 120 Hz, MID is tuned to ±12 dB @ 500 Hz, and HIGH is tuned to ±12 dB @ 3.3 kHz.
- Reverb
- The adjustable Reverb is included in the SansAmp section. It is based on the Boost RVB pedal to create the rich ambiance of a vintage spring reverb without clattering pings, canyons of doom, or other annoying artifacts.
- "OMG" Overdrive
- Based upon the Richie Kotzen Signature OMG pedal, this section provides a wide range of overdrive, from clean to aggressive. You can add personality to a clean amp or use it for extra punch with a dirty amp tone. It includes controls for Level, Tone, and Drive.
- "Hot" Mode Boost
- If the OMG distortion still isn't enough, the Fly Rig can be kicked into "Hot" mode with up to 21dB of pre-amp gain. The "Hot" footswitch operates independently to boost any of the Fly Rig sections whenever you feel the urge to punch it up.
- "DLA" Delay
- The integrated delay sound is based upon the Boost DLA pedal. It is voiced to give you the sounds of a vintage tape echo and features Level, Time, Repeats, and Drift, which adds a random element to the modulation for authentic textures. A dedicated Tap Tempo switch makes it super simple to just tap in the delay tempo you want during your performance.
Other Features - All analog signal path; reverb and delay are mixed in parallel
- Metal footswitches and jacks.
- 1/4-inch high-impedance input and low-impedance output.
- Silent-switching, custom footswitch actuators.
- Utilizes included "auto-switching" 12 VDC power supply. Self-adjusts to 100V-240V. It can be used anywhere in the world with the proper plug/travel adapter for the host country.
- Includes 4 knob grippers, installed by default on each Level control. Additional knob grippers are available separately in packs of 10.
UPC: 837088002127 In the Box TECH 21 RK5 Richie Kotzen Signature Fly Rig Guitar Multi-Effects Board 12 VDC Auto-Switching Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TECH 21 RK5 Richie Kotzen Signature Fly Rig Guitar Multi-Effects Board in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTECH 21 RK5 Specs | Input | 1 x 1/4" TS, 1 MOhm, hi-z instrument | | Output | 1 x 1/4" TS, 1 kOhm, low-Z instrument | | Power | 12 VDC via included power supply | | Dimensions | 11.5 x 2.5 x 1.25" / 292 x 64 x 32 mm | | Weight | 1.2 lb / 527 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 15.0 x 3.8 x 2.3" |
